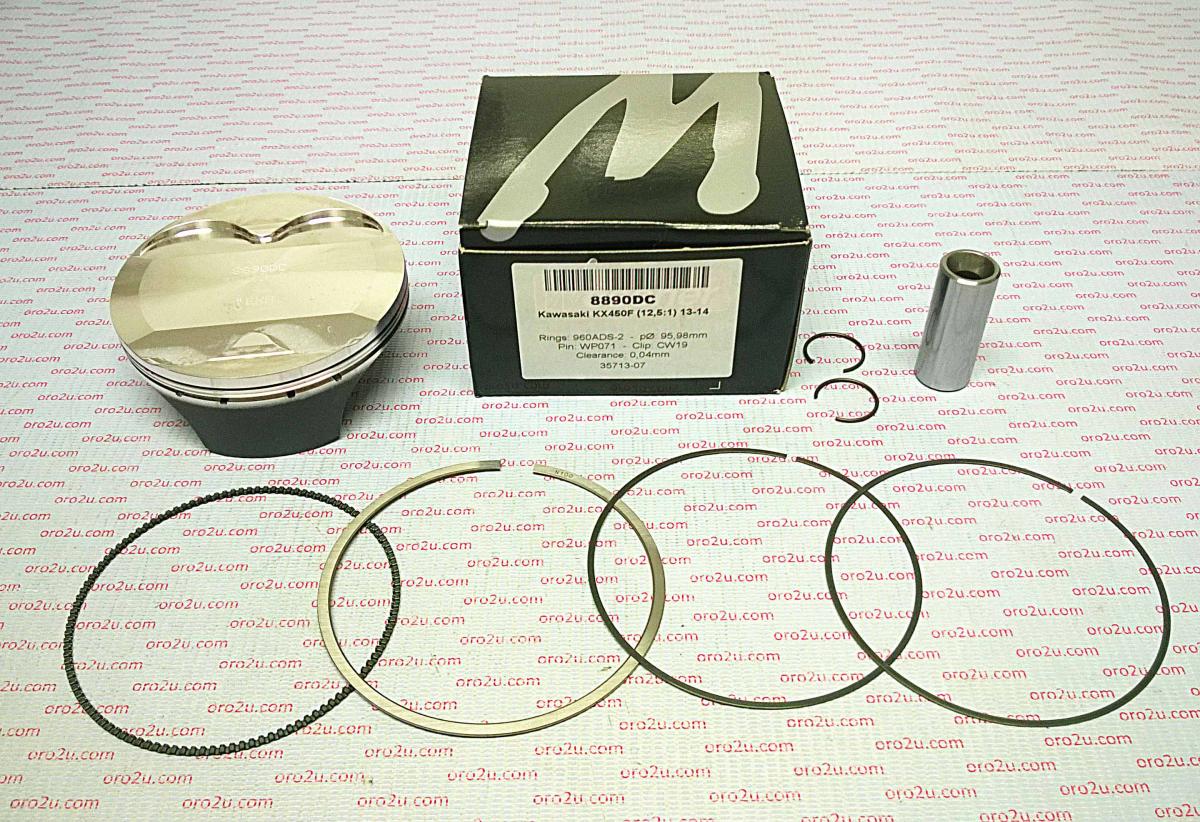

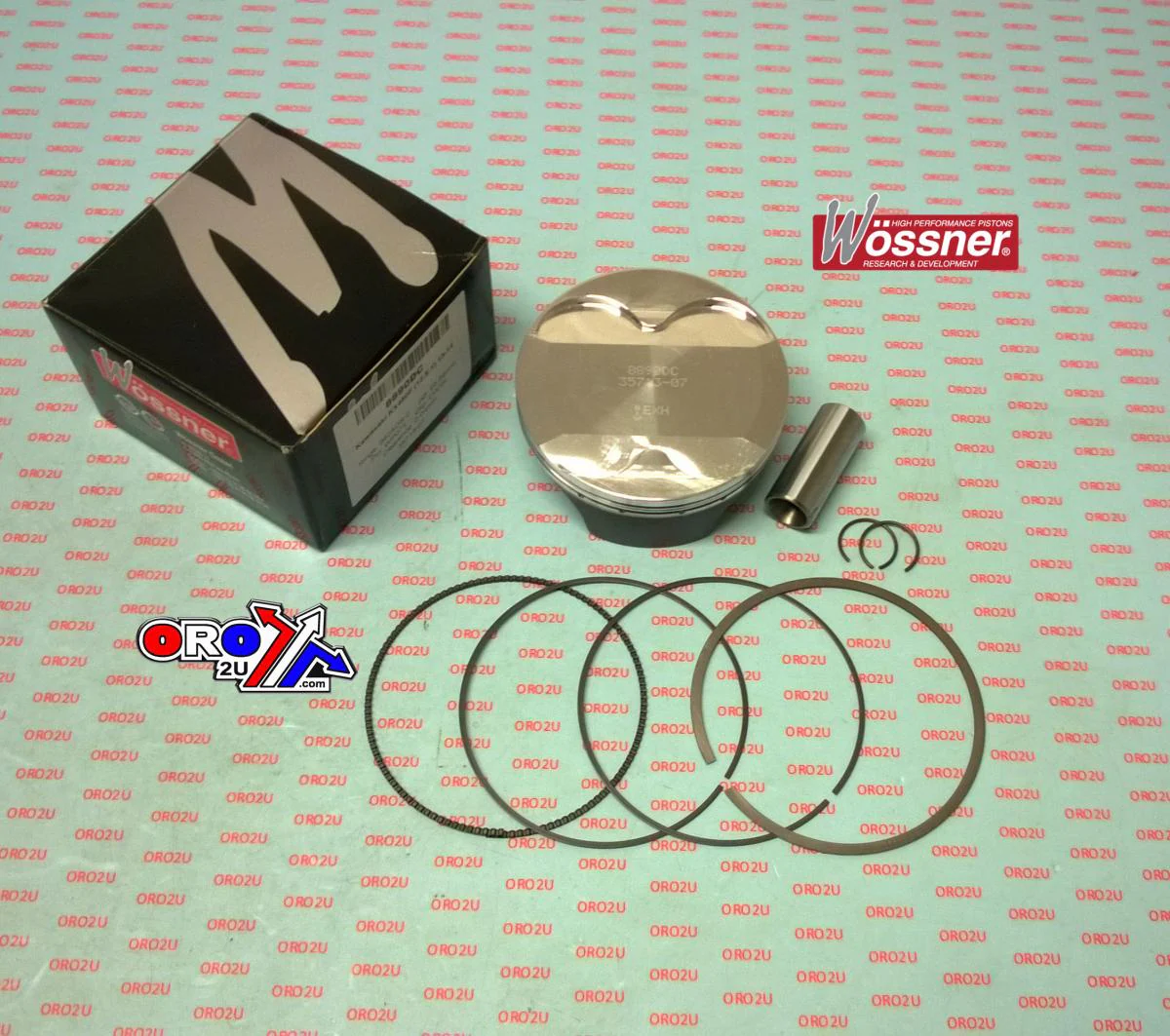

This Wossner forged piston kit features a 96.01mm bore size (95.97mm actual), providing a +0.01mm oversize fitment for Kawasaki KX450F models from 2013 to 2014. Engineered in Germany, the piston includes a high-performance elliptical profile for even thrust load distribution and efficient heat transfer. It matches OEM compression specifications and is designed for durability and consistent performance under demanding conditions.

Features

•


  Forged piston with +0.01mm oversize specification for enhanced precision





•


  Elliptical design ensures uniform load distribution during thermal expansion





•


  Optimised for efficient heat transfer from combustion chamber to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 96.01mm (actual 95.97mm)





•


  Displacement: 449 cm³





•


  Stroke: 62.10 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): OEM





•


  Compression Ratio (OEM): 12.50:1





•


  Dome Volume: +1.00 cm³





•


  Compression Height: 23.70 mm





•


  Lock Part Number: CW19





•


  Pin Part Number: WP071





•


  Ring Set Part Number: 960ADS-2





•


  Rod Part Number: P4020




Cross-Reference OEM Part Numbers

•


  56-W965.B.WO




Vehicle Fitments

•


  2013 Kawasaki KX450F





•


  2014 Kawasaki KX450F
