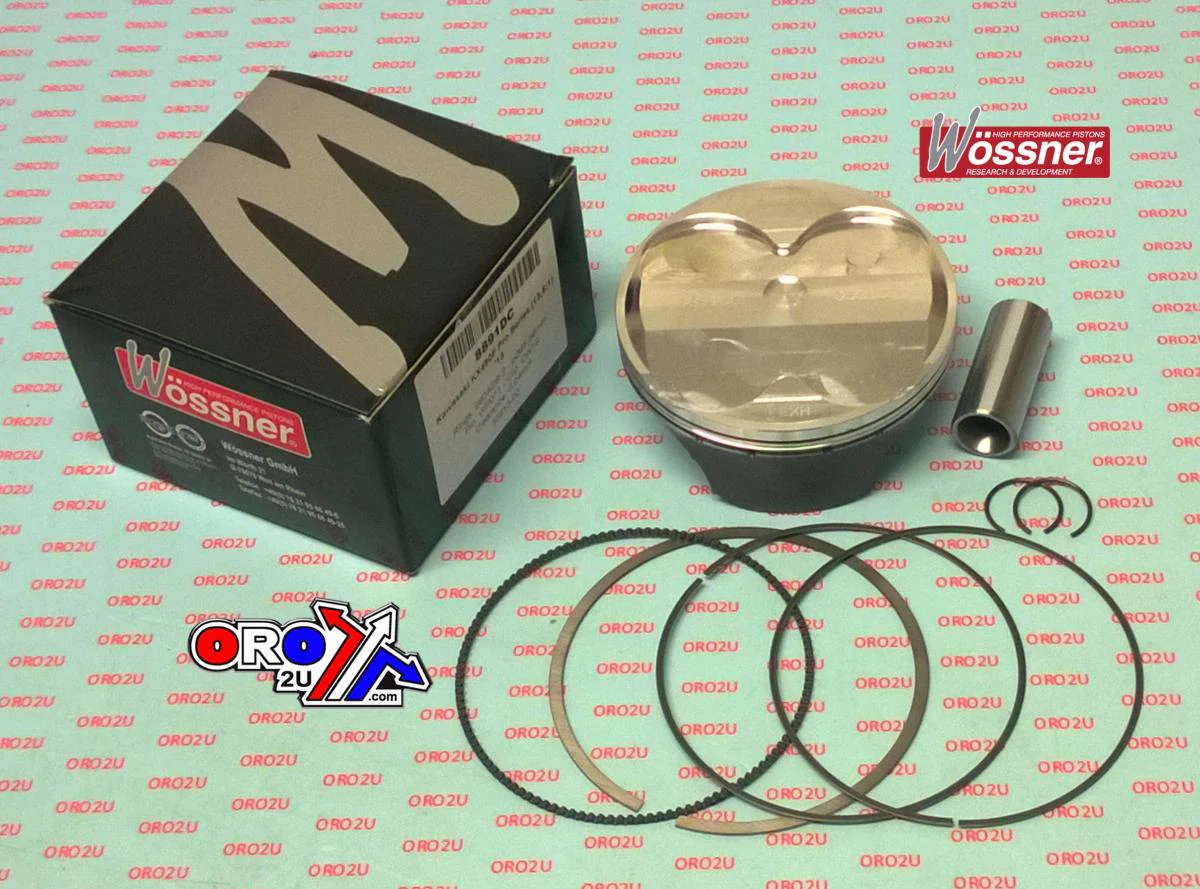

This Wossner forged high-compression piston kit features a 96.01mm bore size (95.97mm actual), providing a +0.01mm oversize fitment for Kawasaki KX450F models from 2013 to 2014. Manufactured in Germany, the piston incorporates a high-compression dome and an elliptical design to promote even load distribution and efficient heat transfer. Built for high-performance applications, it delivers increased compression and engine responsiveness while maintaining durability.

Features

•


  Forged high-compression piston with +0.01mm oversize specification





•


  Elliptical profile ensures uniform pressure distribution during thermal expansion





•


  Designed for superior combustion heat transfer and engine reliability





•


  Manufactured in Germany




Specifications

•


  Bore Size: 96.01mm (actual 95.97mm)





•


  Displacement: 449 cm³





•


  Stroke: 62.10 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 13.50:1





•


  Compression Ratio (OEM): 12.50:1





•


  Dome Volume: +4.20 cm³





•


  Compression Height: 23.70 mm





•


  Lock Part Number: CW19





•


  Pin Part Number: WP071





•


  Ring Set Part Number: 960ADS-2





•


  Rod Part Number: P4020




Cross-Reference OEM Part Numbers

•


  56-W966.B.WO




Vehicle Fitments

•


  2013 Kawasaki KX450F





•


  2014 Kawasaki KX450F
