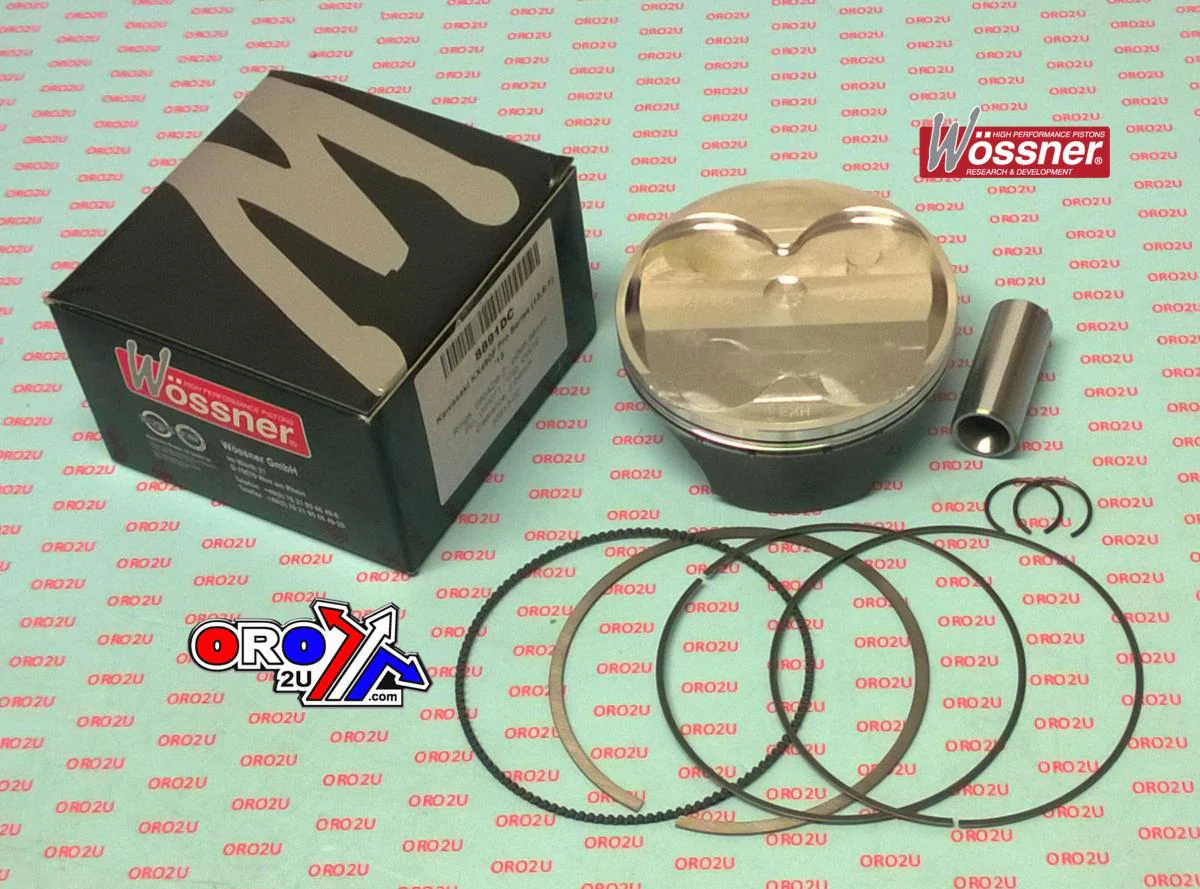

This Wossner forged high-compression piston kit features a 96.02mm bore size (95.98mm actual), offering a +0.02mm oversize fitment for Kawasaki KX450F models from 2013 to 2014. Made in Germany, this piston is designed with a high-compression dome to increase performance while maintaining reliability. Its elliptical shape promotes even pressure distribution and efficient heat dissipation, making it ideal for high-stress, high-performance conditions.

Features

•


  Forged high-compression piston with +0.02mm oversize specification





•


  Elliptical design ensures even thrust load distribution during heat expansion





•


  Engineered for optimal combustion heat transfer and structural integrity





•


  Manufactured in Germany




Specifications

•


  Bore Size: 96.02mm (actual 95.98mm)





•


  Displacement: 449 cm³





•


  Stroke: 62.10 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 13.50:1





•


  Compression Ratio (OEM): 12.50:1





•


  Dome Volume: +4.20 cm³





•


  Compression Height: 23.70 mm





•


  Lock Part Number: CW19





•


  Pin Part Number: WP071





•


  Ring Set Part Number: 960ADS-2





•


  Rod Part Number: P4020




Cross-Reference OEM Part Numbers

•


  56-W966.C.WO




Vehicle Fitments

•


  2013 Kawasaki KX450F





•


  2014 Kawasaki KX450F
