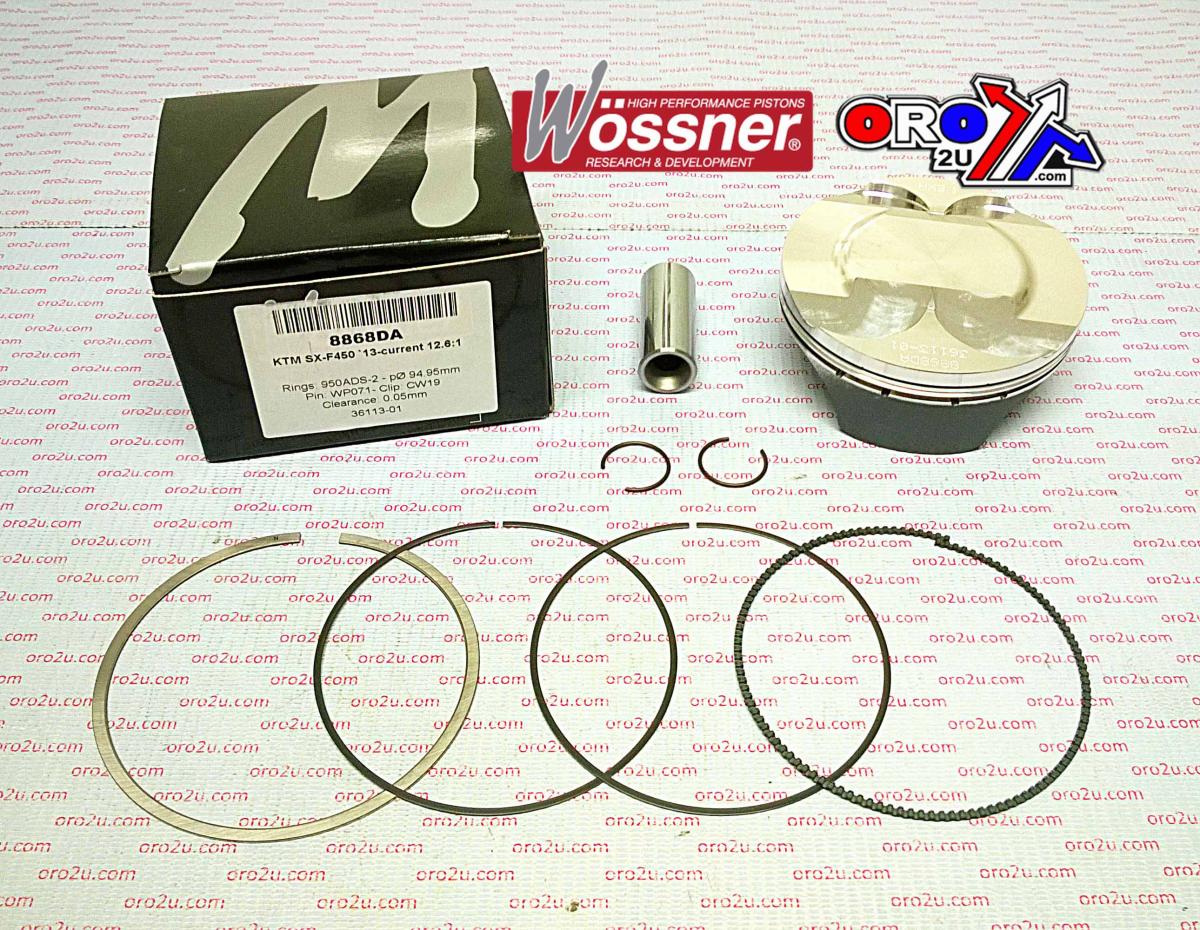

This Wossner forged high-compression piston kit features a 95mm bore size (94.95mm actual), designed as a standard fitment for KTM SX-F450 models from 2013 to 2018 and a range of Husqvarna Pro Series 450 models. Manufactured in Germany, the piston includes a two-ring configuration and elliptical shape for even load distribution and enhanced heat dissipation. With a high-compression dome, it increases performance in competitive applications.

Features

•


  Forged high-compression piston with two-ring design





•


  Elliptical profile distributes thrust loads evenly under heat expansion





•


  Optimised for superior combustion heat transfer and durability





•


  Manufactured in Germany




Specifications

•


  Bore Size: 95mm (actual 94.95mm)





•


  Displacement: 449 cm³





•


  Stroke: 84.00 mm





•


  Clearance: 0.05 mm





•


  Compression Ratio (Wossner): 13.60:1





•


  Compression Ratio (OEM): 12.60:1





•


  Dome Volume: +4.10 cm³





•


  Compression Height: 22.80 mm




Cross-Reference OEM Part Numbers

•


  78930007300





•


  40117M09500





•


  RC902M09500




Vehicle Fitments

•


  KTM SX-F450 (2013–2018)





•


  Husqvarna FC450 Pro Series (2014–2015)





•


  Husqvarna FC450 Pro Series (2016–2020)





•


  Husqvarna FS450 Pro Series (2015)





•


  Husqvarna FS450 Pro Series (2016–2020)





•


  Husqvarna FX450 Pro Series (2017–2020)
