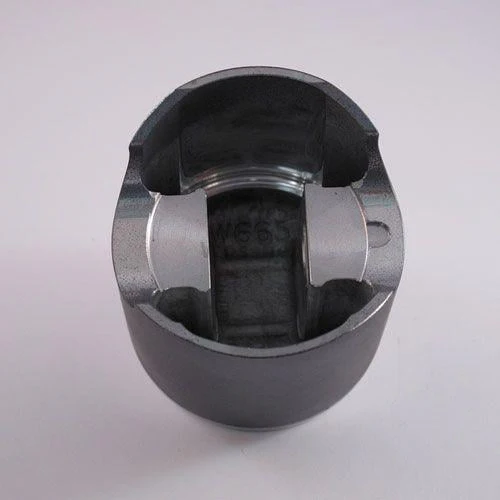

This Wossner piston kit features a 67mm bore size (66.94mm actual) and is designed for the Suzuki RM250 model year 1986. Forged in Germany, this piston offers high strength and thermal performance. The elliptical profile ensures a uniform bearing surface under expansion, distributing loads evenly and helping prevent piston failure due to localised stress.

Features

•


  Forged construction for high durability





•


  Elliptical design minimises localised pressure under heat





•


  Efficient thermal transfer to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 67mm (66.94mm)





•


  Display: 246 cm³





•


  Stroke: 70.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 37.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8158DA





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6700





•


  Part No.: 56-W543+000.WO





•


  OEM: 12110-00B24-0F0





•


  Cross Reference: 543M06800




Vehicle Fitments

•


  Suzuki RM250 1986
