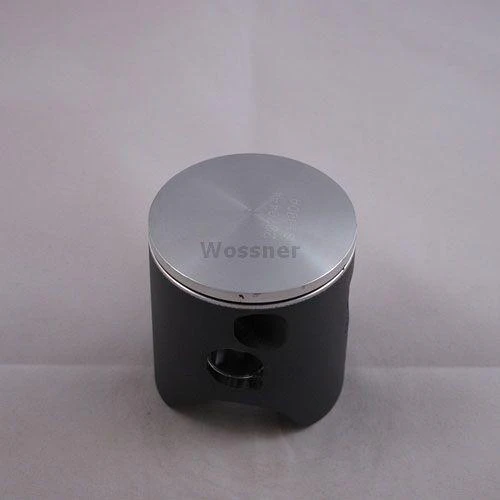

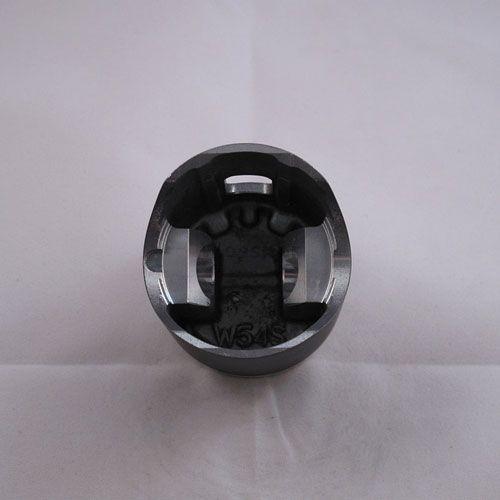

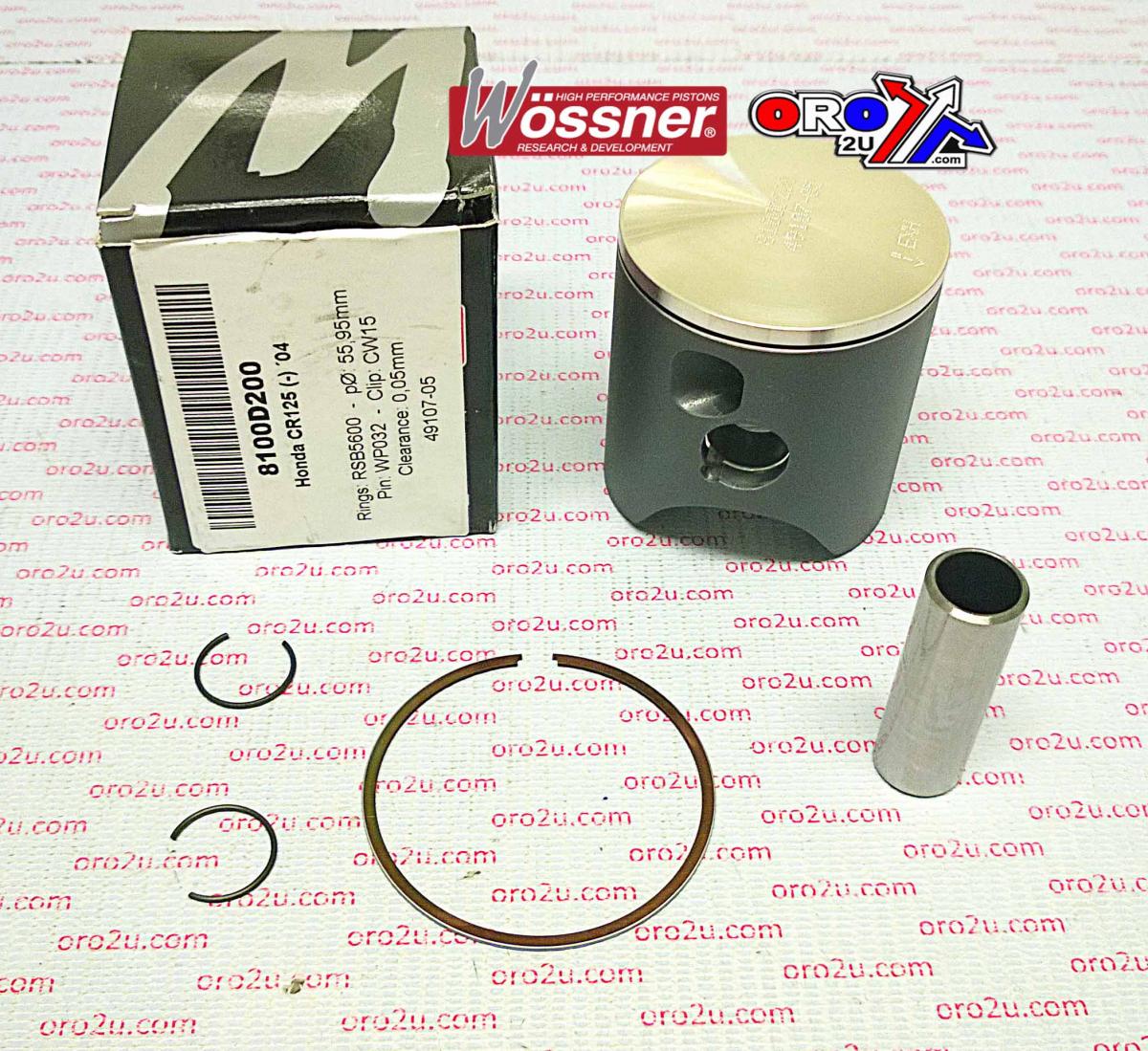

The Wossner 8100D200 piston kit is a +2.00 oversize forged piston designed for the 2004 Honda CR125. With a 56.00mm bore and 55.95mm piston diameter, this piston offers enhanced durability, efficient heat management, and consistent performance in demanding two-stroke applications. Its elliptical design provides a uniform bearing surface, reducing stress concentrations and preventing piston collapse. Manufactured in Germany, this kit is built to high standards for serious performance use.

Features

•


  Forged piston for superior strength and longevity





•


  Engineered for optimal combustion chamber heat transfer





•


  Elliptical profile evenly distributes thrust loads and reduces localised pressure





•


  Precision-manufactured in Germany for consistent performance




Specifications

•


  Bore: 56.00 mm





•


  Piston Diameter: 55.95 mm





•


  Display Displacement: 125 cm³





•


  Stroke: 54.50 mm





•


  Piston Clearance: 0.05 mm





•


  Compression Height: 28.00 mm





•


  Compression Ratio (Wossner and OEM): 2-stroke





•


  Lock Part Number: CW15





•


  Pin Part Number: WP032





•


  Ring Set Part Number: RSB5600





•


  Rod Part Number: P2009ng)




Vehicle Fitments

•


  2004 Honda CR125
