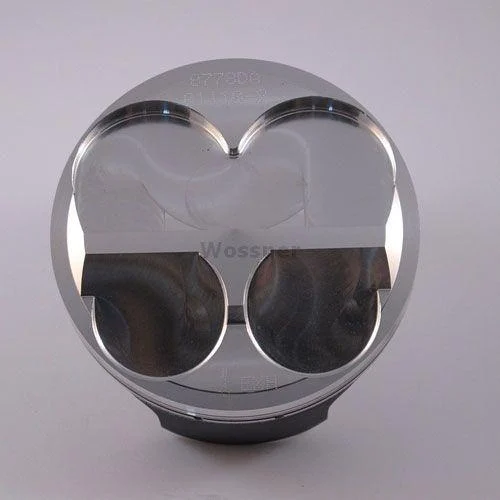

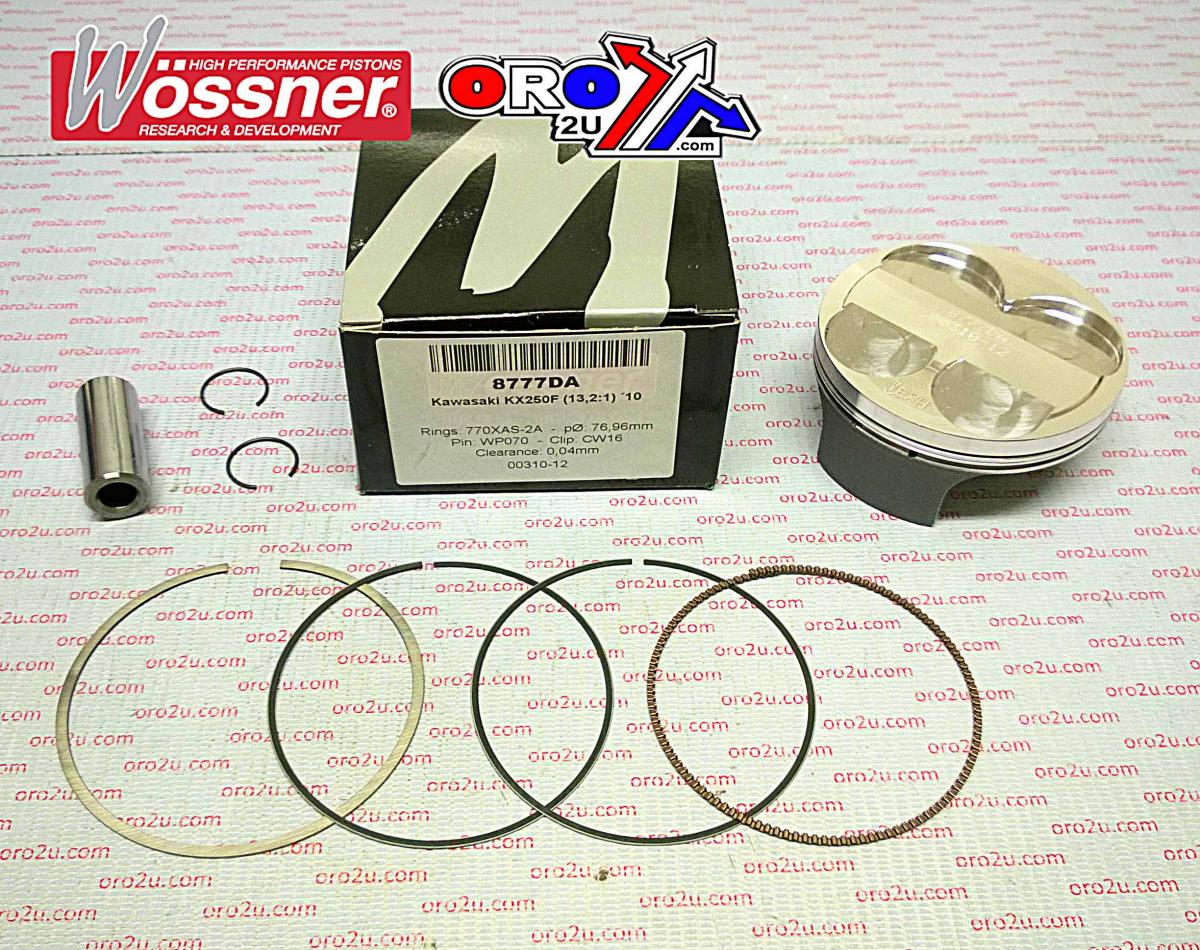

This Wossner forged high-compression piston kit features a 77mm bore size (76.96mm actual) and is designed for the 2010 Kawasaki KX250F. Manufactured in Germany, it includes a two-ring configuration and a high-compression dome for increased performance. The elliptical design ensures consistent load distribution, while efficient heat transfer supports durability under high-stress conditions.

Features

•


  Forged high-compression piston with two-ring design





•


  Elliptical profile ensures even thrust load distribution under heat expansion





•


  Designed for optimal combustion heat transfer to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 77mm (actual 76.96mm)





•


  Displacement: 250 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): 13.90:1





•


  Compression Ratio (OEM): 13.20:1





•


  Dome Volume: -1.40 cm³





•


  Compression Height: 19.60 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 770XAS




Cross-Reference OEM Part Numbers

•


  OEM: 13001-0115





•


  Wiseco: 40009M





•


  Vertex: 23566





•


  ProX: 01.4340





•


  Wiseco: 40010M07700




Vehicle Fitments

•


  2010 Kawasaki KX250F
