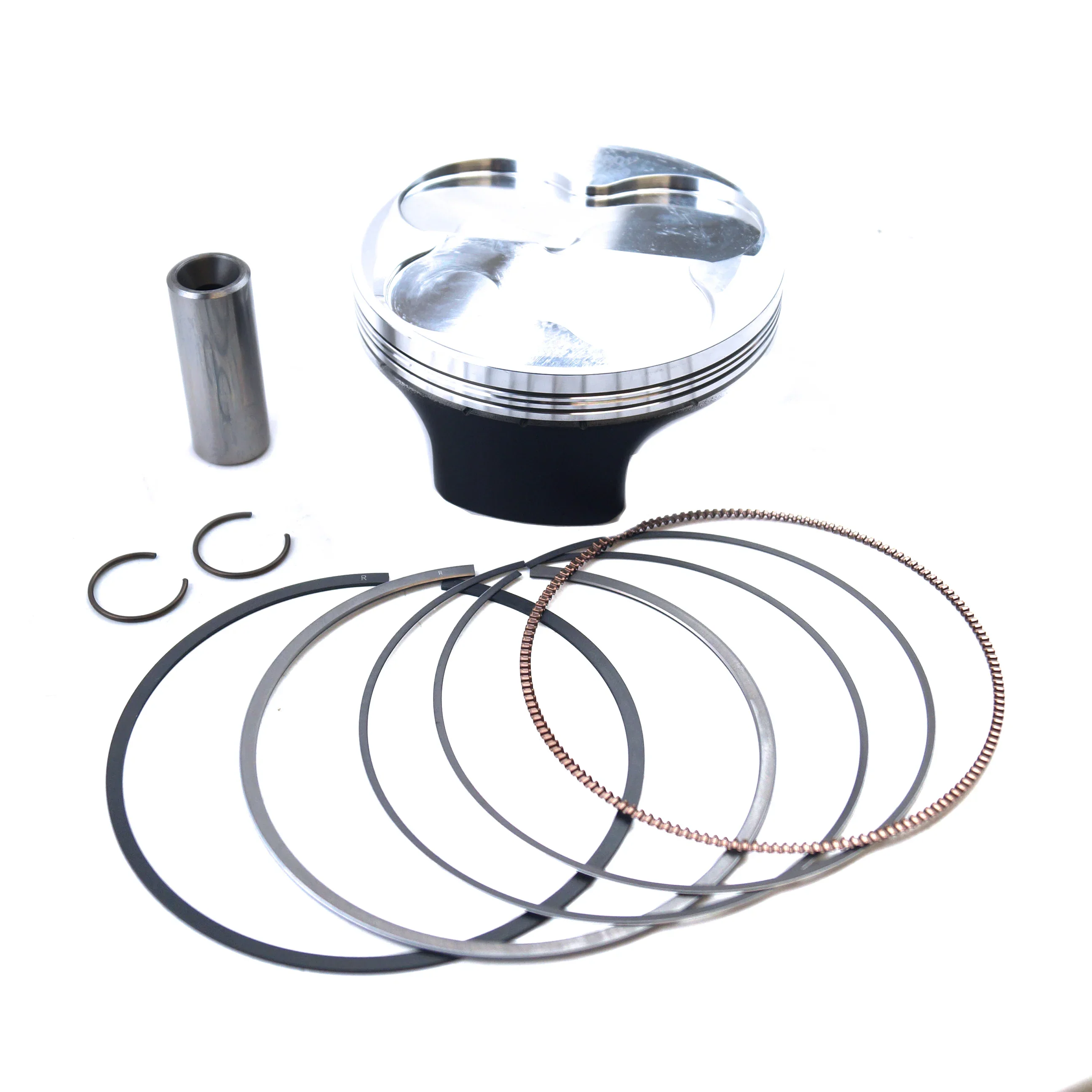

PRO SERIES PISTON KIT 97mm BORE 96.98mm WOSSNER 4086DC (STD)

YAMAHA

YZF 450 2023



• Wossner forged pistons are superior in strength and design.


• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.


• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.


• Made in Germany.

Part No. 56-W4086.C.WO (oro2u.com)

WOSSNER  4086DC PISTON KIT, BORE 97.00mm

A GRADE PISTON 96.98mm

CLEARANCE 0.04mm

STROKE 60.80mm

COMPRESSION HEIGHT 24mm

COMPRESSION RATIO 13.50:1

THEORETICAL WEIGHT 267.50g

RINGS RIK97.00

PISTON PIN WP072-SP

PISTON CLIPS CW18
