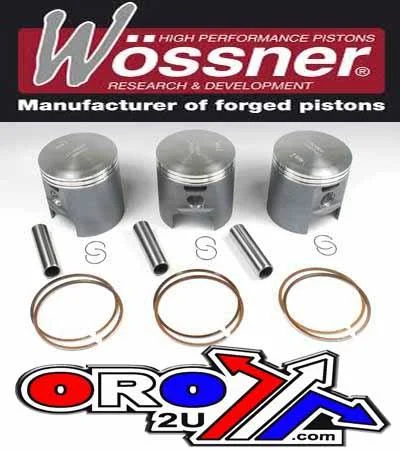

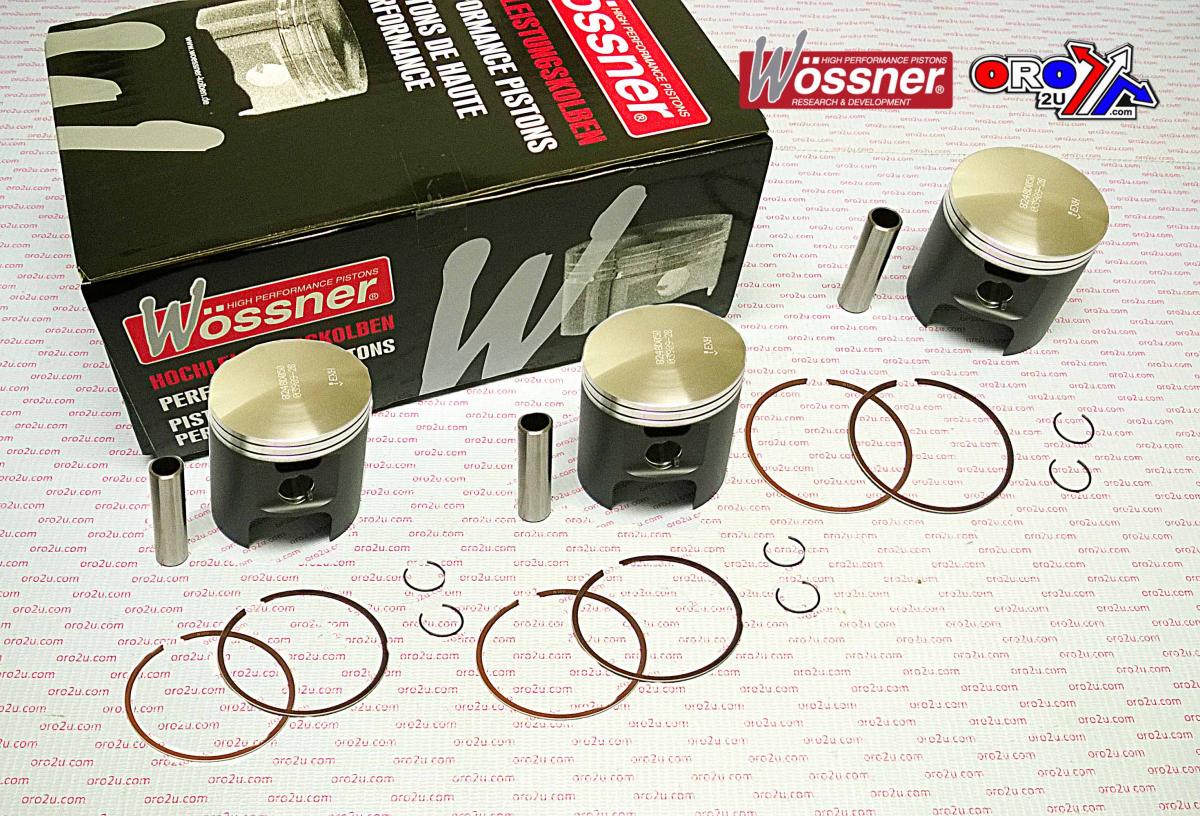

The Wossner K8248DA-3 piston kit is a standard-size forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from 1972 to 1975. Featuring a 71.00mm bore and built from high-strength materials, this kit ensures superior heat transfer and structural reliability. Manufactured in Germany, the set includes three pistons and all necessary installation components.

Features

•


  Forged high-performance pistons with PTFE-coated skirts





•


  Elliptical design provides even heat expansion and load distribution





•


  Polished crown surfaces to resist detonation





•


  Made from 4032 T6 alloy for tighter piston-to-bore tolerances





•


  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 71.00mm (Standard)





•


  Measured bore: 70.93mm





•


  Display displacement: 747 cm³





•


  Stroke: 63.00mm





•


  Clearance: 0.07mm





•


  Compression height: 32.00mm





•


  Wossner compression ratio: 2-stroke





•


  OEM compression ratio: 2-stroke





•


  Quantity: 3 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9868.000.WO





•


  Clip: CW16





•


  Piston Pin: WP027





•


  Ring Set: RSB7100 x 2 per piston




Vehicle Fitments

•


  Kawasaki 750 Mach IV 1972–1975





•


  Kawasaki H2 750 Triple Cylinder 1972–1975
