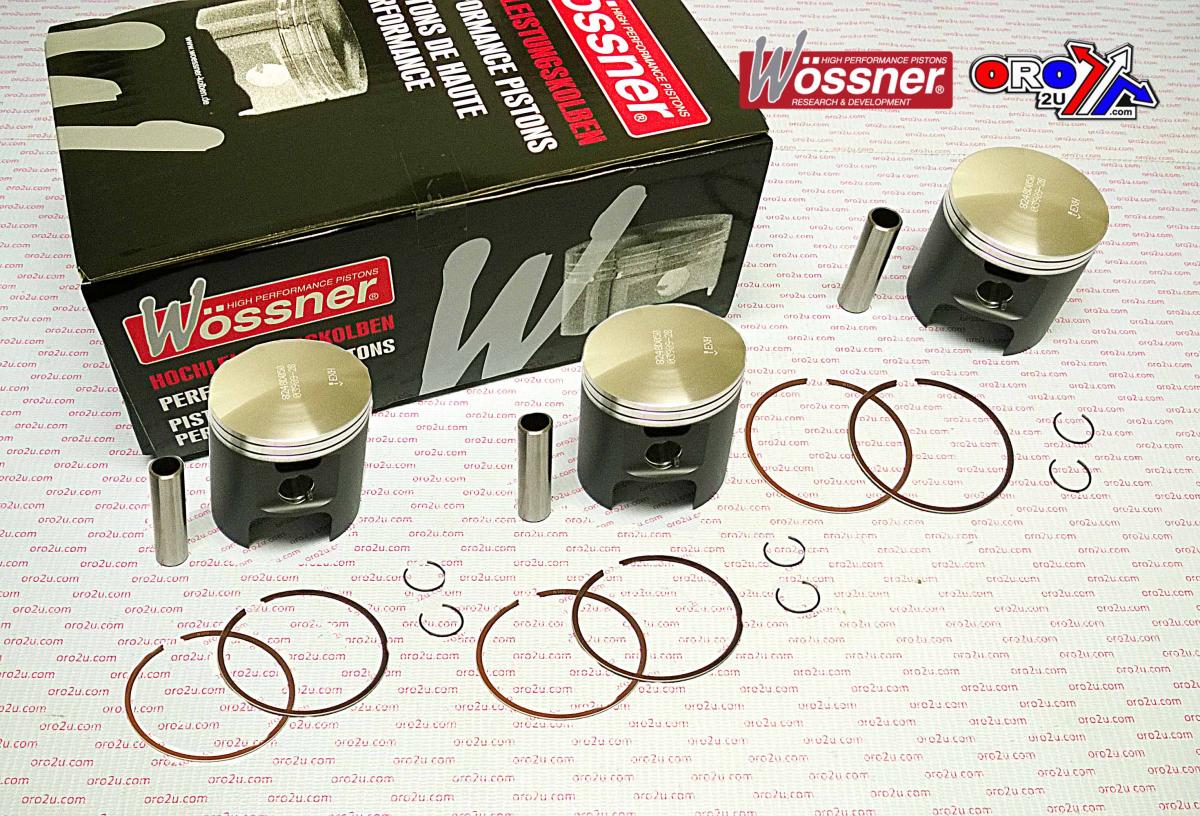

The Wossner K8248D250-3 piston kit is a +2.50mm oversize forged piston set designed for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from 1972 to 1975. Featuring a 73.50mm bore, this kit delivers reliable performance, excellent thermal efficiency, and superior durability. Manufactured in Germany, it includes three pistons and all required installation components.

Features

•


  Forged high-performance pistons with PTFE-coated skirts





•


  Elliptical design ensures uniform thermal expansion and load distribution





•


  Engineered for effective heat transfer from combustion chamber to cylinder walls





•


  Constructed from 4032 T6 alloy for precise piston-to-bore fitment





•


  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 73.50mm (+2.50mm oversize)





•


  Measured bore: 73.43mm





•


  Display displacement: 747 cm³





•


  Stroke: 63.00mm





•


  Clearance: 0.07mm





•


  Compression height: 32.00mm





•


  Wossner compression ratio: 2-stroke





•


  OEM compression ratio: 2-stroke





•


  Quantity: 3 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9868.250.WO





•


  Clip: CW16





•


  Piston Pin: WP027





•


  Ring Set: RSB7350 x 2 per piston




Vehicle Fitments

•


  Kawasaki 750 Mach IV 1972–1975





•


  Kawasaki H2 750 Triple Cylinder 1972–1975
