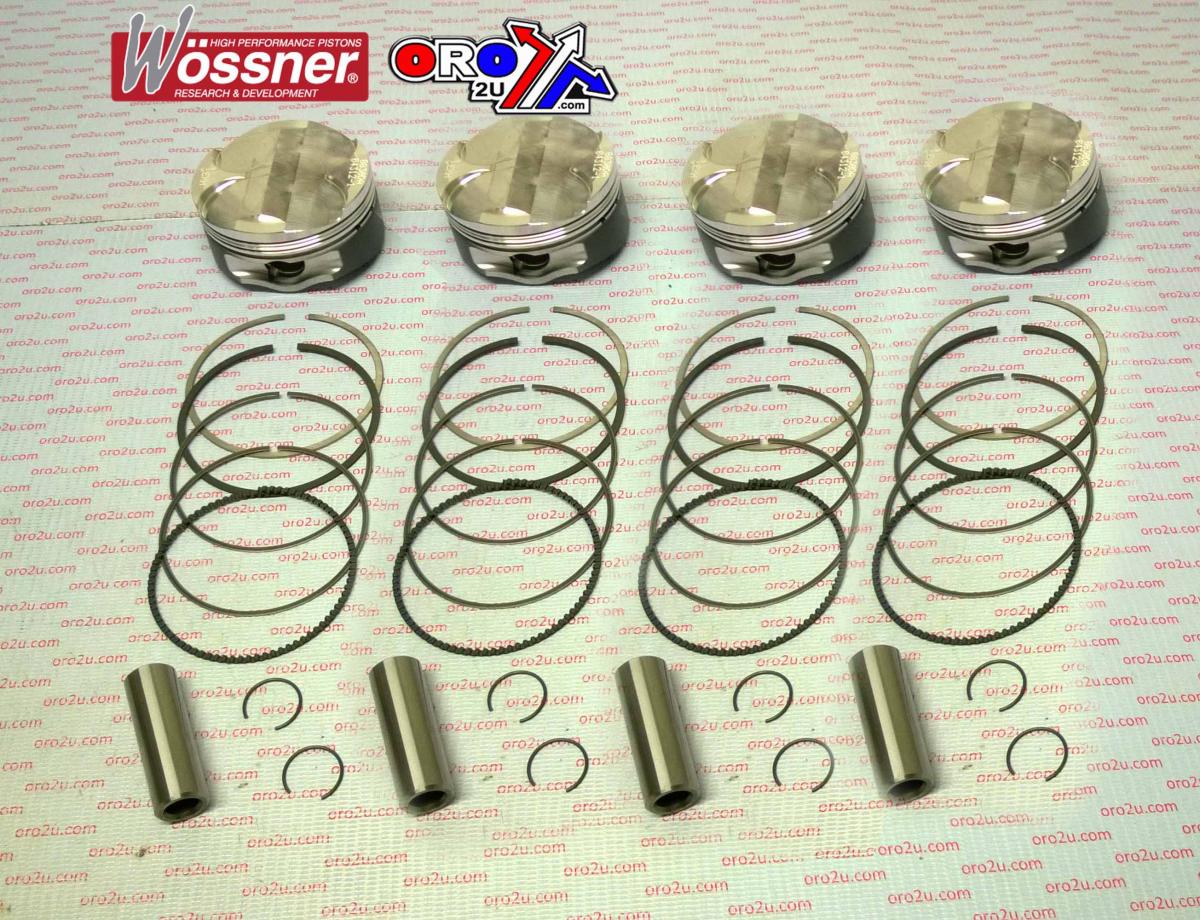

The Wossner K8830DA-4 piston kit is a standard-size forged piston set designed for Yamaha YZF R6 models from 2006 to 2011. With a 67.00mm bore and a 13.0:1 compression ratio, this high-performance kit supports efficient combustion and durability in high-revving four-stroke engines. Manufactured in Germany, it includes four pistons and all essential components for installation.

Features

•


  Forged high-performance pistons with skirt coating





•


  Elliptical design promotes even thermal expansion and consistent load distribution





•


  Optimised heat transfer from combustion chamber to cylinder walls





•


  Designed for high-compression four-stroke engines





•


  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 67.00mm (Standard)





•


  Measured bore: 66.94mm





•


  Display displacement: 599 / 617 / 635 cm³





•


  Stroke: 42.50mm





•


  Clearance: 0.06mm





•


  Compression ratio: 13.0:1





•


  Dome volume: –2.00 cm³





•


  Compression height: 21.20mm





•


  Quantity: 4 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9874.000.WO





•


  Clip: CW15





•


  Piston Pin: WP011





•


  Ring Set: 670XKS




Vehicle Fitments

•


  Yamaha YZF R6 2006–2011
