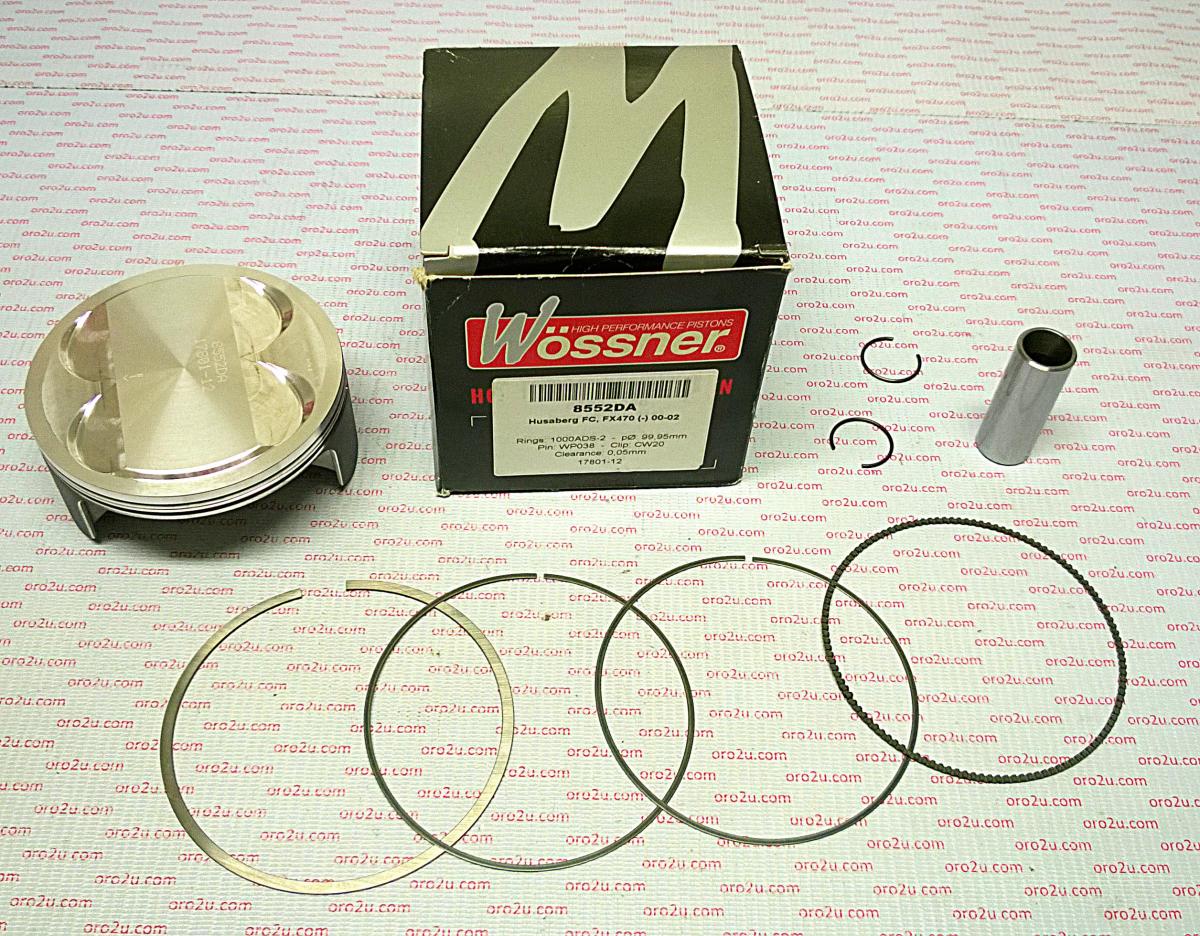

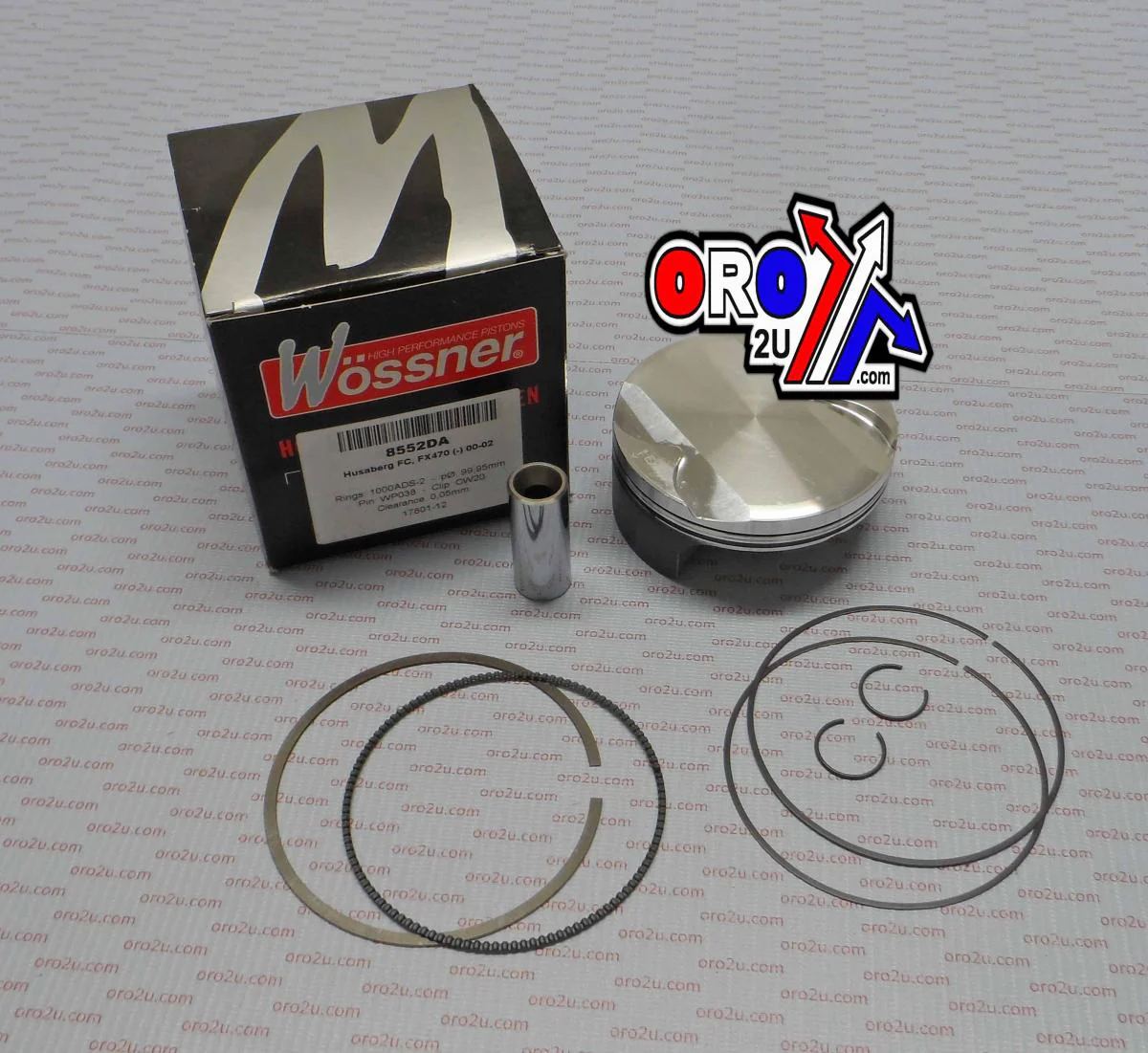

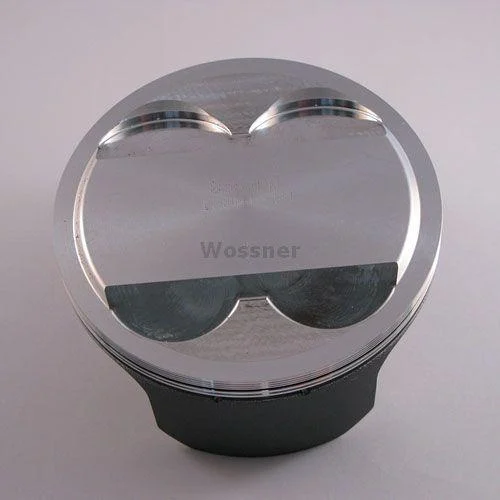

Wossner 100.01mm (99.96mm) forged piston kit is designed for Husaberg FC 400 and FX 470 models from 2000 to 2002. Engineered for strength and precision, this piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, it meets high-quality standards for reliable performance.

Features

• Wossner forged piston for superior strength and durability


• Optimized heat transfer for improved combustion efficiency


• Elliptical design for uniform bearing surface and reduced localized pressure


• Precision-engineered to prevent piston collapse


• Made in Germany

Specifications

• Bore Size: 100.01mm (99.96mm)


• Oversize: +0.01mm


• Displacement: 472cc


• Stroke: 60.10mm


• Clearance: 0.05mm


• Compression Ratio: OEM (12.40:1)


• Dome Volume: +5.60cm³


• Compression Height: 22.60mm


• Lock Part Number: CW20


• Pin Part Number: WP038


• Ring Set Part Number: 1000ADS


• Theoretical Weight: Not specified

Vehicle Fitments

• Husaberg FC 400 (2000-2002)


• Husaberg FX 470 (2000-2002)
