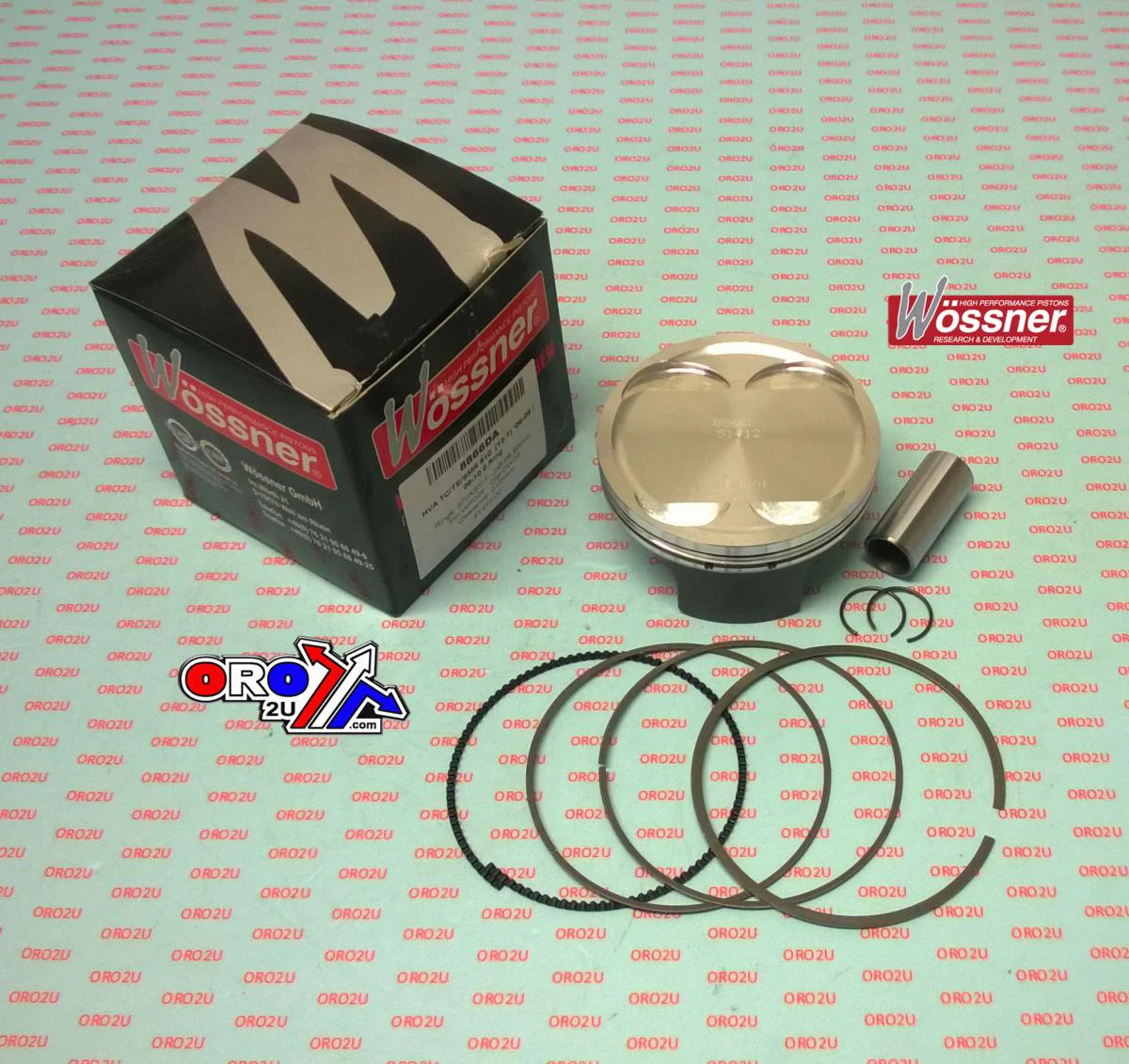

This Wossner forged piston kit features a 97.01mm bore size (96.96mm actual), offering a +0.01mm oversize option for Husqvarna 510 models. Designed for engines requiring high thermal and mechanical performance, the piston includes a two-ring configuration and an elliptical profile that distributes thrust loads evenly to prevent piston failure under stress. Made in Germany, it ensures efficient heat transfer and consistent engine performance.

Features

•


  Forged construction with two-ring setup for strength and reliability





•


  Elliptical design promotes uniform load distribution during expansion





•


  Designed for optimal combustion heat transfer to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 97.01mm (actual 96.96mm)





•


  Displacement: 501 cm³





•


  Stroke: 67.80 mm





•


  Clearance: 0.05 mm





•


  Compression Ratio (Wossner): 13.00:1





•


  Compression Ratio (OEM): 12.90:1





•


  Dome Volume: -9.20 cm³





•


  Compression Height: 24.80 mm





•


  Lock Part Number: CW20





•


  Pin Part Number: WP029





•


  Ring Set Part Number: 970XSY




Cross-Reference OEM Part Numbers

•


  56-W152.WO.B




Vehicle Fitments

•


  Husqvarna TC510 (2006–2009)





•


  Husqvarna TE510 (2008–2010)





•


  Husqvarna SMR510 (2008–2010)
