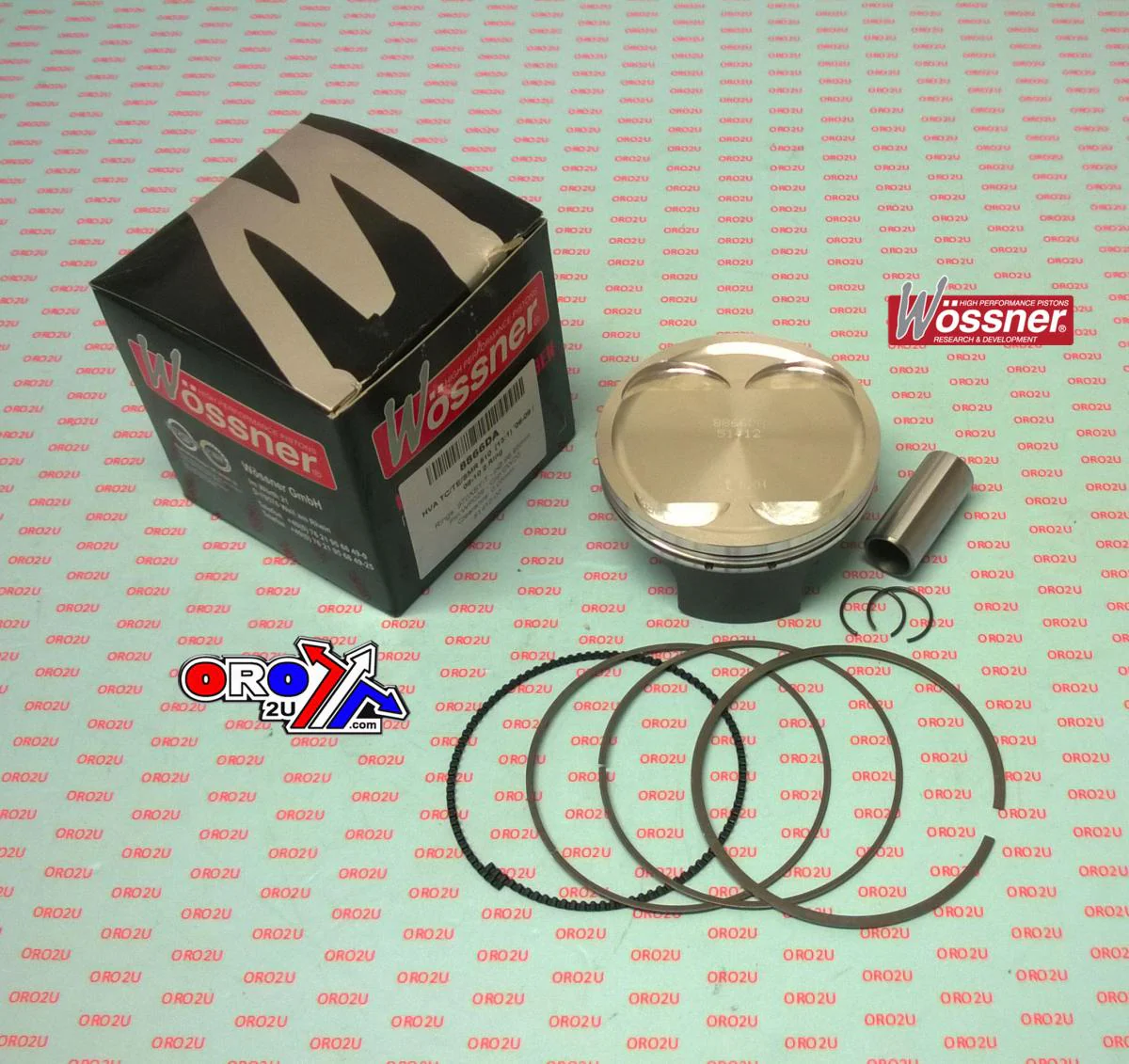

PISTON KIT 6-10 TE TC510 97mm, HUSQVARNA WOSSNER 8866DA
This Wossner forged piston kit features a 97mm bore size (96.95mm actual) and is a standard fitment for select Husqvarna 510 models. Designed with a two-ring configuration, it provides enhanced strength and efficient heat transfer. The German-made piston utilises an elliptical profile to ensure uniform load distribution under thermal stress, minimising wear and risk of collapse.
Features
-
Forged piston with two-ring configuration for durability and performance
-
Elliptical design improves bearing surface during heat expansion
-
Engineered for optimal heat dissipation from combustion chamber to cylinder
-
Manufactured in Germany
Specifications
-
Bore Size: 97mm (actual 96.95mm)
-
Displacement: 501 cm³
-
Stroke: 67.80 mm
-
Clearance: 0.05 mm
-
Compression Ratio (Wossner): 13.00:1
-
Compression Ratio (OEM): 12.90:1
-
Dome Volume: -9.20 cm³
-
Compression Height: 24.80 mm
-
Lock Part Number: CW20
-
Pin Part Number: WP029
-
Ring Set Part Number: 970XSY
Cross-Reference OEM Part Numbers
-
56-W152.WO.A
Vehicle Fitments
-
Husqvarna TC510 (2006–2009)
-
Husqvarna TE510 (2008–2010)
-
Husqvarna SMR510 (2008–2010)
