PISTON KIT 77-80 RM125 54.00, FORGED WOSSNER 8192DA

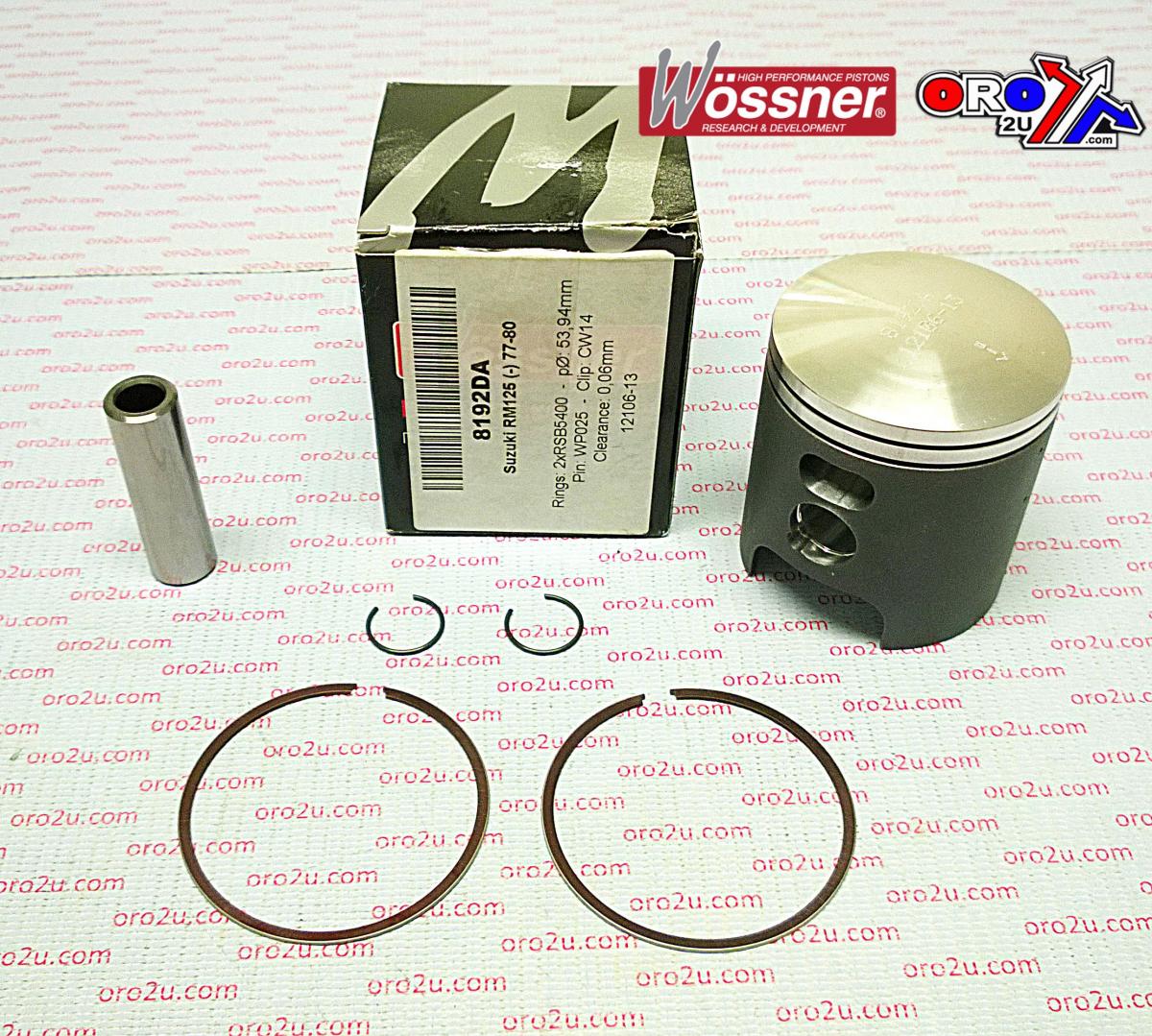

Piston Kit 54mm Bore 53.94 Wossner 8192DA (STD)
SUZUKI RM125 1977 - 1980
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
- Wossner Piston Suzuki RM125 54 mm Bore (PN#): 8192DA
- Lock P/N: CW14
- Pin P/N: WP025
- Ring Set P/N: RSB5400 x 2
Specifications:
- Display (cm3): 123
- Hub Stroke (mm): 54.00
- Clearance (mm): 0.06
- Wossner Compression Ratio: 2 stroke
- OEM Compression Ratio: 2 stroke
- Dome Volume (cm3): -0.30
- Compression Height (mm): 30.50
- Theoretical Weight (G):
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PISTON KIT 77-80 RM125 54.00, FORGED WOSSNER 8192DA
PISTON KIT 77-80 RM125 54.00, FORGED WOSSNER 8192DA
Piston Kit 54mm Bore 53.94 Wossner 8192DA (STD)
SUZUKI RM125 1977 - 1980
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
- Wossner Piston Suzuki RM125 54 mm Bore (PN#): 8192DA
- Lock P/N: CW14
- Pin P/N: WP025
- Ring Set P/N: RSB5400 x 2
Specifications:
- Display (cm3): 123
- Hub Stroke (mm): 54.00
- Clearance (mm): 0.06
- Wossner Compression Ratio: 2 stroke
- OEM Compression Ratio: 2 stroke
- Dome Volume (cm3): -0.30
- Compression Height (mm): 30.50
- Theoretical Weight (G):
