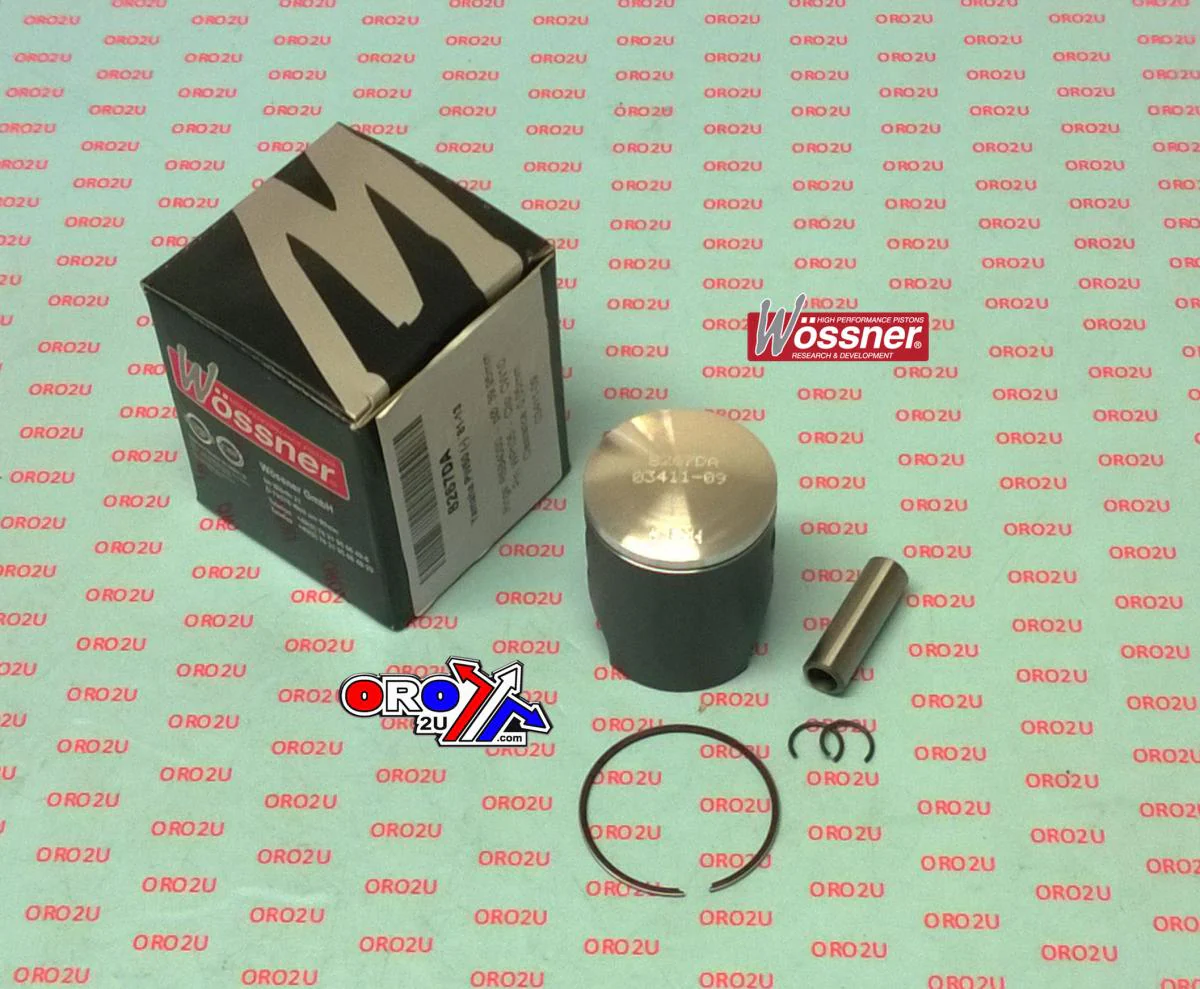

This Wossner forged piston kit is a standard-size replacement specifically designed for Yamaha PW50 models from 1981 to 2019. Crafted in Germany, it offers enhanced durability and precise engineering for small two-stroke engines, ensuring optimal fit and performance.

Features

•


  Forged construction for high strength and longevity





•


  Elliptical design provides uniform bearing surface during heat expansion





•


  Facilitates efficient heat transfer to the cylinder walls





•


  Prevents localised pressure buildup and piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 40.00mm





•


  Actual Piston Size: 39.95mm





•


  Stroke: 39.20mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Compression Height: 24.90mm





•


  Circlip Part Number: CW10





•


  Pin Part Number: WP105





•


  Ring Set Part Number: RSB4000




Cross-Reference OEM Part Numbers

•


  Part No: 56-W938+000_WO





•


  Cross Reference: 18M-11631-00-A0, 653M04000




Vehicle Fitments

•


  Yamaha PW50 (1981–2019)
