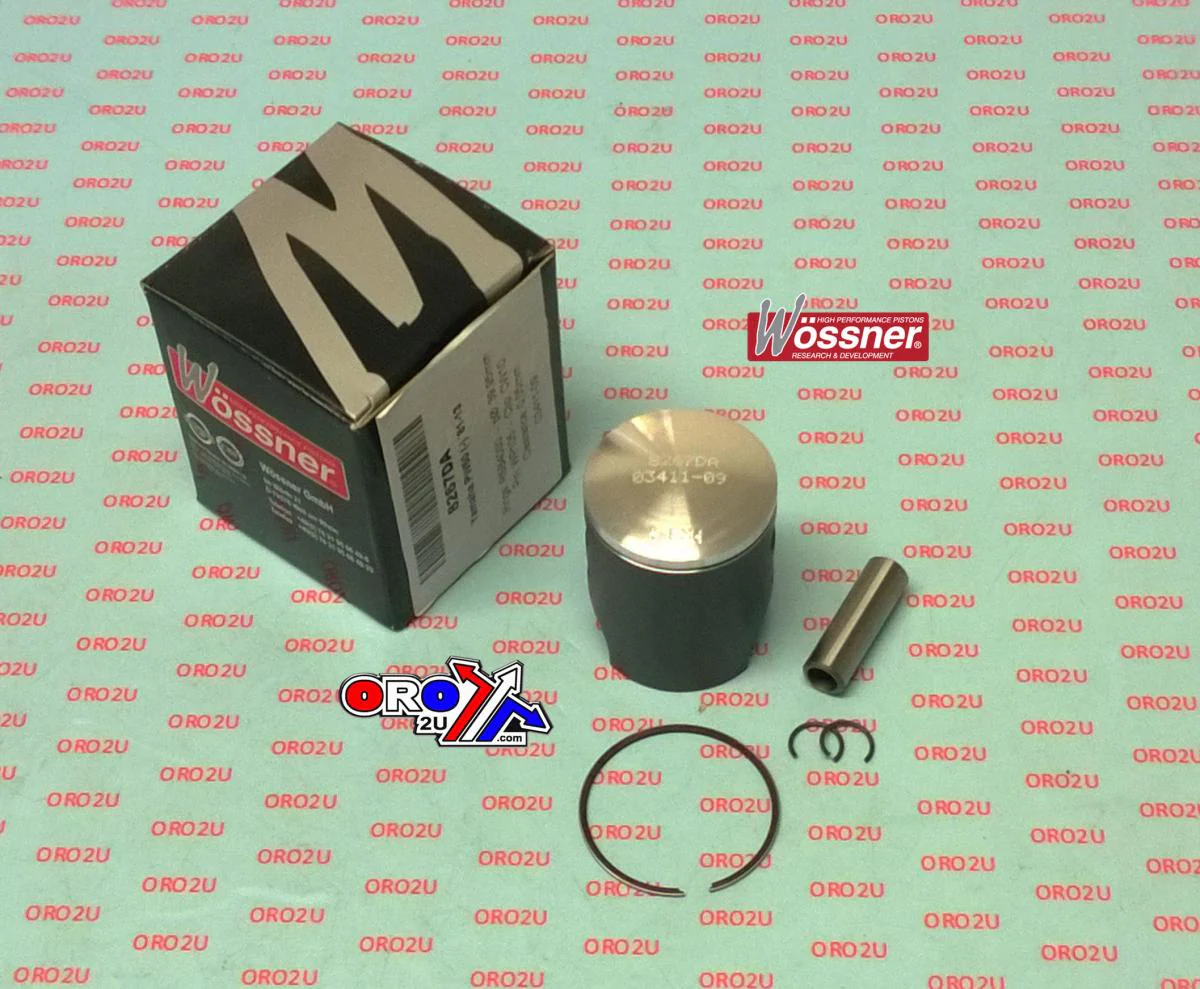

This Wossner forged piston kit is a +1.00mm oversize replacement for Yamaha PW50 models from 1981 to 1997. Designed for two-stroke engine rebuilds requiring an increased bore size, it provides exceptional durability and precise thermal expansion characteristics.

Features

•


  Forged construction ensures superior strength and wear resistance





•


  Elliptical design delivers a uniform bearing surface under heat expansion





•


  Efficient heat transfer from combustion chamber to cylinder walls





•


  Prevents piston collapse by evenly distributing thrust loads





•


  Manufactured in Germany




Specifications

•


  Bore Size: 41.00mm





•


  Actual Piston Size: 40.95mm





•


  Stroke: 39.20mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Compression Height: 24.90mm





•


  Lock Part Number: CW10





•


  Pin Part Number: WP105





•


  Ring Set Part Number: RSB4100




Cross-Reference OEM Part Numbers

•


  Part No: 8267D100




Vehicle Fitments

•


  Yamaha PW50 (1981–1997)
