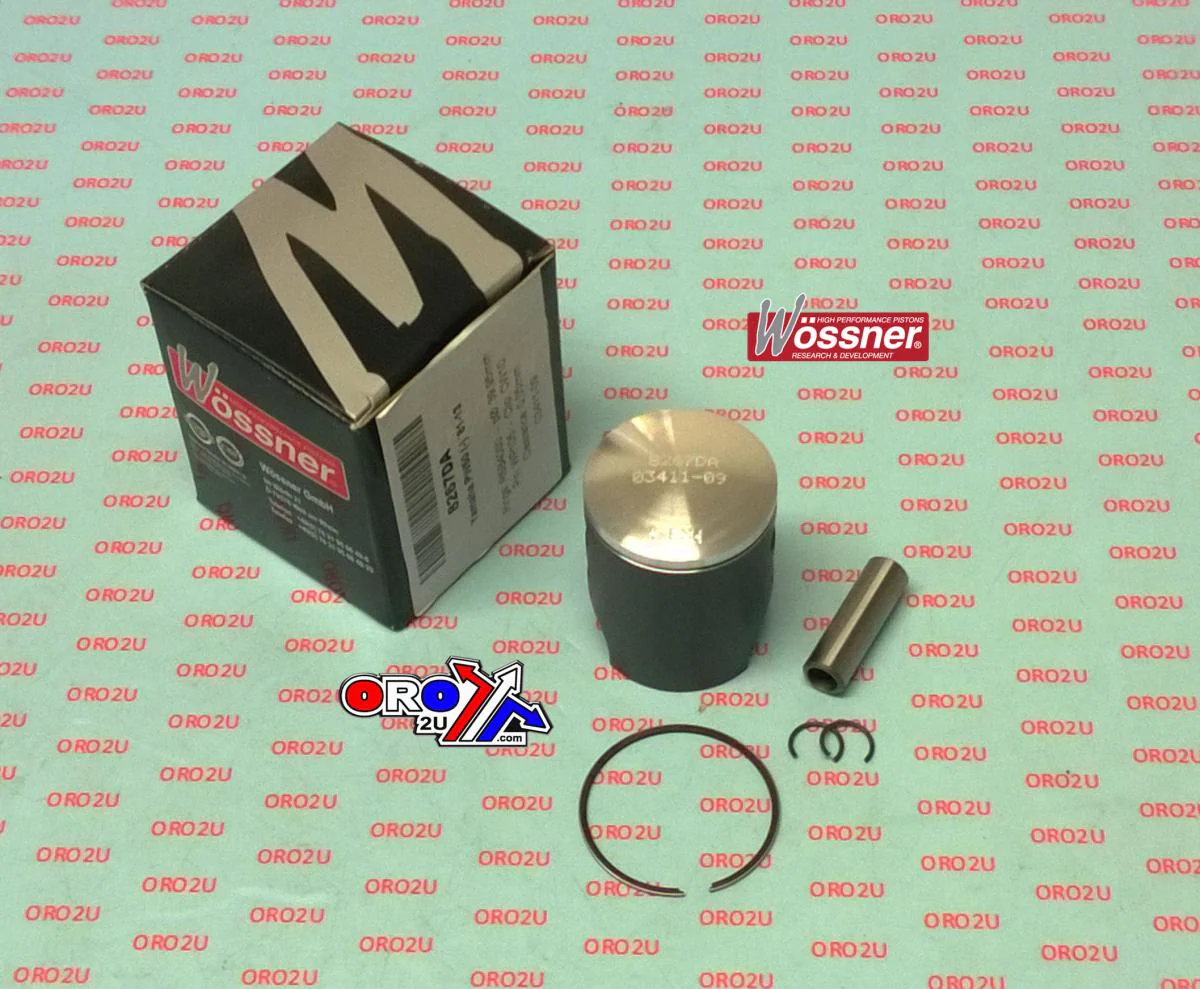

This Wossner forged piston kit is a +1.50mm oversize replacement for Yamaha PW50 models from 1981 to 1995. Precision-built in Germany, it is ideal for engines requiring a significant overbore while maintaining durability and performance in small-displacement two-stroke applications.

Features

•


  Forged piston construction for enhanced strength and longevity





•


  Elliptical design ensures a consistent bearing surface during heat expansion





•


  Optimised for efficient heat dissipation from the combustion chamber to cylinder walls





•


  Evenly distributes thrust loads to reduce the risk of piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 41.50mm





•


  Actual Piston Size: 41.45mm





•


  Stroke: 39.20mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Compression Height: 24.90mm





•


  Lock Part Number: CW10





•


  Pin Part Number: WP105





•


  Ring Set Part Number: RSB4150




Cross-Reference OEM Part Numbers

•


  Part No: 8267D150




Vehicle Fitments

•


  Yamaha PW50 (1981–1995)
