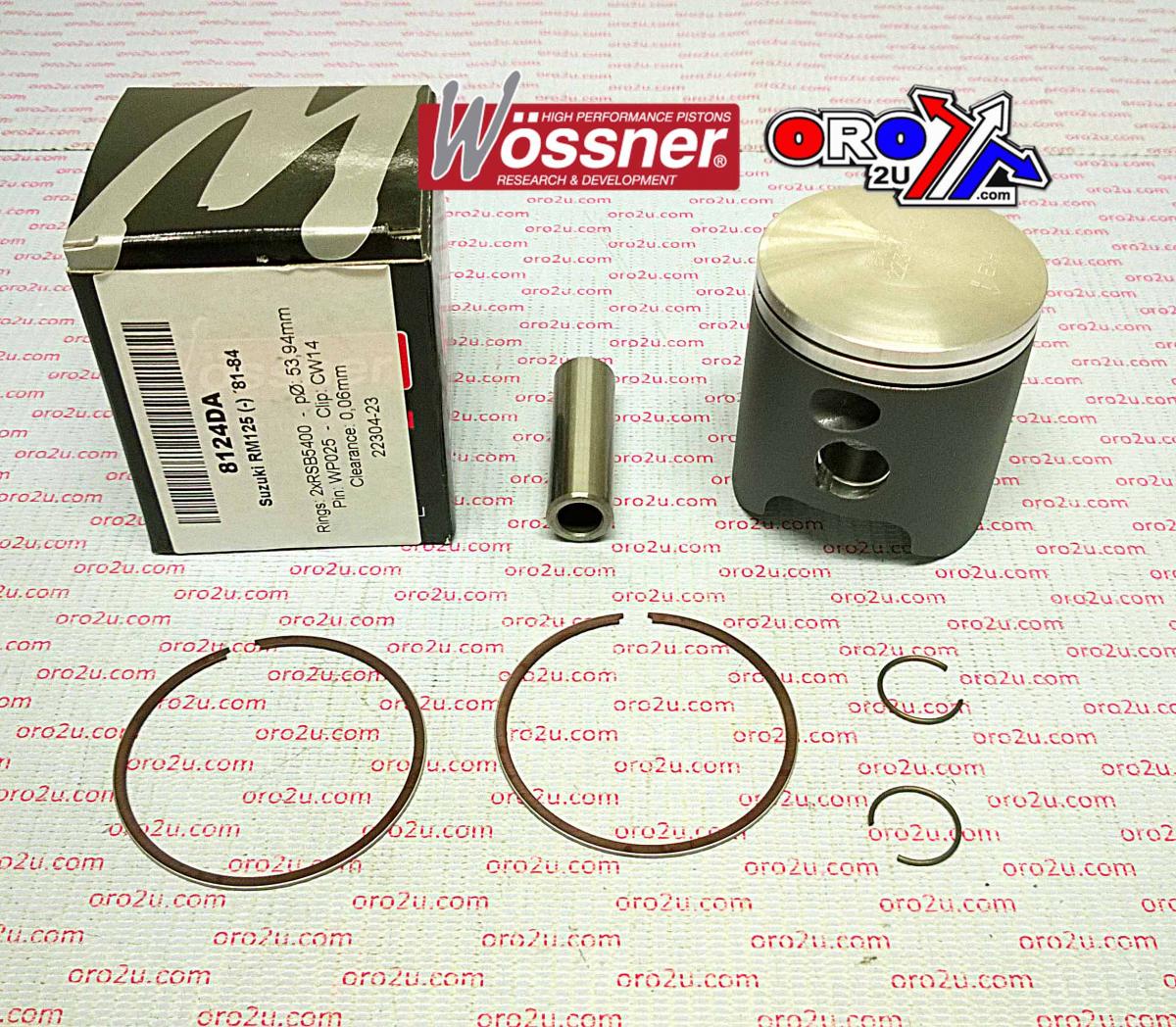

This Wossner forged piston kit with a 54.75mm bore (54.69mm) is designed for Suzuki RM125 models from 1981 to 1984. Manufactured in Germany, it provides enhanced durability and optimized heat transfer. Its elliptical shape ensures a consistent bearing surface during expansion, effectively distributing thrust loads and reducing localized stress to help prevent piston failure.

Features

•


  Forged piston construction for superior strength





•


  Designed for efficient combustion heat transfer to cylinder walls





•


  Elliptical profile ensures uniform expansion and load distribution





•


  Made in Germany




Specifications

•


  Bore size: 54.75mm (54.69mm)





•


  Display volume: 123 cm³





•


  Stroke: 54.00 mm





•


  Clearance: 0.06 mm





•


  Compression height: 29.50 mm





•


  Theoretical weight: Not specified





•


  Compression ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston: 8124D075





•


  Lock: CW14





•


  Pin: WP025





•


  Ring Set: RAB5475 x 2





•


  Connecting Rod Kit: P2040




Vehicle Fitments

•


  Suzuki RM125 1981





•


  Suzuki RM125 1982





•


  Suzuki RM125 1983





•


  Suzuki RM125 1984
