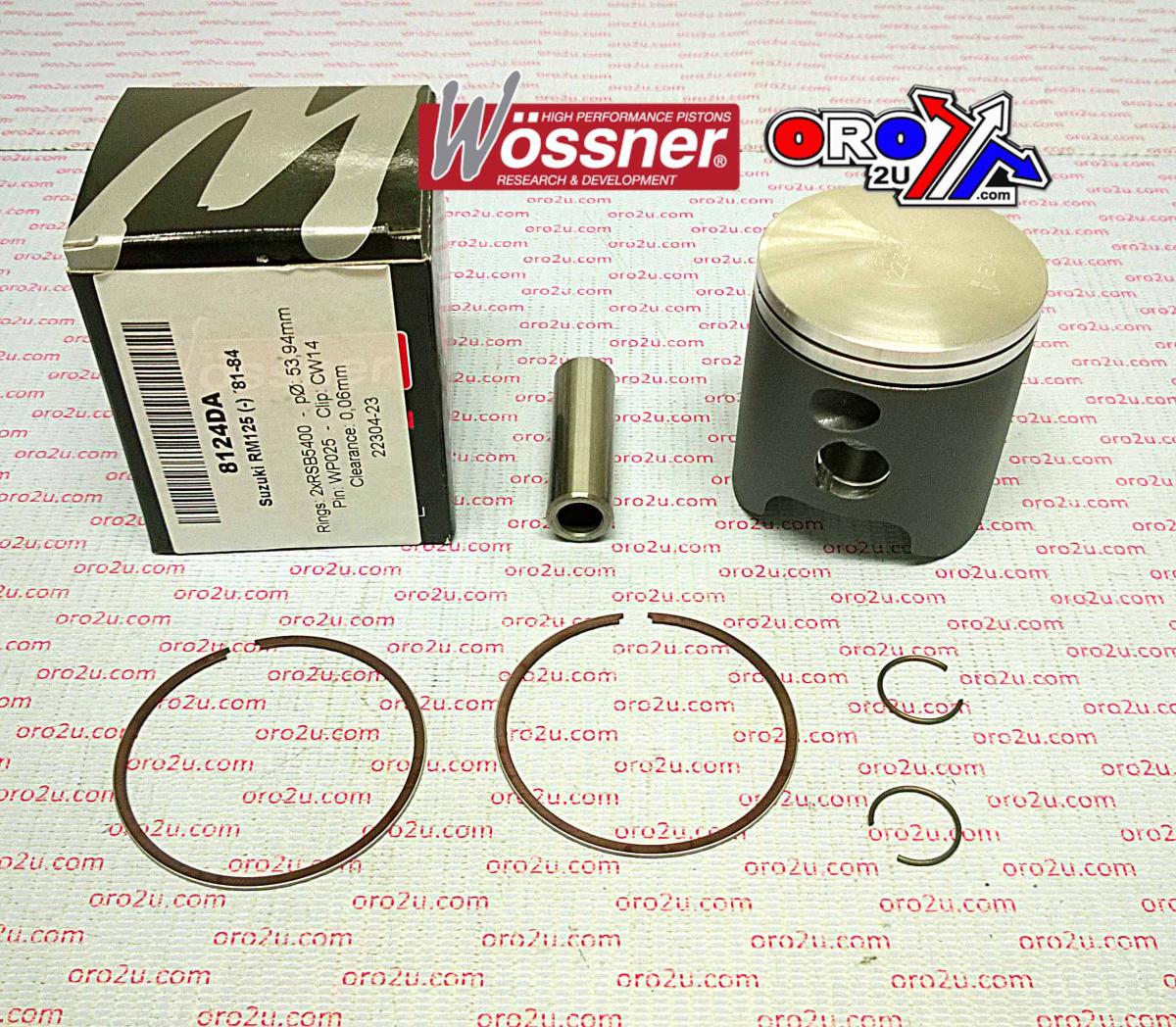

This Wossner forged piston kit with a 56.00mm bore (55.94mm) is intended for Suzuki RM125 models from 1981 to 1984. Precision-engineered in Germany, the piston enhances structural durability and thermal conductivity. The elliptical shape ensures uniform pressure distribution during heat expansion, helping prevent piston collapse under performance conditions.

Features

•


  Forged piston construction for maximum strength and reliability





•


  Optimized for effective combustion heat dissipation to cylinder walls





•


  Elliptical design for consistent bearing surface and reduced localized pressure





•


  Manufactured in Germany




Specifications

•


  Bore size: 56.00mm (55.94mm)





•


  Display volume: 123 cm³





•


  Stroke: 54.00 mm





•


  Clearance: 0.06 mm





•


  Compression height: 29.50 mm





•


  Theoretical weight: Not specified





•


  Compression ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston: 8124D200





•


  Lock: CW14





•


  Pin: WP025





•


  Ring Set: RSB5600 x 2





•


  Connecting Rod Kit: P2040




Vehicle Fitments

•


  Suzuki RM125 1981





•


  Suzuki RM125 1982





•


  Suzuki RM125 1983





•


  Suzuki RM125 1984
