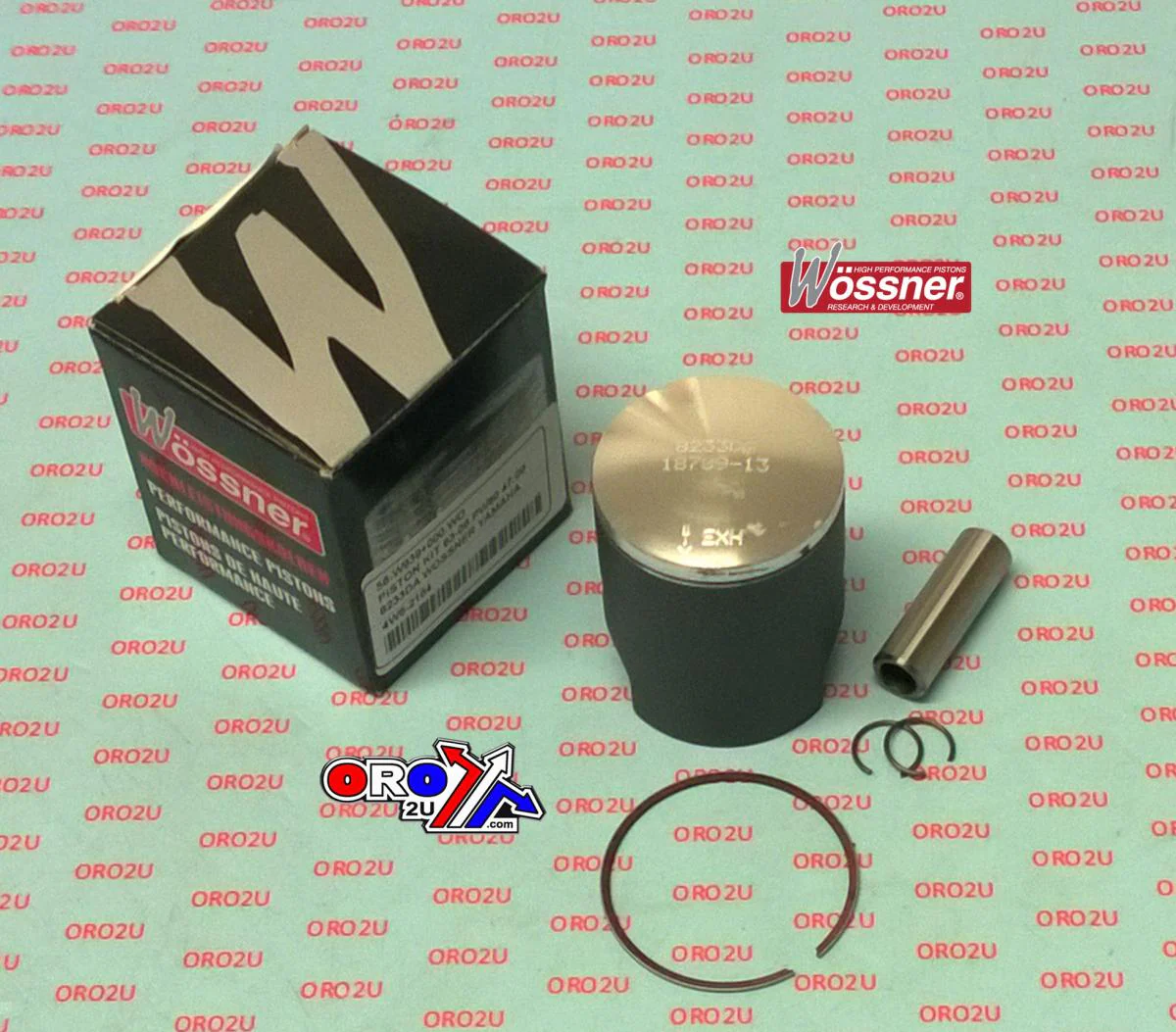

This Wossner forged piston kit is a standard-size replacement specifically designed for Yamaha PW80 and BW80 two-stroke models. With a 47mm bore, it ensures excellent durability, fitment, and thermal efficiency for long-lasting engine performance.

Features

•


  Forged piston for enhanced strength and wear resistance





•


  Elliptical design ensures a uniform bearing surface under thermal expansion





•


  Maximises heat transfer from combustion chamber to cylinder walls





•


  Evenly distributes thrust loads to reduce the risk of piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 47.00mm





•


  Actual Piston Size: 46.95mm





•


  Stroke: 45.60mm





•


  Piston Clearance: 0.05mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Compression Height: 29.50mm





•


  Lock Part Number: CW12





•


  Pin Part Number: WP091





•


  Ring Set Part Number: RSB4700




Cross-Reference OEM Part Numbers

•


  Part No: 8233DA




Vehicle Fitments

•


  Yamaha PW80 (1983–1993)





•


  Yamaha BW80 (1986–1988, 1990)





•


  Yamaha YB/TY/PW80 -3E5-
