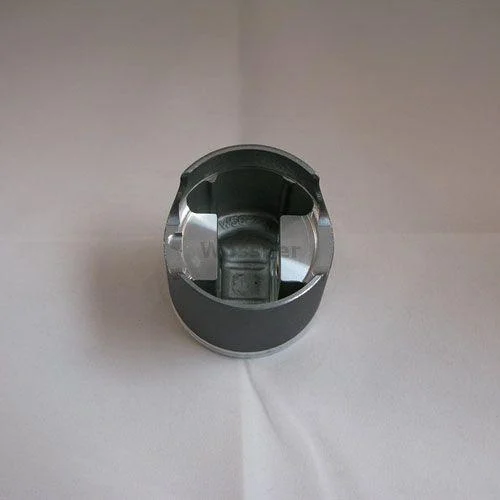

Wossner forged piston kit 8024D050 is an oversized (+0.50mm) solution for Honda MBX125 and MTX125 models from 1983 to 1987. With a 56.50mm bore and precision engineering, it is designed to withstand high-performance demands while ensuring reliable combustion and thermal management. Manufactured in Germany, this kit upholds Wossner's standards for durability and design accuracy.

Features

•


  Forged construction offers enhanced strength and resistance to wear





•


  Elliptical profile enables uniform load distribution under heat expansion





•


  Superior heat transfer from combustion chamber to cylinder walls





•


  Reduces localised pressure to help prevent piston collapse





•


  Made in Germany




Specifications

•


  Bore: 56.50mm (Measured: 56.44mm)





•


  Display Volume: 124 cm³





•


  Stroke: 50.60mm





•


  Clearance: 0.06mm





•


  Compression Height: 30.40mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Part No.: 56-W903+050.WO (Wossner Piston Honda MBX125 56.50 mm Bore, PN# 8024D050)





•


  Lock P/N: CW16





•


  Pin P/N: WP036





•


  Ring Set P/N: RSB5650 x 2




Cross-Reference OEM Part Numbers

•


  Not provided




Vehicle Fitments

•


  1983 Honda MBX 125





•


  1983 Honda MTX 125





•


  1984 Honda MBX 125





•


  1984 Honda MTX 125





•


  1985 Honda MBX 125





•


  1985 Honda MTX 125





•


  1986 Honda MBX 125





•


  1986 Honda MTX 125





•


  1987 Honda MBX 125





•


  1987 Honda MTX 125
