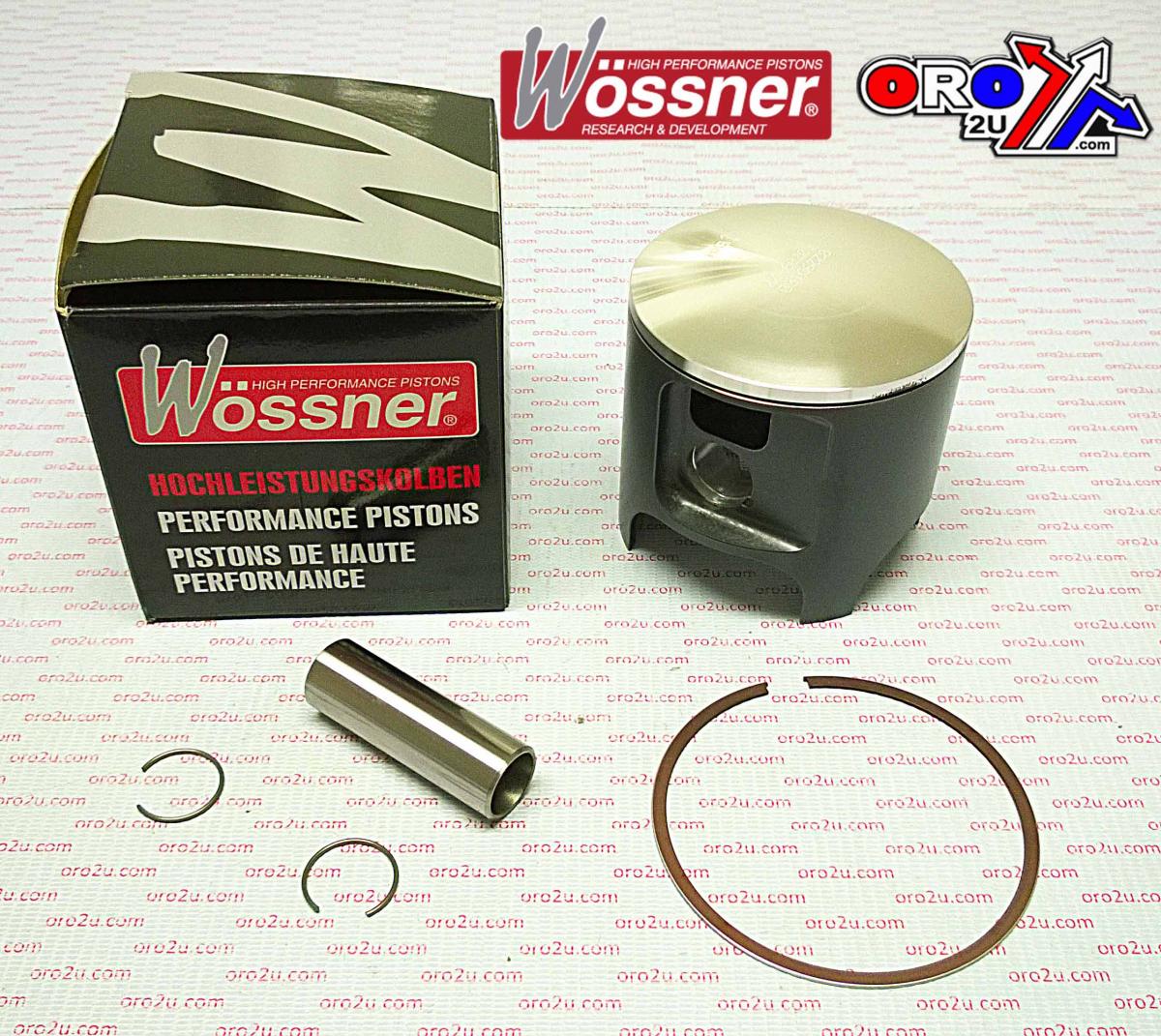

This Wossner piston kit features a 91.00mm bore size (90.92mm actual) and is designed for Honda CR500 (1984–2001) and CR480 (1982–1983) models. Manufactured in Germany, the forged piston offers high strength and efficient thermal management. The elliptical design ensures uniform distribution of thrust loads during thermal expansion, minimising localised stress and reducing the risk of piston failure.

Features

•


  Forged construction for enhanced strength and longevity





•


  Elliptical design promotes even thrust load distribution under heat





•


  Optimised for effective heat transfer to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 91.00mm (90.92mm)





•


  Display: 500 cm³





•


  Stroke: 79.00 mm





•


  Clearance: 0.08 mm





•


  Compression Height: 40.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8229D200





•


  Lock: CW20





•


  Pin: WP086





•


  Ring Set: RSC9100





•


  Connecting Rod: P2044





•


  Part No.: 56-W554+150.WO




Vehicle Fitments

•


  Honda CR500 1984–2001





•


  Honda CR480 1982–1983
