This Wossner piston kit (Part No. 8007D100) is designed for the Kawasaki KMX 125 produced between 1986 and 2005. Featuring a 55.00mm bore size (+1.00mm oversize), the kit includes a forged piston built for strength, reliability, and efficient thermal performance. Manufactured in Germany, the piston is engineered with an elliptical profile to ensure a consistent bearing surface under heat expansion, minimising risk of collapse during operation.

Features

•


  Wossner forged piston for enhanced strength and durability





•


  Designed for effective heat transfer from the combustion chamber to cylinder walls





•


  Elliptical design supports uniform bearing surface during thermal expansion





•


  Precision engineered for high-performance two-stroke applications





•


  Made in Germany




Specifications

•


  Bore Size: 55.00mm (+1.00mm oversize)





•


  Displacement: 125 cm³





•


  Stroke: 54.40mm





•


  Clearance: 0.06mm





•


  Compression Height: 32.80mm





•


  Compression Ratio: Not specified





•


  Dome Volume: Not provided





•


  Theoretical Weight: Not provided

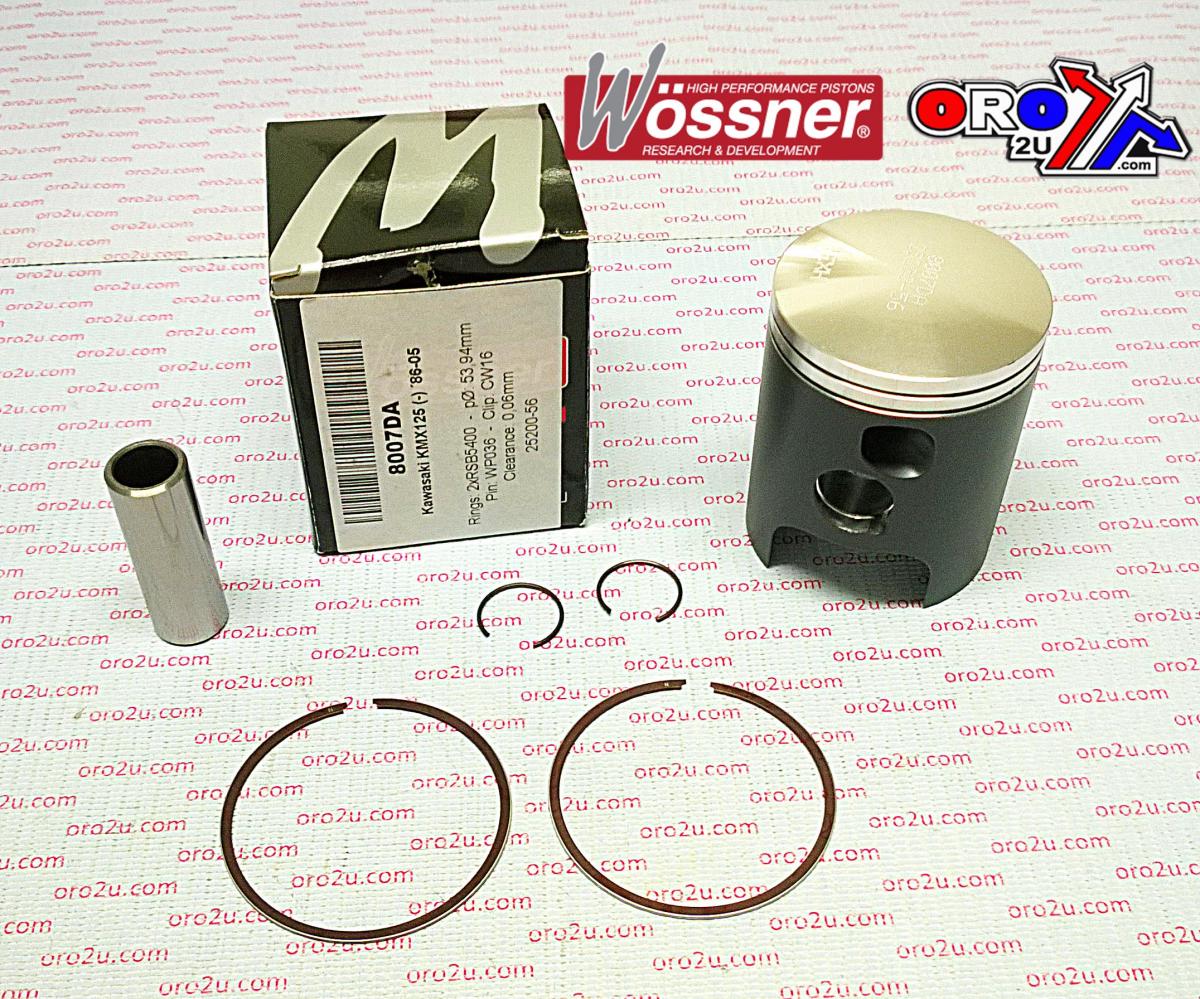

Included Parts

•


  Piston: 8007D100





•


  Rings: RSB5500 (x2)





•


  Wrist Pin: WP036





•


  Locks: CW16




Vehicle Fitments

•


  Kawasaki KMX 125 1986–2005
