PISTON KIT 86-09 KDX200 66.00, WOSSNER 8093DA KAWASAKI MX 13001-1219

PISTON KIT 86-09 KDX200 66.00, WOSSNER 8093DA KAWASAKI MX 13001-1219

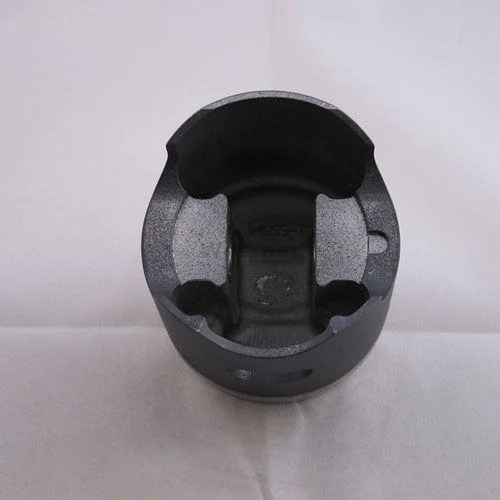

Wossner Forged Piston Kit 66.00mm Bore ā€“ Kawasaki KDX200 (1986ā€“2006)

This Wossner forged piston kit is manufactured for Kawasaki KDX200 models produced from 1986 to 2006. With a standard bore of 66.00 mm and a piston diameter of 65.94 mm, this kit delivers durability and performance in demanding 2-stroke engine conditions. The forged aluminium construction and elliptical design allow for superior heat transfer and even load distribution. Made in Germany for precision and reliability.



Features





  • Forged aluminium piston for increased strength




  • High-efficiency combustion heat dissipation to cylinder walls




  • Elliptical geometry for consistent thrust load distribution and reduced stress




  • Precision-manufactured in Germany





Specifications





  • Bore Size: 66.00 mm




  • Piston Diameter: 65.94 mm




  • Engine Displacement: 198 cmĀ³




  • Stroke: 58.00 mm




  • Clearance: 0.06 mm




  • Compression Height: 32.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference OEM Part Numbers





  • 13001-1219




  • 09104822




  • 711M06600





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8093DA




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6600 x 2




  • Rod: P2033





Vehicle Fitments





  • 1986 Kawasaki KDX 200




  • 1987 Kawasaki KDX 200




  • 1988 Kawasaki KDX 200




  • 1989 Kawasaki KDX 200




  • 1990 Kawasaki KDX 200




  • 1991 Kawasaki KDX 200




  • 1992 Kawasaki KDX 200




  • 1993 Kawasaki KDX 200




  • 1994 Kawasaki KDX 200




  • 1995 Kawasaki KDX 200




  • 1996 Kawasaki KDX 200




  • 1997 Kawasaki KDX 200




  • 1998 Kawasaki KDX 200




  • 1998 Kawasaki KDX 220




  • 1999 Kawasaki KDX 200




  • 2000ā€“2006 Kawasaki KDX 200



$288.07
PISTON KIT 86-09 KDX200 66.00, WOSSNER 8093DA KAWASAKI MX 13001-1219ā€”
$288.07

Product Information

Shipping & Returns

Description

Wossner Forged Piston Kit 66.00mm Bore ā€“ Kawasaki KDX200 (1986ā€“2006)

This Wossner forged piston kit is manufactured for Kawasaki KDX200 models produced from 1986 to 2006. With a standard bore of 66.00 mm and a piston diameter of 65.94 mm, this kit delivers durability and performance in demanding 2-stroke engine conditions. The forged aluminium construction and elliptical design allow for superior heat transfer and even load distribution. Made in Germany for precision and reliability.



Features





  • Forged aluminium piston for increased strength




  • High-efficiency combustion heat dissipation to cylinder walls




  • Elliptical geometry for consistent thrust load distribution and reduced stress




  • Precision-manufactured in Germany





Specifications





  • Bore Size: 66.00 mm




  • Piston Diameter: 65.94 mm




  • Engine Displacement: 198 cmĀ³




  • Stroke: 58.00 mm




  • Clearance: 0.06 mm




  • Compression Height: 32.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference OEM Part Numbers





  • 13001-1219




  • 09104822




  • 711M06600





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8093DA




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6600 x 2




  • Rod: P2033





Vehicle Fitments





  • 1986 Kawasaki KDX 200




  • 1987 Kawasaki KDX 200




  • 1988 Kawasaki KDX 200




  • 1989 Kawasaki KDX 200




  • 1990 Kawasaki KDX 200




  • 1991 Kawasaki KDX 200




  • 1992 Kawasaki KDX 200




  • 1993 Kawasaki KDX 200




  • 1994 Kawasaki KDX 200




  • 1995 Kawasaki KDX 200




  • 1996 Kawasaki KDX 200




  • 1997 Kawasaki KDX 200




  • 1998 Kawasaki KDX 200




  • 1998 Kawasaki KDX 220




  • 1999 Kawasaki KDX 200




  • 2000ā€“2006 Kawasaki KDX 200
