PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MX

PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MX

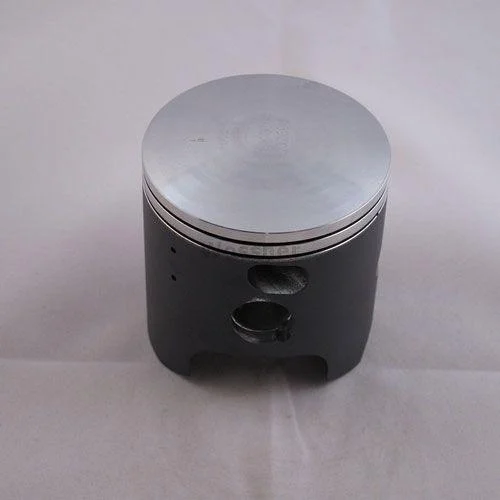

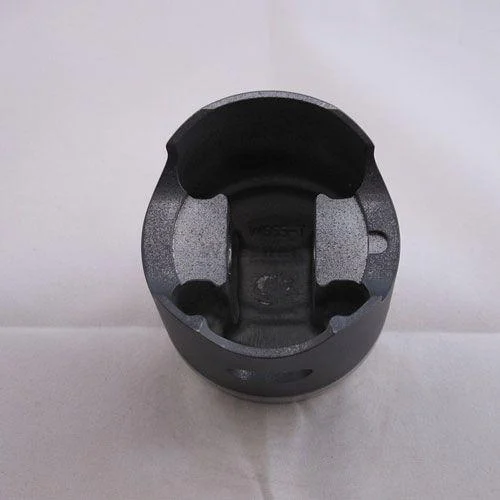

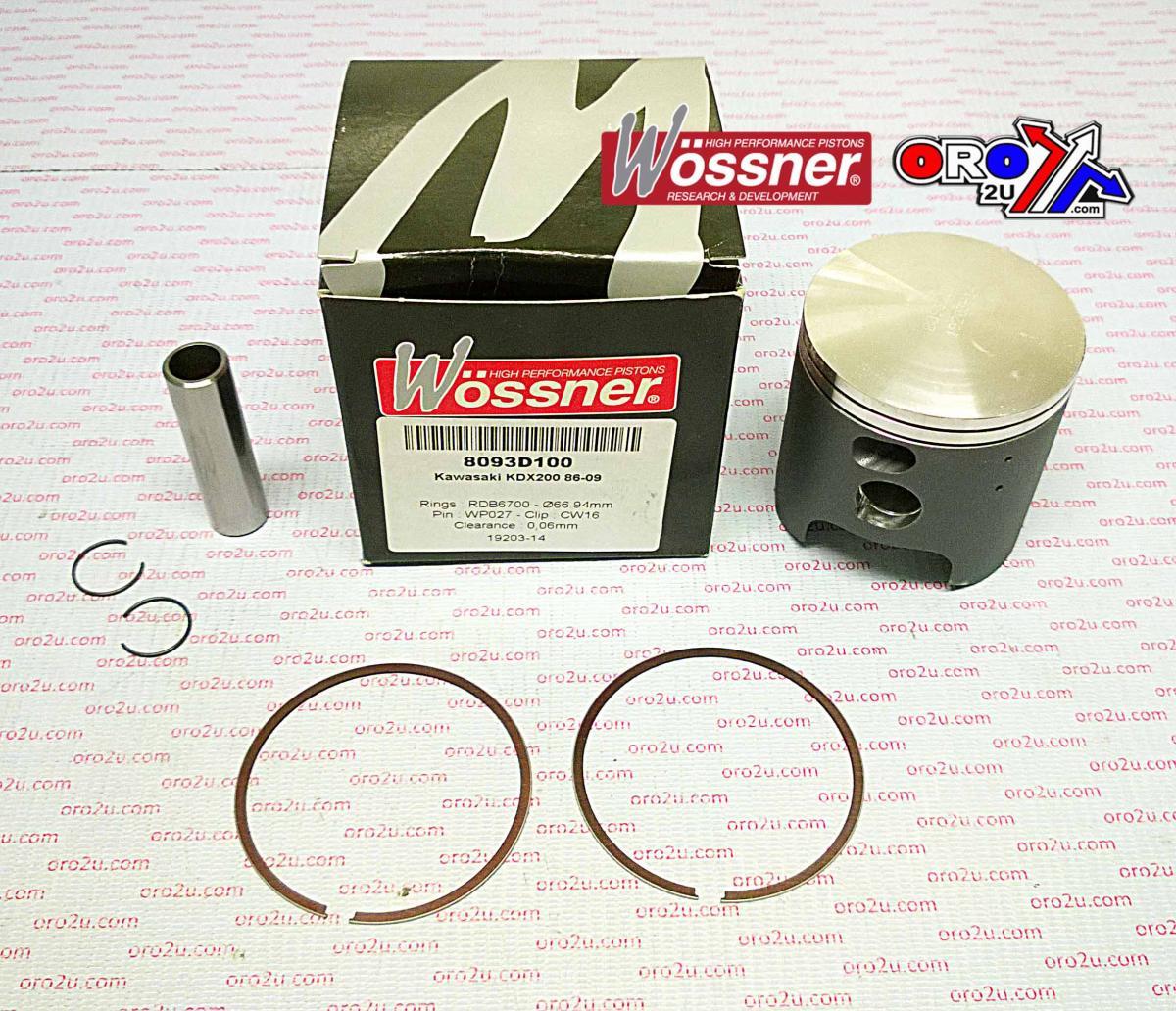

Wossner Forged Piston Kit 67.00mm Bore ā€“ Kawasaki KDX200 (1986ā€“2006)

This Wossner forged piston kit is designed for Kawasaki KDX200 models from 1986 to 2006, featuring a 67.00 mm bore and a piston diameter of 66.94 mm (+1.00 mm oversize). Engineered for high-performance 2-stroke applications, the pistonā€™s elliptical design and precision forging ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Made in Germany for accuracy and durability.



Features





  • Forged piston construction for superior strength




  • Efficient combustion heat dissipation to cylinder walls




  • Elliptical design supports even thrust load distribution and minimises pressure points




  • Precision manufactured in Germany





Specifications





  • Bore Size: 67.00 mm




  • Piston Diameter: 66.94 mm




  • Engine Displacement: 198 cmĀ³




  • Stroke: 58.00 mm




  • Clearance: 0.06 mm




  • Compression Height: 32.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8093D100




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6700 x 2




  • Rod: P2033





Vehicle Fitments





  • 1986 Kawasaki KDX 200




  • 1987 Kawasaki KDX 200




  • 1988 Kawasaki KDX 200




  • 1989 Kawasaki KDX 200




  • 1990 Kawasaki KDX 200




  • 1991 Kawasaki KDX 200




  • 1992 Kawasaki KDX 200




  • 1993 Kawasaki KDX 200




  • 1994 Kawasaki KDX 200




  • 1995 Kawasaki KDX 200




  • 1996 Kawasaki KDX 200




  • 1997 Kawasaki KDX 200




  • 1998 Kawasaki KDX 200




  • 1998 Kawasaki KDX 220




  • 1999 Kawasaki KDX 200




  • 2000ā€“2006 Kawasaki KDX 200



$266.73
PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MXā€”
$266.73

Product Information

Shipping & Returns

Description

Wossner Forged Piston Kit 67.00mm Bore ā€“ Kawasaki KDX200 (1986ā€“2006)

This Wossner forged piston kit is designed for Kawasaki KDX200 models from 1986 to 2006, featuring a 67.00 mm bore and a piston diameter of 66.94 mm (+1.00 mm oversize). Engineered for high-performance 2-stroke applications, the pistonā€™s elliptical design and precision forging ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Made in Germany for accuracy and durability.



Features





  • Forged piston construction for superior strength




  • Efficient combustion heat dissipation to cylinder walls




  • Elliptical design supports even thrust load distribution and minimises pressure points




  • Precision manufactured in Germany





Specifications





  • Bore Size: 67.00 mm




  • Piston Diameter: 66.94 mm




  • Engine Displacement: 198 cmĀ³




  • Stroke: 58.00 mm




  • Clearance: 0.06 mm




  • Compression Height: 32.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8093D100




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6700 x 2




  • Rod: P2033





Vehicle Fitments





  • 1986 Kawasaki KDX 200




  • 1987 Kawasaki KDX 200




  • 1988 Kawasaki KDX 200




  • 1989 Kawasaki KDX 200




  • 1990 Kawasaki KDX 200




  • 1991 Kawasaki KDX 200




  • 1992 Kawasaki KDX 200




  • 1993 Kawasaki KDX 200




  • 1994 Kawasaki KDX 200




  • 1995 Kawasaki KDX 200




  • 1996 Kawasaki KDX 200




  • 1997 Kawasaki KDX 200




  • 1998 Kawasaki KDX 200




  • 1998 Kawasaki KDX 220




  • 1999 Kawasaki KDX 200




  • 2000ā€“2006 Kawasaki KDX 200
