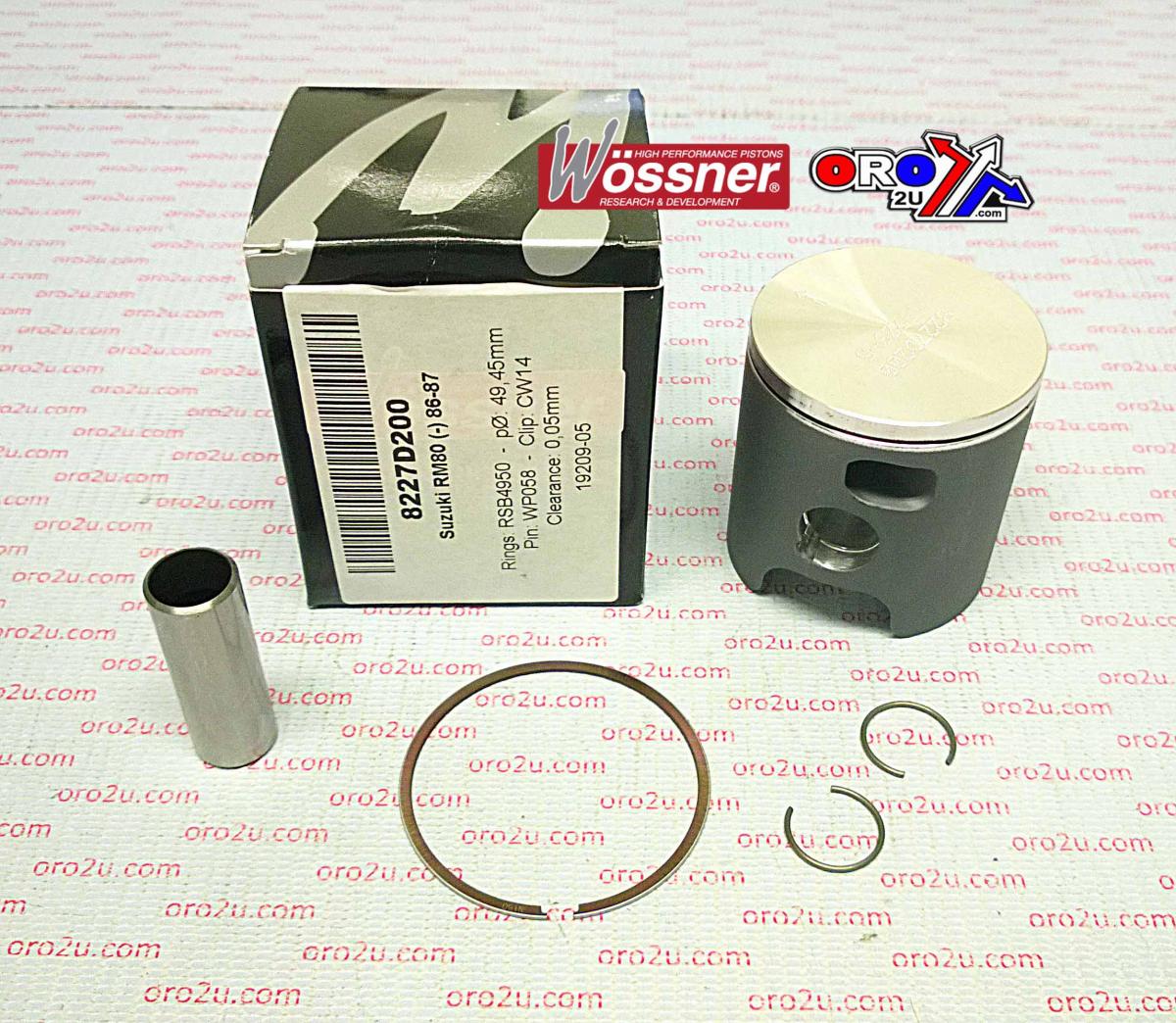

This Wossner piston kit features a 48mm bore size (47.95mm actual) and is designed for the Suzuki RM80 models from 1986 to 1987. Forged in Germany, Wossner pistons are engineered for superior strength and thermal efficiency. Their elliptical design promotes even thrust load distribution and prevents localised pressure, helping to reduce the risk of piston collapse during operation.

Features

•


  Forged construction for enhanced strength





•


  Elliptical design ensures even bearing surface under thermal expansion





•


  Improved heat transfer from combustion chamber to cylinder walls





•


  Designed and manufactured in Germany




Specifications

•


  Bore Size: 48mm (47.95mm)





•


  Display: 80 cm³





•


  Stroke: 46.80 mm





•


  Clearance: 0.05 mm





•


  Compression Height: 27.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8227D050





•


  Lock: CW14





•


  Pin: WP058





•


  Ring Set: RSB4800





•


  Part No.: 56-W542+050.WO




Vehicle Fitments

•


  Suzuki RM80 1986





•


  Suzuki RM80 1987
