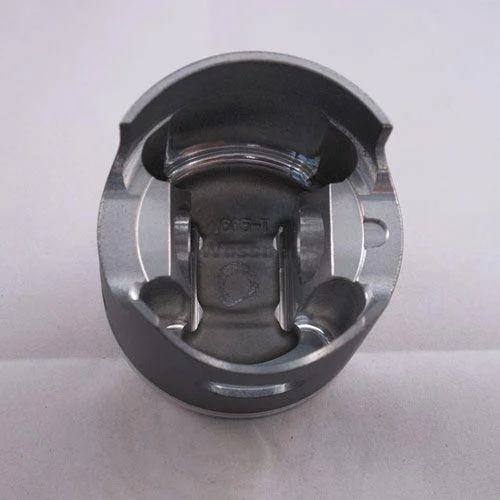

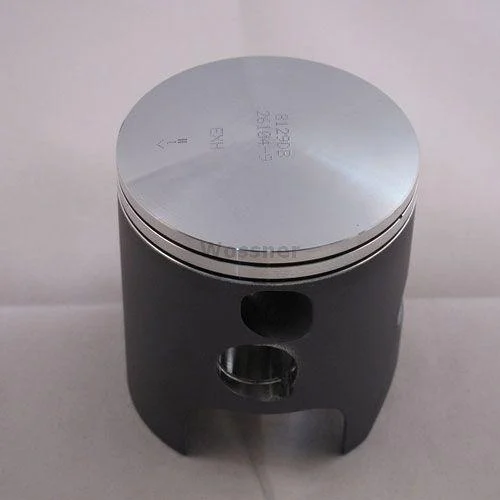

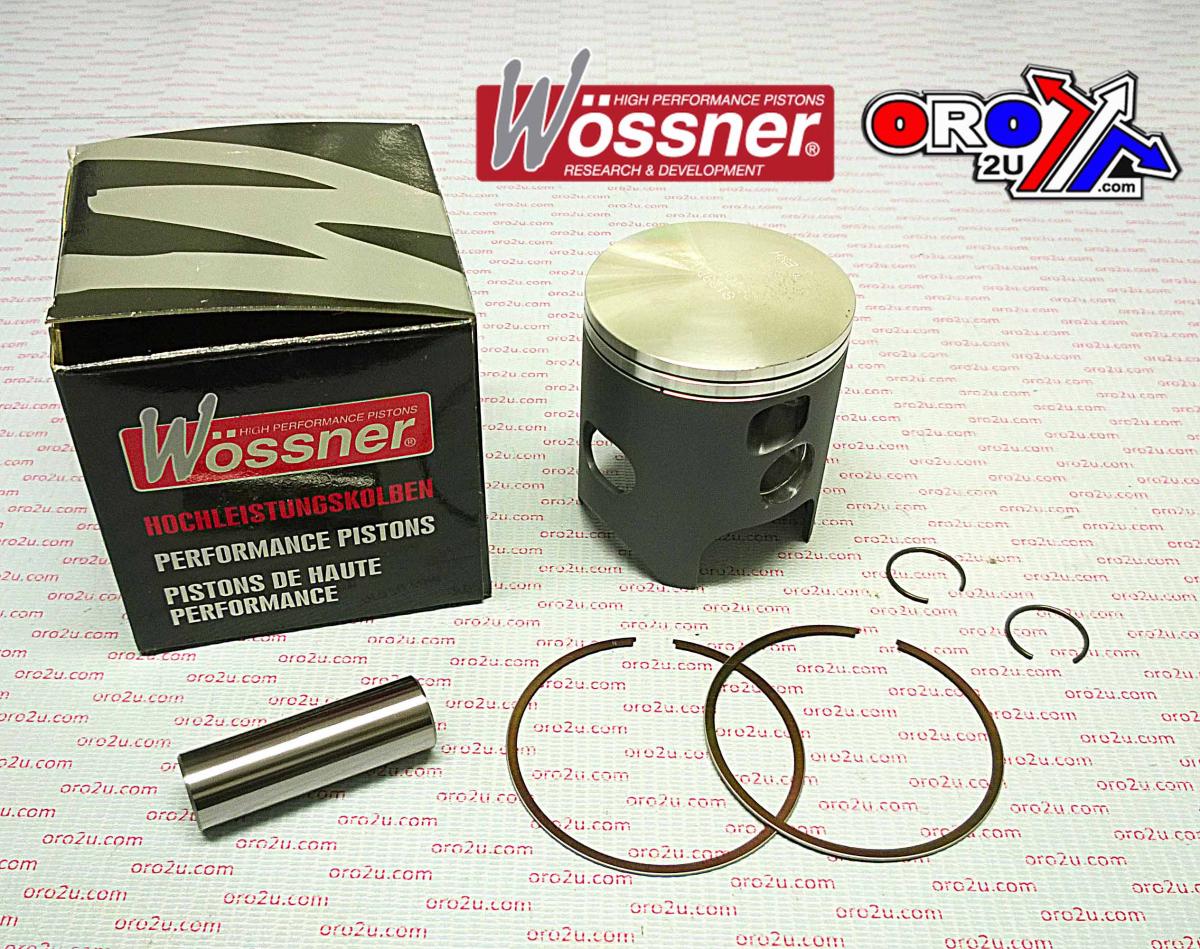

This Wossner 68.00mm (+0.60 oversize) forged piston kit is designed for Kawasaki KX250 models from 1987 to 1989. With a precision-engineered elliptical profile and forged construction, it offers improved structural integrity and thermal management under high-performance conditions. Made in Germany, this piston is optimised for two-stroke engines, ensuring efficient combustion heat transfer and uniform thrust load distribution.

Features

•


  Forged piston construction for enhanced strength





•


  Elliptical design supports uniform bearing surface under thermal expansion





•


  Distributes thrust loads evenly to reduce stress and prevent piston collapse





•


  Engineered for optimal heat transfer from combustion chamber to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore: 68.00mm





•


  Actual diameter: 67.94mm





•


  Displacement: 249 cm³





•


  Stroke: 70.00mm





•


  Clearance: 0.06mm





•


  Compression height: 37.00mm





•


  Compression ratio: 2-stroke




Cross-Reference OEM Part Numbers

•


  Piston Kit Part No.: 56-W556+060.WO





•


  Wossner Piston Kit No.: 8129D060





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6800 x 2




Vehicle Fitments

•


  Kawasaki KX250 1987





•


  Kawasaki KX250 1988





•


  Kawasaki KX250 1989
