PISTON KIT 88-04 KX500 88.00, WOSSNER 8228D200 KAWASAKI MX

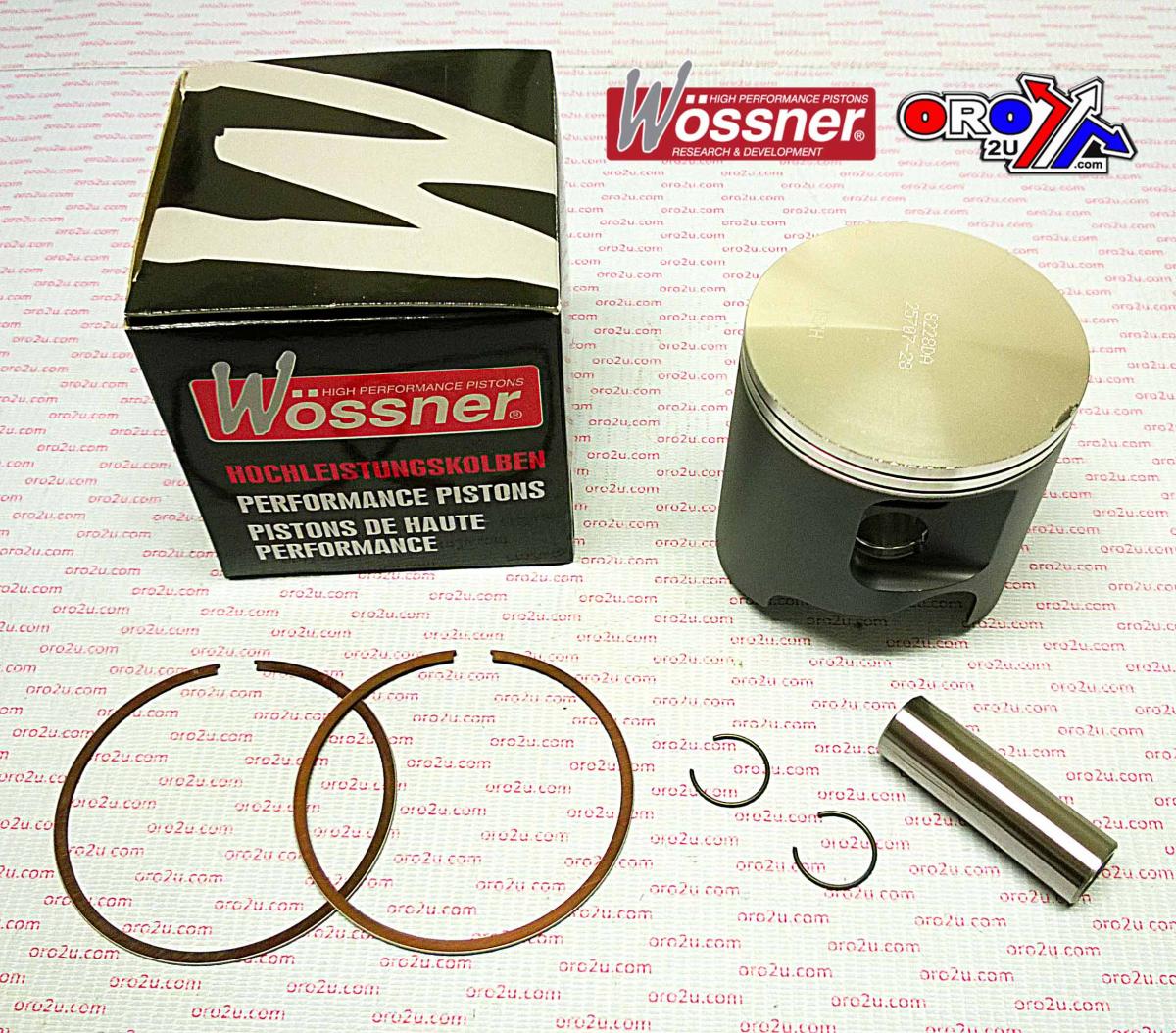

Wossner Forged Piston Kit 8228D200 ā 88.00mm Bore (+2.00) for Kawasaki KX500
The Wossner 8228D200 forged piston kit offers a +2.00 mm oversize option for Kawasaki KX500 engines, providing enhanced performance while maintaining engine reliability. This piston features an advanced elliptical profile, allowing for uniform expansion under high temperatures and preventing uneven pressure distribution. Designed to improve heat dissipation and mechanical efficiency, this German-made component is ideal for demanding two-stroke applications in both competition and recreational use.
Features
-
Forged construction for superior durability and stress resistance
-
Elliptical shape ensures balanced load distribution during thermal expansion
-
Engineered for efficient combustion chamber heat transfer
-
Manufactured in Germany with precision quality standards
Specifications
-
Bore Size: 88.00 mm (actual diameter 87.93 mm)
-
Stroke: 86.00 mm
-
Display Volume: 500 cmĀ³
-
Compression Height: 37.50 mm
-
Clearance: 0.07 mm
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8228D200
-
Lock: CW19
-
Pin: WP019
-
Ring Set: RSC8800 x2
-
Rod: P2039
-
Kit Part No: 56-W575.P8.WO
Vehicle Fitments
-
1988 Kawasaki KX500
-
1989 Kawasaki KX500
-
1990 Kawasaki KX500
-
1991 Kawasaki KX500
-
1992 Kawasaki KX500
-
1993 Kawasaki KX500
-
1994 Kawasaki KX500
-
1995 Kawasaki KX500
-
1996 Kawasaki KX500
-
1997 Kawasaki KX500
-
1998 Kawasaki KX500
-
1999 Kawasaki KX500
-
2000 Kawasaki KX500
-
2001 Kawasaki KX500
-
2002 Kawasaki KX500
-
2003 Kawasaki KX500
-
2004 Kawasaki KX500
