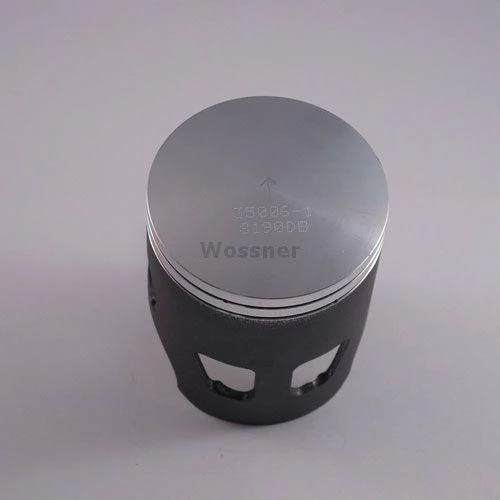

Wossner forged piston kit 8190DB is a +0.01mm oversized piston specifically crafted for the Honda MTX 125 RALLY models from 1988 to 1990. With a 56.01mm bore and high-precision design, it provides excellent strength, thermal efficiency, and reliability for standard rebuild applications. Made in Germany, this piston meets the demanding requirements of high-performance engines.

Features

•


  Forged construction provides superior mechanical strength





•


  Elliptical profile ensures uniform bearing surface under thermal expansion





•


  Optimised heat dissipation from combustion chamber to cylinder walls





•


  Even distribution of thrust loads reduces the risk of piston collapse





•


  Made in Germany




Specifications

•


  Bore: 56.01mm (Measured: 55.97mm)





•


  Display Volume: 124 cm³





•


  Stroke: 50.60mm





•


  Clearance: 0.04mm





•


  Compression Height: 30.60mm





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke





•


  Part No.: 56-W905.B (Wossner Piston Honda MTX125 56.01 mm Bore, PN# 8190DB)





•


  Lock P/N: CW16





•


  Pin P/N: WP036





•


  Ring Set P/N: RSB5600 x 2




Cross-Reference OEM Part Numbers

•


  Not provided




Vehicle Fitments

•


  1988 Honda MTX 125 RALLY





•


  1989 Honda MTX 125 RALLY





•


  1990 Honda MTX 125 RALLY
