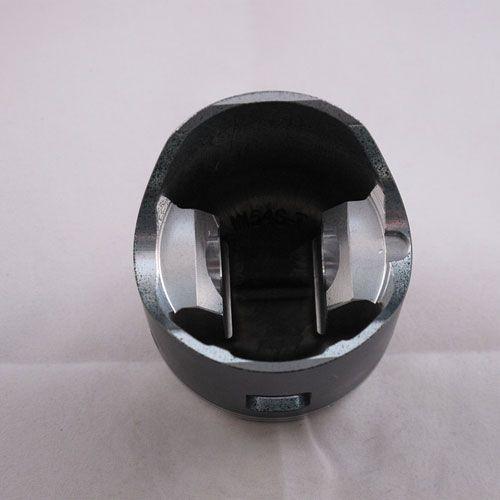

Wossner Forged Piston Kit 54.02mm Bore – Honda CR125 (1990–1991)

This Wossner forged piston kit is designed for use in Honda CR125 models from 1990 to 1991. With a bore size of 54.02 mm and a piston diameter of 53.96 mm, this component is built to withstand the rigorous demands of 2-stroke engine operation. The design incorporates superior heat transfer properties and structural integrity under thermal expansion. Manufactured in Germany to precision standards.

Features

•


  Forged for enhanced structural strength and performance





•


  Efficient heat dissipation from combustion chamber to cylinder walls





•


  Elliptical shape provides consistent bearing surface and balanced thrust load distribution





•


  Manufactured in Germany




Specifications

•


  Bore Size: 54.02 mm





•


  Piston Diameter: 53.96 mm





•


  Engine Displacement: 125 cm³





•


  Stroke: 54.50 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 28.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8107DC





•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5400





•


  Rod: P2009




Vehicle Fitments

•


  Honda CR125 (1990–1991)
