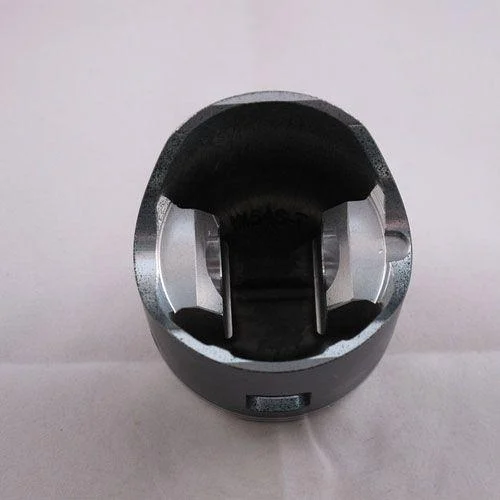

Wossner Forged Piston Kit 55.00mm Bore – Honda CR125 (1990–1991)

This Wossner forged piston kit is specifically designed for Honda CR125 motorcycles from 1990 to 1991. With a 55.00 mm bore and a piston diameter of 54.94 mm, this +1.00 oversise piston is crafted for high-performance 2-stroke engines. Its forged construction enhances structural strength and thermal reliability, while the elliptical design ensures uniform load distribution during operation. Manufactured in Germany to precision standards.

Features

•


  Forged piston for maximum strength and durability





•


  Optimised heat transfer from combustion chamber to cylinder walls





•


  Elliptical design ensures balanced thrust load distribution and reduces localised pressure





•


  Precision-made in Germany




Specifications

•


  Bore Size: 55.00 mm





•


  Piston Diameter: 54.94 mm





•


  Engine Displacement: 125 cm³





•


  Stroke: 54.50 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 28.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8107D100





•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5500





•


  Rod: P2009




Vehicle Fitments

•


  Honda CR125 (1990–1991)
