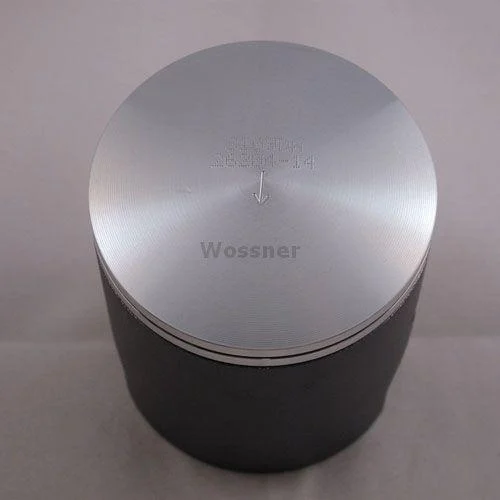

Wossner Forged Piston Kit 68.50mm Bore – Kawasaki KX250 / KDX250 (1990–1994)

This Wossner forged piston kit is made for Kawasaki KX250 and KDX250 models produced between 1990 and 1994. With a bore size of 68.50 mm and a piston diameter of 68.44 mm (+1.10 mm oversize), it is designed for overbored or re-sleeved cylinders. The piston’s forged construction ensures enhanced durability, while its elliptical shape promotes even pressure distribution under thermal expansion. Precision-manufactured in Germany for high-performance reliability.

Features

•


  Forged piston for maximum strength and extended durability





•


  Optimised combustion heat transfer to maintain cylinder integrity





•


  Elliptical geometry provides consistent load distribution and minimises piston wear





•


  Manufactured in Germany for precision and consistency




Specifications

•


  Bore Size: 68.50 mm





•


  Piston Diameter: 68.44 mm





•


  Engine Displacement: 250 cm³





•


  Stroke: 70.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 37.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference Wossner Part Numbers

•


  Piston Kit: 8109D110





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6850





•


  Rod: P2022




Vehicle Fitments

•


  1990 Kawasaki KX250





•


  1991 Kawasaki KX250





•


  1991 Kawasaki KDX250





•


  1992 Kawasaki KDX250





•


  1993 Kawasaki KDX250





•


  1994 Kawasaki KDX250
