PISTON KIT 91-94 KTM300 72.01, WOSSNER 8012DB FORGED

PISTON KIT 91-94 KTM300 72.01, WOSSNER 8012DB FORGED

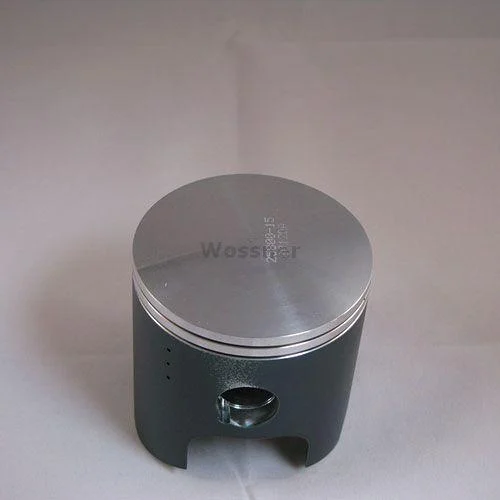

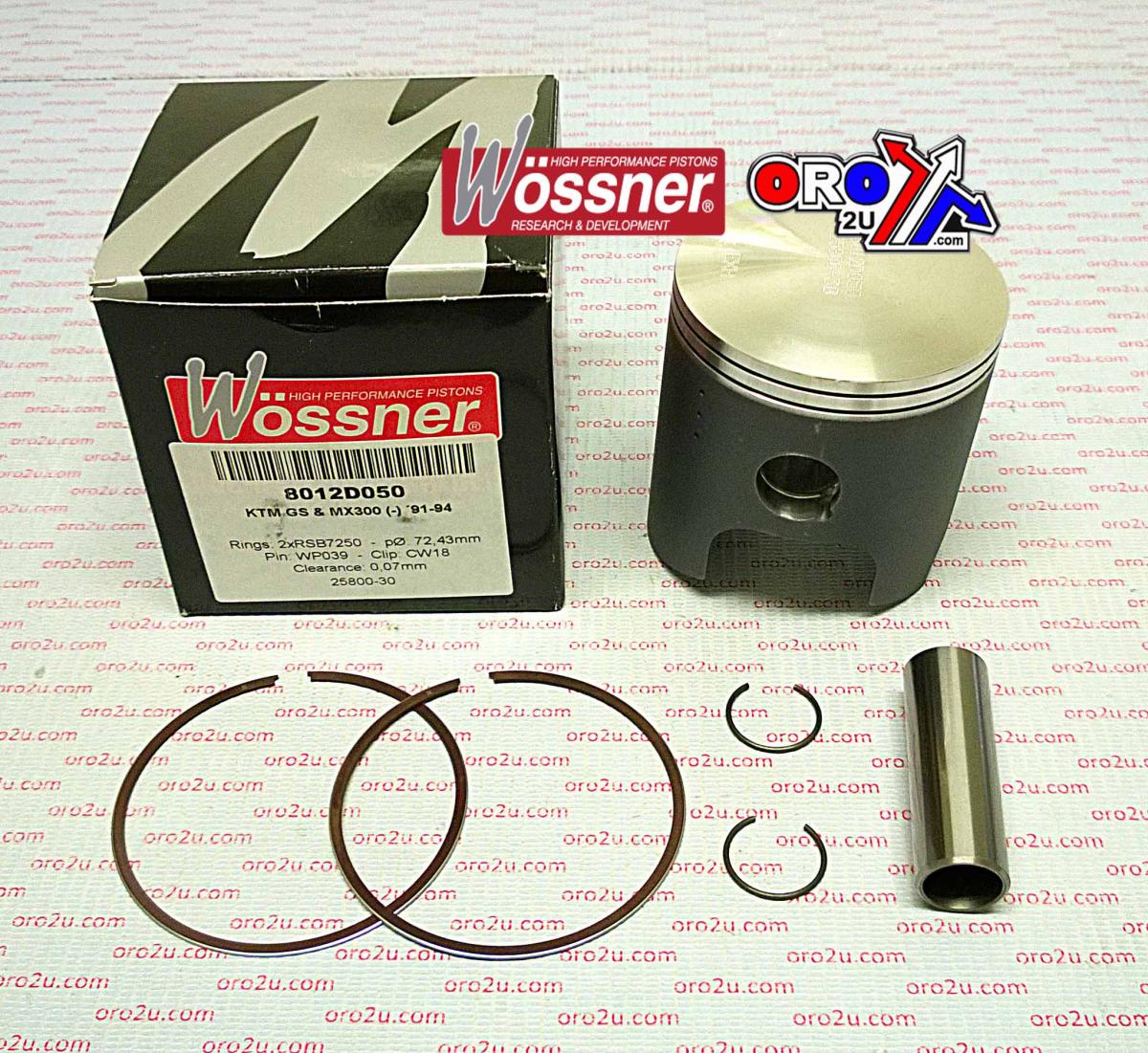

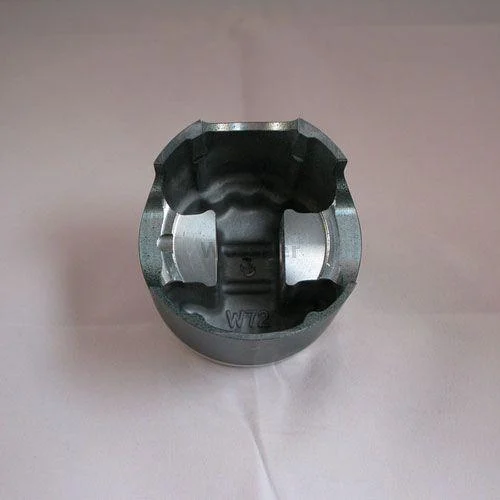

The Wossner 8012DA (+0.01) piston kit features a 72.01mm bore (actual 71.94mm) and is engineered for superior strength and effective heat transfer to cylinder walls. The forged, elliptically designed piston ensures a more uniform bearing surface during heat expansion, minimising localised pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this kit includes the necessary components for a durable rebuild and is suitable for KTM 300 models from 1990 to 1994.



Features





  • Forged piston construction for superior strength and longevity




  • Optimised for efficient combustion chamber heat transfer




  • Elliptical design provides a uniform bearing surface under heat expansion




  • Minimises localised pressure and prevents piston collapse




  • Made in Germany





Specifications





  • Bore Size: 72.01mm (Actual 71.94mm)




  • Display (cm³): 297




  • Stroke (mm): 72.00




  • Clearance (mm): 0.07




  • Compression Ratio (Wossner 2-stroke): 2 stroke




  • Compression Ratio (OEM 2-stroke): 2 stroke




  • Compression Height (mm): 29.70





Cross-Reference OEM Part Numbers





  • Wossner Piston Kit Part No: 8012DA (+0.01)




  • Lock Part No: CW18




  • Pin Part No: WP039




  • Ring Set Part No: RSB7200





Vehicle Fitments





  • 1990 KTM GS300




  • 1990 KTM MX300




  • 1990 KTM EXC300




  • 1991 KTM GS300




  • 1991 KTM MX300




  • 1991 KTM EXC300




  • 1992 KTM GS300




  • 1992 KTM MX300




  • 1992 KTM EXC300




  • 1993 KTM GS300




  • 1993 KTM MX300




  • 1993 KTM EXC300




  • 1994 KTM GS300




  • 1994 KTM MX300




  • 1994 KTM EXC300
