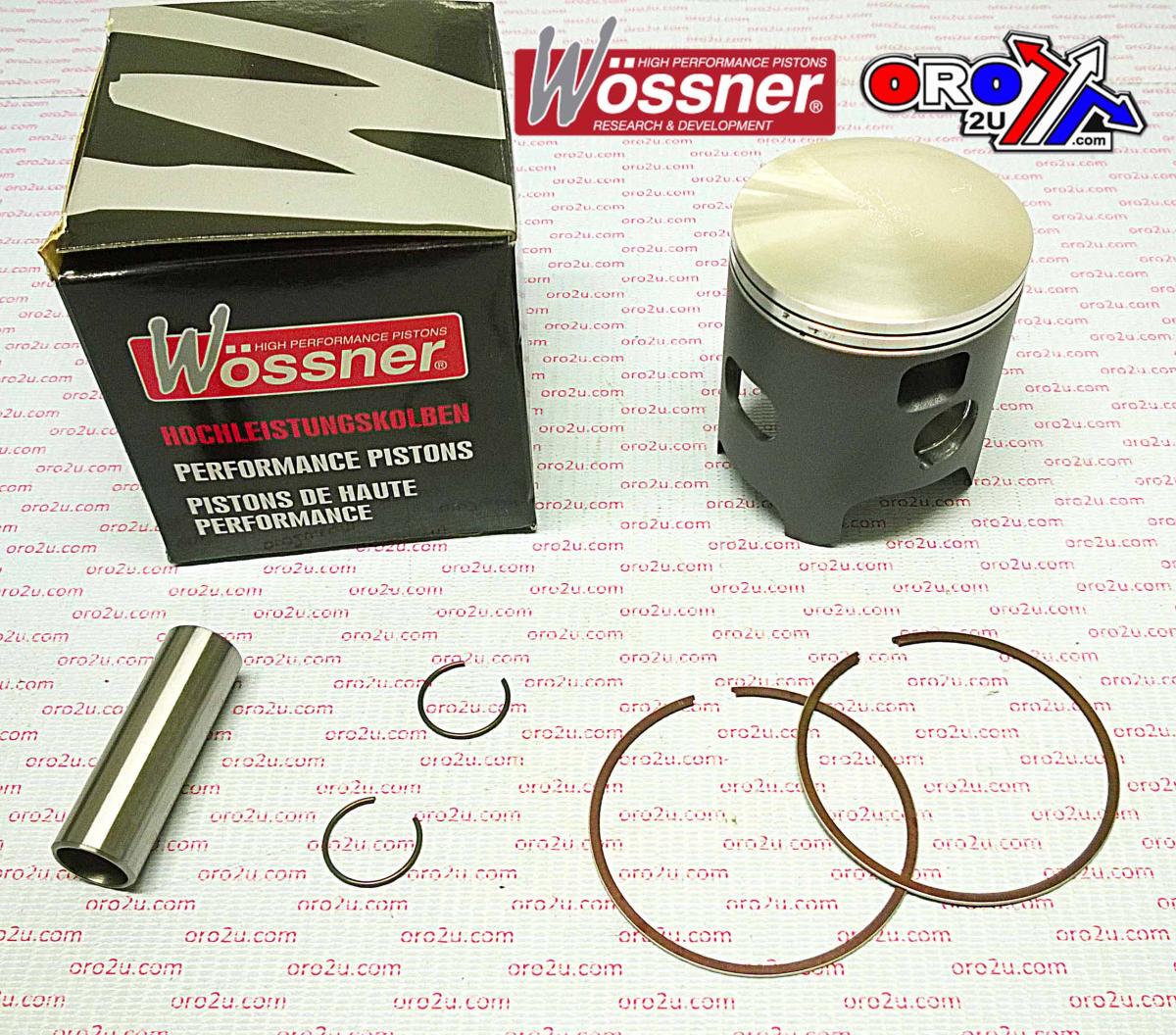

Wossner Forged Piston Kit 68.50mm Bore ā€“ Kawasaki KX250 (1992ā€“2001)

This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. Featuring a 68.50 mm bore and a piston diameter of 68.44 mm (+2.10 mm oversize), it is ideal for extensively overbored or re-sleeved cylinders. Forged for exceptional strength and thermal stability, the pistonā€™s elliptical profile ensures even bearing surface contact, reducing localised pressure and distributing thrust loads effectively. Precision-engineered in Germany for reliable, high-performance use.



Features





  • Forged construction offers superior strength and resistance to stress




  • Designed to enhance heat transfer from combustion chamber to cylinder walls




  • Elliptical geometry provides even load distribution and minimises wear




  • Manufactured in Germany for consistent fit and performance





Specifications





  • Bore Size: 68.50 mm




  • Piston Diameter: 68.44 mm




  • Engine Displacement: 249 cmĀ³




  • Stroke: 72.00 mm




  • Clearance: 0.06 mm




  • Compression Height: 38.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8026D210




  • Lock: CW18




  • Pin: WP033




  • Ring Set: RSB6850 x 2





Vehicle Fitments





  • 1992 Kawasaki KX250




  • 1993 Kawasaki KX250




  • 1994 Kawasaki KX250




  • 1995 Kawasaki KX250




  • 1996 Kawasaki KX250




  • 1997 Kawasaki KX250




  • 1998 Kawasaki KX250




  • 1999 Kawasaki KX250




  • 2000 Kawasaki KX250




  • 2001 Kawasaki KX250
