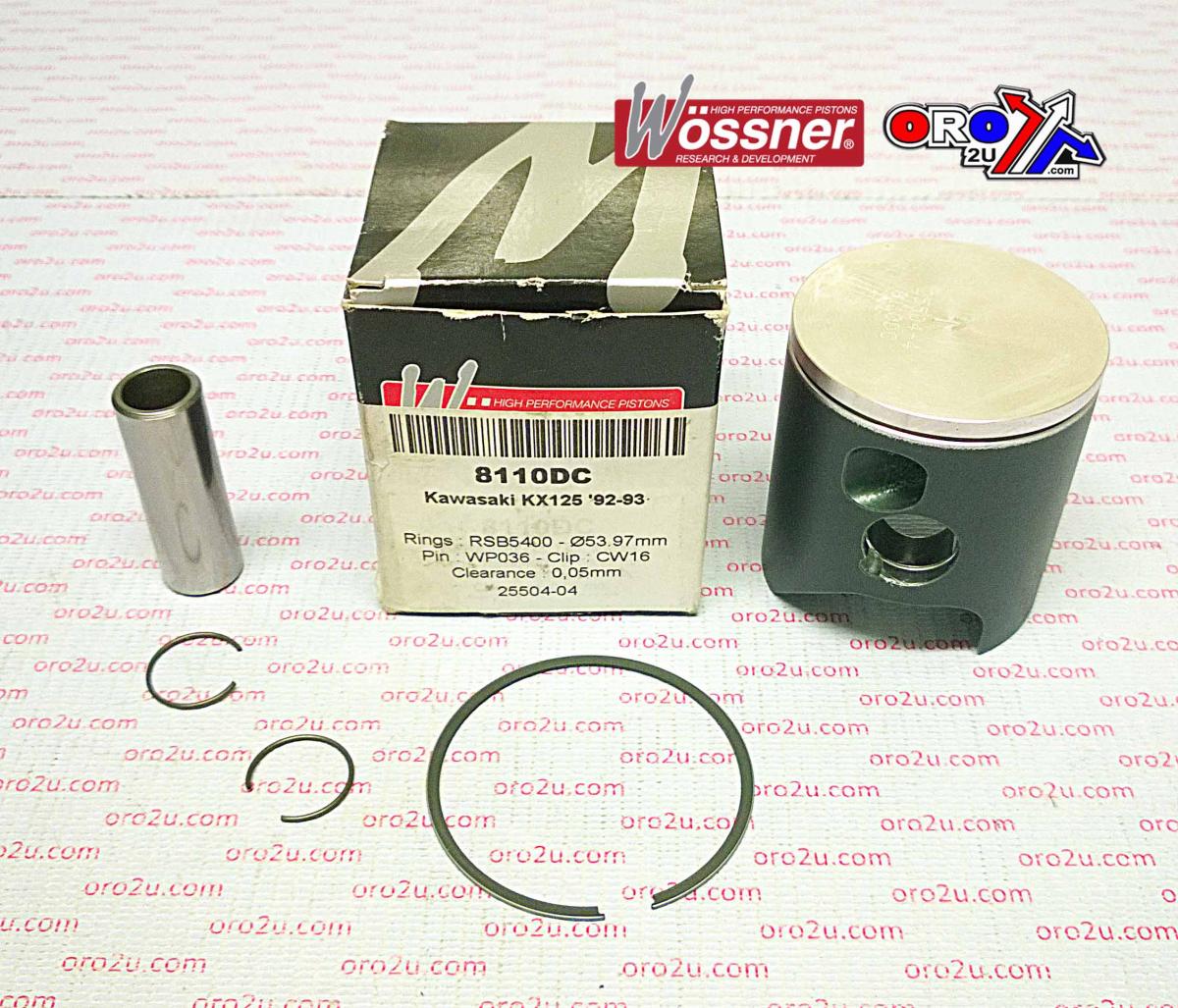

Wossner Forged Piston Kit 54.01mm Bore ā€“ Kawasaki KX125 (1992ā€“1993)

This Wossner forged piston kit is designed for Kawasaki KX125 models produced from 1992 to 1993. Featuring a bore size of 54.01 mm and a piston diameter of 53.95 mm (+0.01 mm oversize), it is ideal for lightly overbored cylinders. Forged in Germany, the piston delivers superior mechanical strength and excellent heat transfer. The elliptical design ensures uniform bearing surface contact, reducing localised stress and enhancing reliability in 2-stroke engine operation.



Features





  • Forged piston for enhanced durability and strength




  • Optimised heat transfer from combustion chamber to cylinder wall




  • Elliptical geometry reduces wear by evenly distributing thrust loads




  • Manufactured in Germany for consistent performance and fit





Specifications





  • Bore Size: 54.01 mm




  • Piston Diameter: 53.95 mm




  • Engine Displacement: 125 cmĀ³




  • Stroke: 54.50 mm




  • Clearance: 0.06 mm




  • Compression Height: 29.00 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8110DB




  • Lock: CW16




  • Pin: WP036




  • Ring Set: RSB5400




  • Rod: P2037





Vehicle Fitments





  • 1992 Kawasaki KX125




  • 1993 Kawasaki KX125



$73.75

Original: $210.72

-65%
PISTON KIT 92-93 KX125 54.00, WOSSNER 8110DB KAWASAKI MXā€”

$210.72

$73.75
