PISTON KIT 92-93 KX125 54.50, WOSSNER 8110D050 KAWASAKI MX

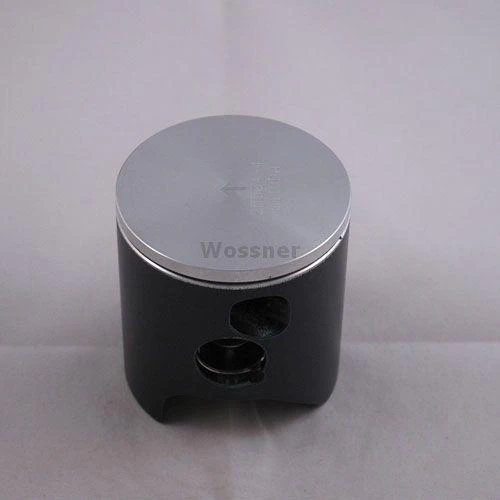

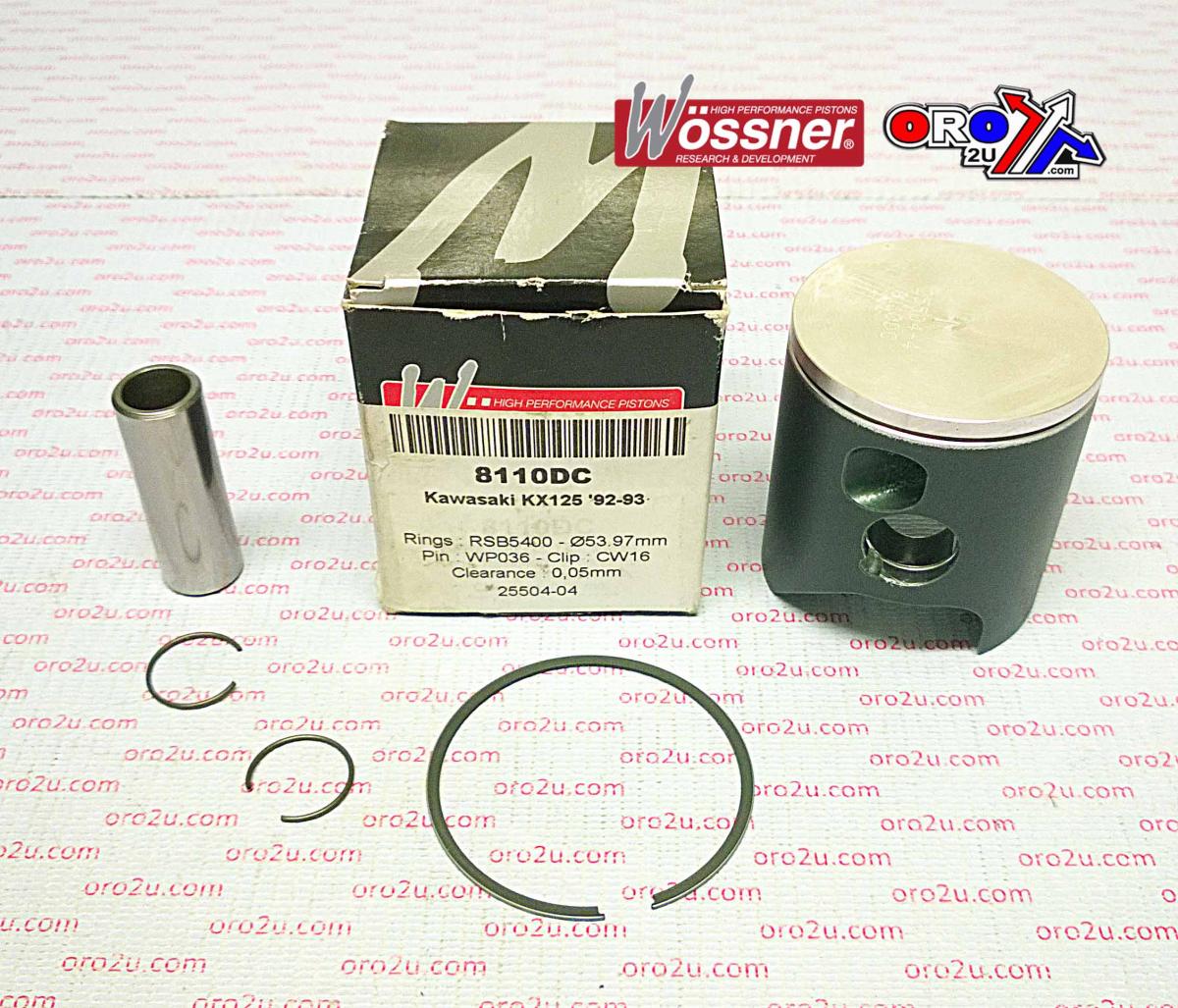

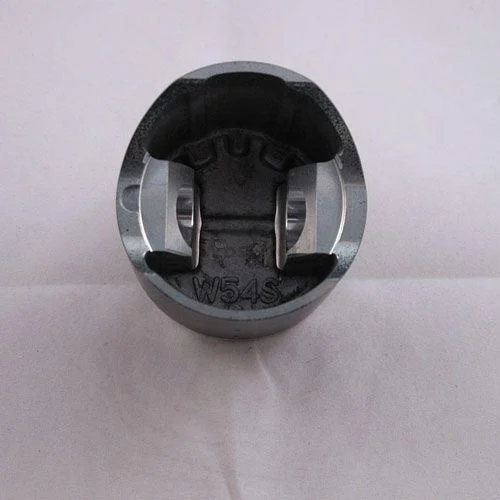

Wossner Forged Piston Kit 54.50mm Bore ā Kawasaki KX125 (1992ā1993)
This Wossner forged piston kit is designed for Kawasaki KX125 models from 1992 to 1993. With a bore size of 54.50 mm and a piston diameter of 54.44 mm (+0.50 mm oversize), it is intended for significantly overbored cylinders. Built for 2-stroke performance, the forged construction provides excellent strength and thermal stability, while the elliptical design promotes even thrust load distribution to minimise wear and stress. Manufactured in Germany for precise performance.
Features
-
Forged piston ensures superior mechanical strength and resistance to fatigue
-
Efficient combustion chamber heat transfer for enhanced engine cooling
-
Elliptical profile reduces localised pressure and distributes thrust loads evenly
-
Precision-manufactured in Germany
Specifications
-
Bore Size: 54.50 mm
-
Piston Diameter: 54.44 mm
-
Engine Displacement: 125 cmĀ³
-
Stroke: 54.50 mm
-
Clearance: 0.06 mm
-
Compression Height: 29.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8110D050
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5450
-
Rod: P2037
Vehicle Fitments
-
1992 Kawasaki KX125
-
1993 Kawasaki KX125
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PISTON KIT 92-93 KX125 54.50, WOSSNER 8110D050 KAWASAKI MX
PISTON KIT 92-93 KX125 54.50, WOSSNER 8110D050 KAWASAKI MX
Wossner Forged Piston Kit 54.50mm Bore ā Kawasaki KX125 (1992ā1993)
This Wossner forged piston kit is designed for Kawasaki KX125 models from 1992 to 1993. With a bore size of 54.50 mm and a piston diameter of 54.44 mm (+0.50 mm oversize), it is intended for significantly overbored cylinders. Built for 2-stroke performance, the forged construction provides excellent strength and thermal stability, while the elliptical design promotes even thrust load distribution to minimise wear and stress. Manufactured in Germany for precise performance.
Features
-
Forged piston ensures superior mechanical strength and resistance to fatigue
-
Efficient combustion chamber heat transfer for enhanced engine cooling
-
Elliptical profile reduces localised pressure and distributes thrust loads evenly
-
Precision-manufactured in Germany
Specifications
-
Bore Size: 54.50 mm
-
Piston Diameter: 54.44 mm
-
Engine Displacement: 125 cmĀ³
-
Stroke: 54.50 mm
-
Clearance: 0.06 mm
-
Compression Height: 29.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8110D050
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5450
-
Rod: P2037
Vehicle Fitments
-
1992 Kawasaki KX125
-
1993 Kawasaki KX125
Original: $230.72
-65%$230.72
$80.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wossner Forged Piston Kit 54.50mm Bore ā Kawasaki KX125 (1992ā1993)
This Wossner forged piston kit is designed for Kawasaki KX125 models from 1992 to 1993. With a bore size of 54.50 mm and a piston diameter of 54.44 mm (+0.50 mm oversize), it is intended for significantly overbored cylinders. Built for 2-stroke performance, the forged construction provides excellent strength and thermal stability, while the elliptical design promotes even thrust load distribution to minimise wear and stress. Manufactured in Germany for precise performance.
Features
-
Forged piston ensures superior mechanical strength and resistance to fatigue
-
Efficient combustion chamber heat transfer for enhanced engine cooling
-
Elliptical profile reduces localised pressure and distributes thrust loads evenly
-
Precision-manufactured in Germany
Specifications
-
Bore Size: 54.50 mm
-
Piston Diameter: 54.44 mm
-
Engine Displacement: 125 cmĀ³
-
Stroke: 54.50 mm
-
Clearance: 0.06 mm
-
Compression Height: 29.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8110D050
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5450
-
Rod: P2037
Vehicle Fitments
-
1992 Kawasaki KX125
-
1993 Kawasaki KX125
