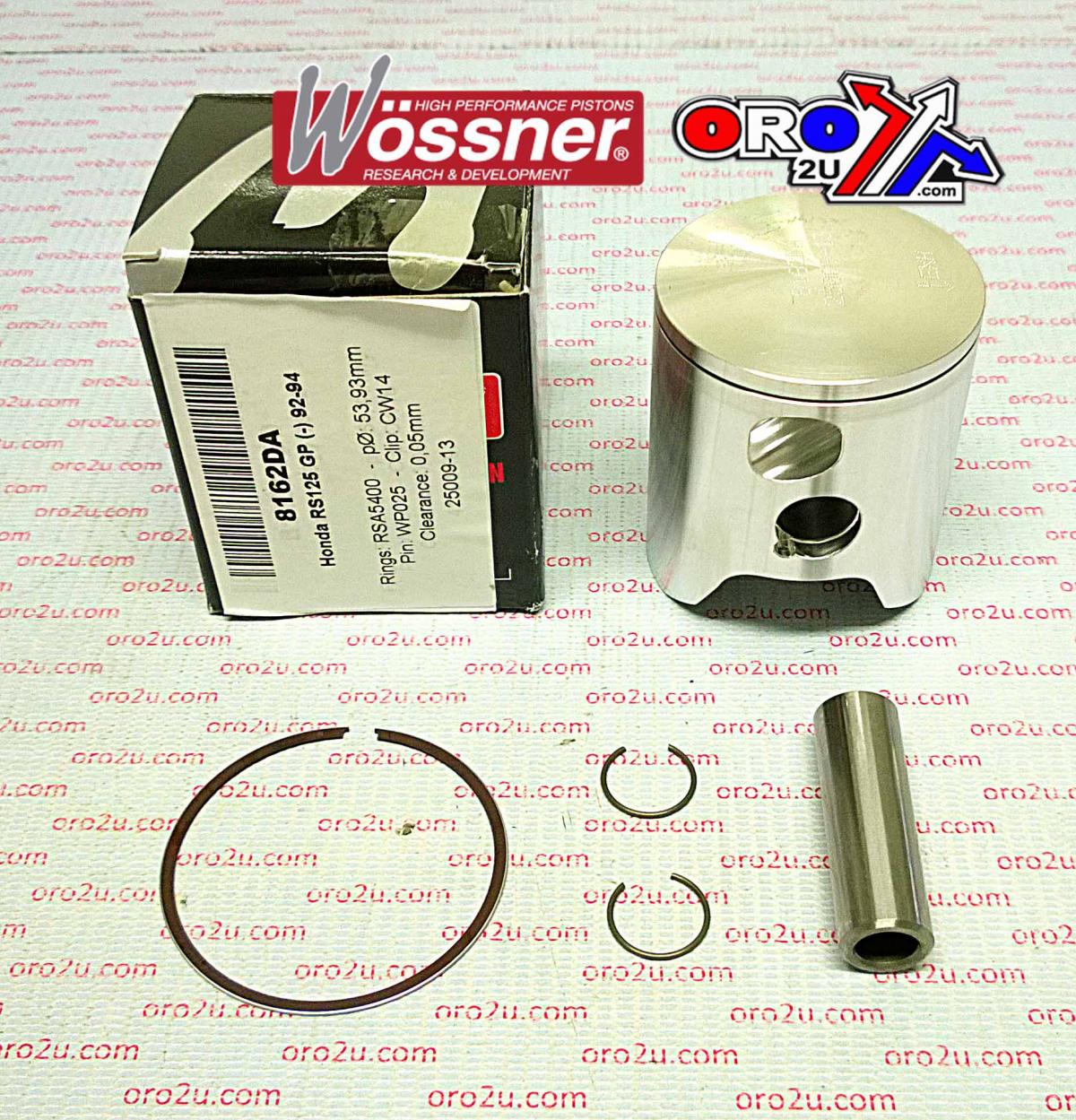

This Wossner forged piston kit with a nominal bore of 54mm (actual 53.93mm) is designed for Honda RS125 GP motorcycles from 1992 to 1994. Crafted to endure the demands of two-stroke racing engines, it provides enhanced strength, thermal performance, and load distribution.

Features

•


  Forged for superior strength and resistance to stress





•


  Elliptical contour reduces localised pressure and improves load distribution





•


  Facilitates optimal heat transfer to cylinder walls





•


  Manufactured in Germany for precision and reliability




Specifications

•


  Bore Size: 54mm (actual 53.93mm)





•


  Stroke: 54.50 mm





•


  Clearance: 0.07 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 30.00 mm





•


  Lock Part Number: CW15





•


  Pin Part Number: WP025





•


  Ring Set Part Number: RSA5400




Vehicle Fitments

•


  Honda RS125 GP 1992





•


  Honda RS125 GP 1993





•


  Honda RS125 GP 1994
