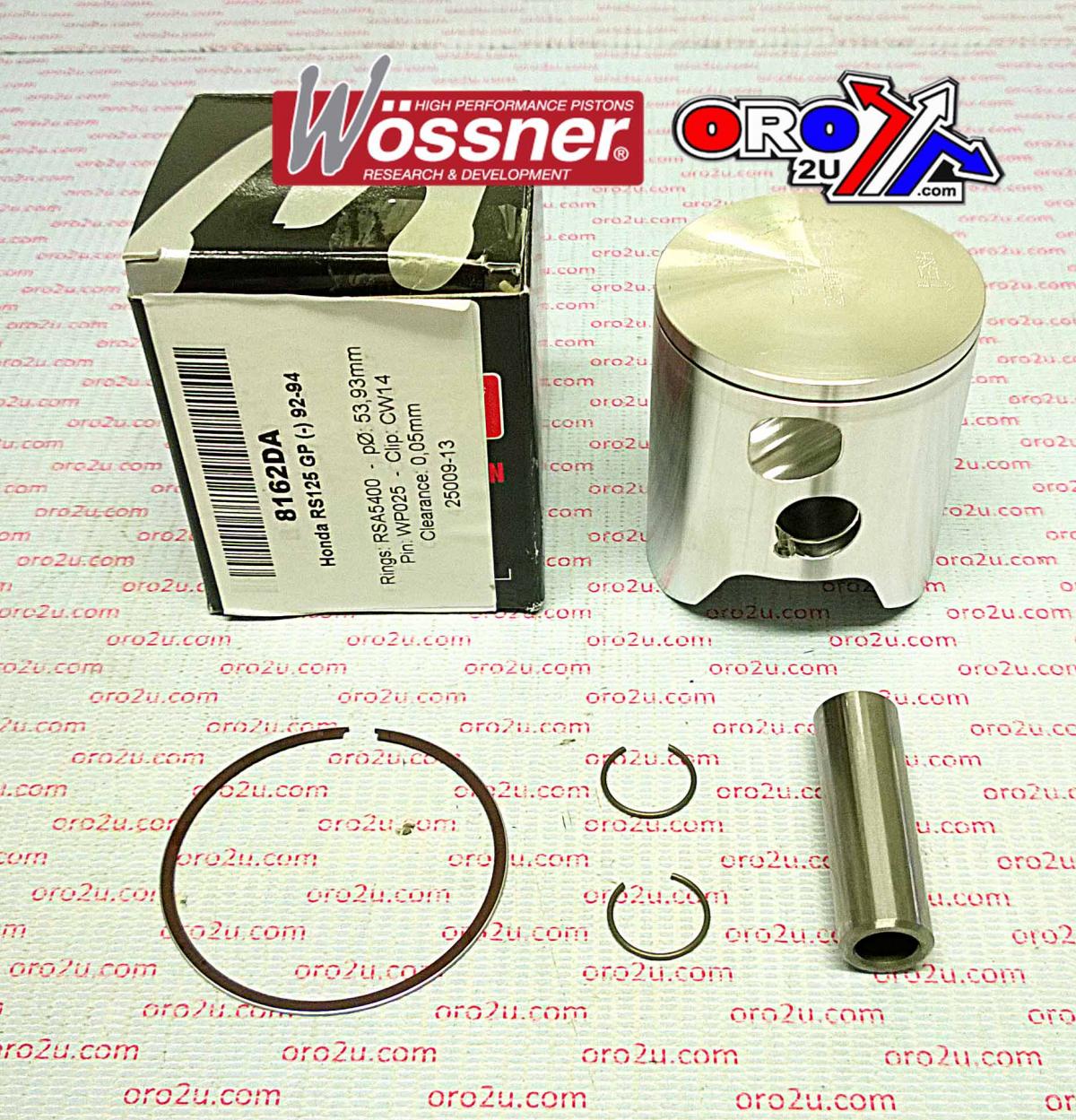

This Wossner forged piston kit with a 54.03mm nominal bore (actual 53.96mm) is a +0.03mm oversize replacement for the Honda RS125 GP models from 1992 to 1994. Built for two-stroke race applications, it offers robust construction and optimised thermal performance to handle high engine demands.

Features

•


  Forged piston design ensures superior strength and thermal conductivity





•


  Elliptical profile aids in uniform load distribution under thermal expansion





•


  Manufactured in Germany to high-performance standards




Specifications

•


  Bore Size: 54.03mm (actual 53.96mm)





•


  Stroke: 54.50 mm





•


  Clearance: 0.07 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 30.00 mm





•


  Lock Part Number: CW15





•


  Pin Part Number: WP025





•


  Ring Set Part Number: RSA5400




Vehicle Fitments

•


  Honda RS125 GP 1992





•


  Honda RS125 GP 1993





•


  Honda RS125 GP 1994
