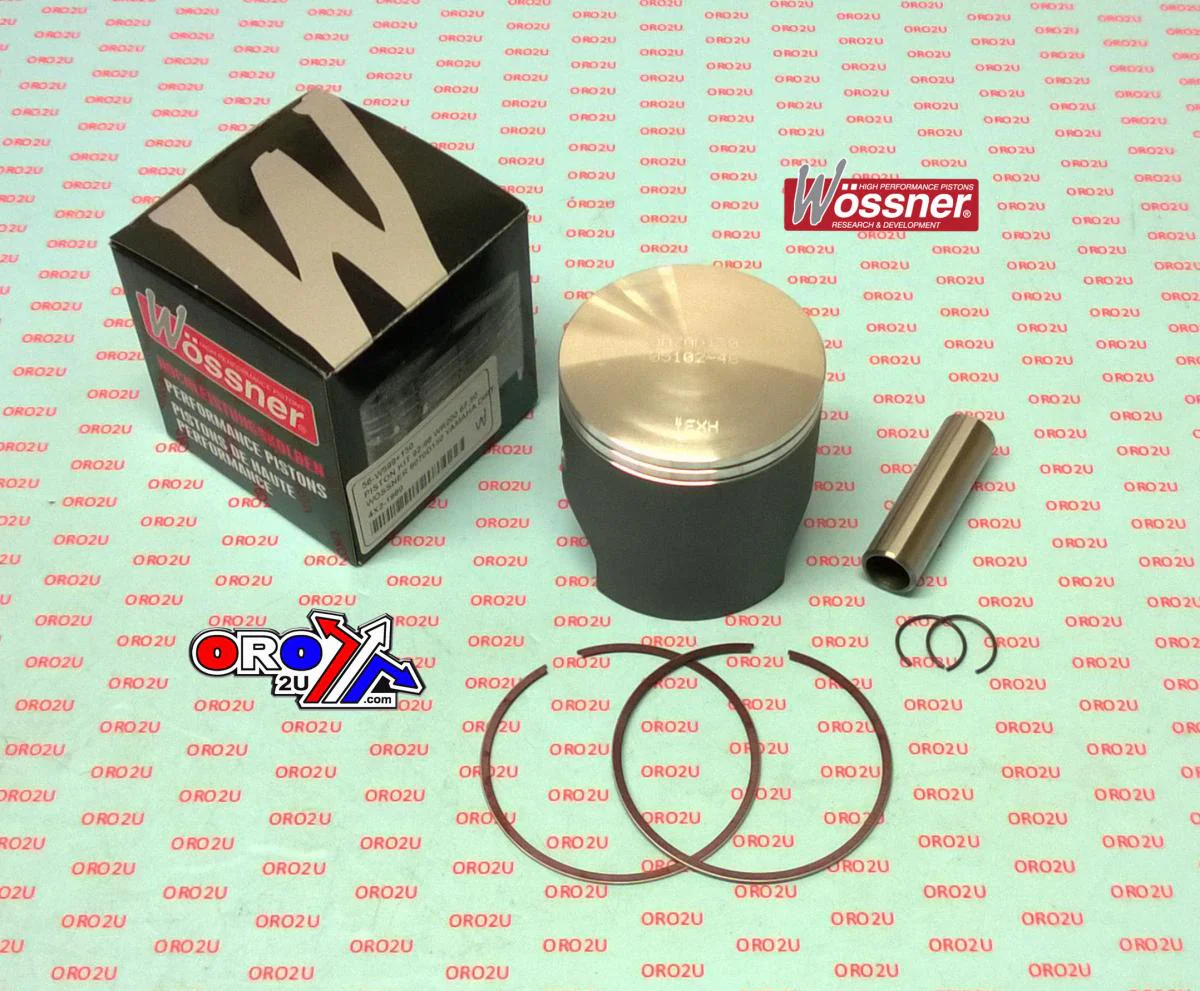

Wossner Forged Piston Kit 67.50mm Bore – Yamaha DT200R / WR200

This Wossner forged piston kit is intended for Yamaha DT200R (1988–1991) and WR200 (1992–1998) models, offering a 67.50 mm bore and 67.44 mm piston diameter (+1.50 mm oversize). Designed for high-performance 2-stroke applications, the piston is forged for enhanced durability and features an elliptical profile for optimal load distribution during thermal expansion. German-made for precision and consistency.

Features

•


  Forged construction for increased strength and reliability





•


  Enhanced heat transfer from combustion chamber to cylinder walls





•


  Elliptical design ensures even pressure distribution and reduces piston stress





•


  Manufactured in Germany




Specifications

•


  Bore Size: 67.50 mm





•


  Piston Diameter: 67.44 mm





•


  Engine Displacement: 195 cm³





•


  Stroke: 57.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 29.90 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference Wossner Part Numbers

•


  Piston Kit: 8070D150





•


  Lock: CW16





•


  Pin: WP027





•


  Ring Set: RSB6750 x 2




Vehicle Fitments

•


  Yamaha DT200R (1988–1991)





•


  Yamaha WR200 (1992–1998)
