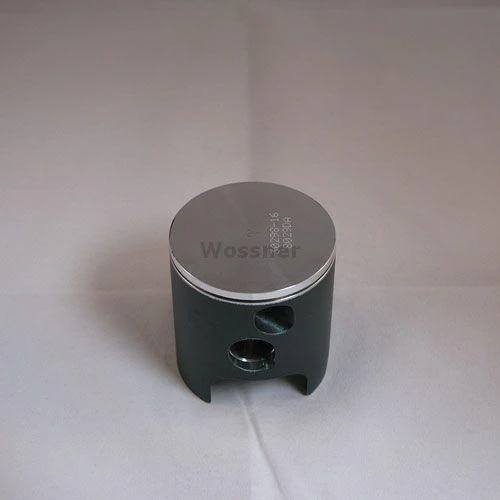

This Wossner piston kit with a 56.19mm bore (+2.00mm oversize) is engineered for KTM 125cc two-stroke models from 1994 to 2000. Precision-forged in Germany, it provides enhanced strength and optimal heat dissipation for high-performance applications.

Features

•


  Forged piston construction for maximum strength and engine reliability





•


  Designed for optimal heat transfer from combustion chamber to cylinder walls





•


  Elliptical design ensures uniform bearing surface during heat expansion to prevent localised stress and piston collapse





•


  Manufactured in Germany for precision and quality




Specifications

•


  Bore size: 56.19 mm





•


  Actual piston size: 56.19 mm





•


  Display (cm³): 125





•


  Stroke (mm): 54.10





•


  Clearance (mm): 0.06





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height (mm): 28.00




Cross-Reference OEM Part Numbers

•


  Not specified




Vehicle Fitments

•


  1994 KTM 125 EGS





•


  1994 KTM 125 GS





•


  1994 KTM 125 SX





•


  1994 KTM EXC 125





•


  1995 KTM 125 EGS





•


  1995 KTM 125 GS





•


  1995 KTM 125 SX





•


  1995 KTM EXC 125





•


  1996 KTM 125 EGS





•


  1996 KTM 125 GS





•


  1996 KTM 125 SX





•


  1996 KTM EXC 125





•


  1997 KTM 125 EGS





•


  1997 KTM 125 GS





•


  1997 KTM 125 SX





•


  1997 KTM EXC 125





•


  1998 KTM SX125





•


  1998 KTM EXC125





•


  1999 KTM SX125





•


  1999 KTM EXC125





•


  2000 KTM SX125





•


  2000 KTM EXC125




Included Components

•


  Piston: Wossner PN# 8029D200





•


  Lock: PN# CW15





•


  Pin: PN# WP032





•


  Ring Set: PN# RSB5625





•


  Rod: PN# P2056
