PISTON KIT 95-97 KX125 54.00 C, WOSSNER 8112DC KAWASAKI MX

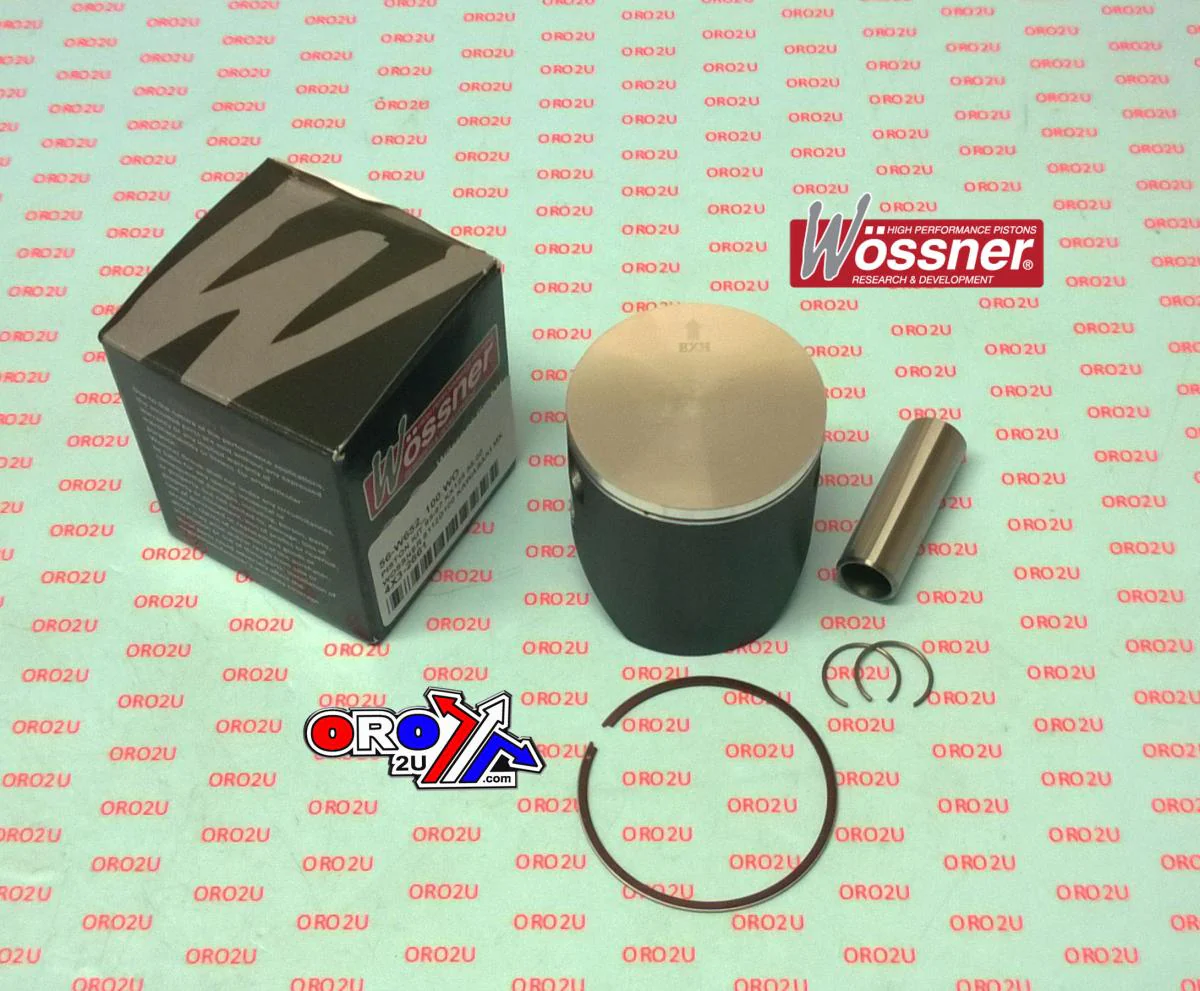

The Wossner 8112DC piston kit, with a 54.02mm bore (+0.02mm oversize), is designed for Kawasaki KX125 models from 1995 to 1997. This forged piston features an elliptical profile that promotes uniform bearing contact under thermal expansion, reducing the risk of localised pressure and collapse. Manufactured in Germany, it provides consistent performance and durability in high-demand 2-stroke engine applications.
Features
-
Forged piston construction for enhanced strength and durability
-
Elliptical design ensures even pressure distribution and reduced wear
-
Engineered for optimal combustion heat transfer to cylinder walls
-
Precision manufactured in Germany
Specifications
-
Bore Size: 54.02 mm (+0.02 mm oversize)
-
Display Displacement: 125 cmĀ³
-
Stroke: 54.50 mm
-
Piston Clearance: 0.06 mm
-
Compression Height: 29.50 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8112DC
-
Lock: CW15
-
Pin: WP032
-
Ring Set: RSB5400
-
Rod: 2038
-
Internal Reference Part No.: 56-W652.C.WO
Vehicle Fitments
-
Kawasaki KX125: 1995ā1997
