PISTON KIT 95-97 KX125 56.00, WOSSNER 8112D200 KAWASAKI MX

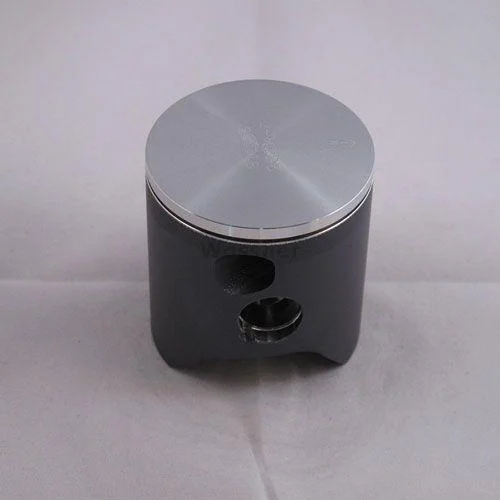

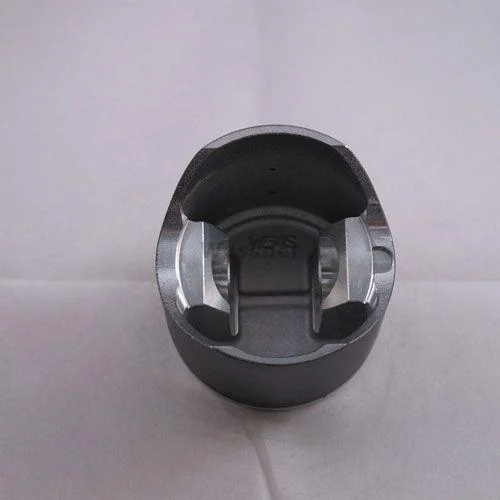

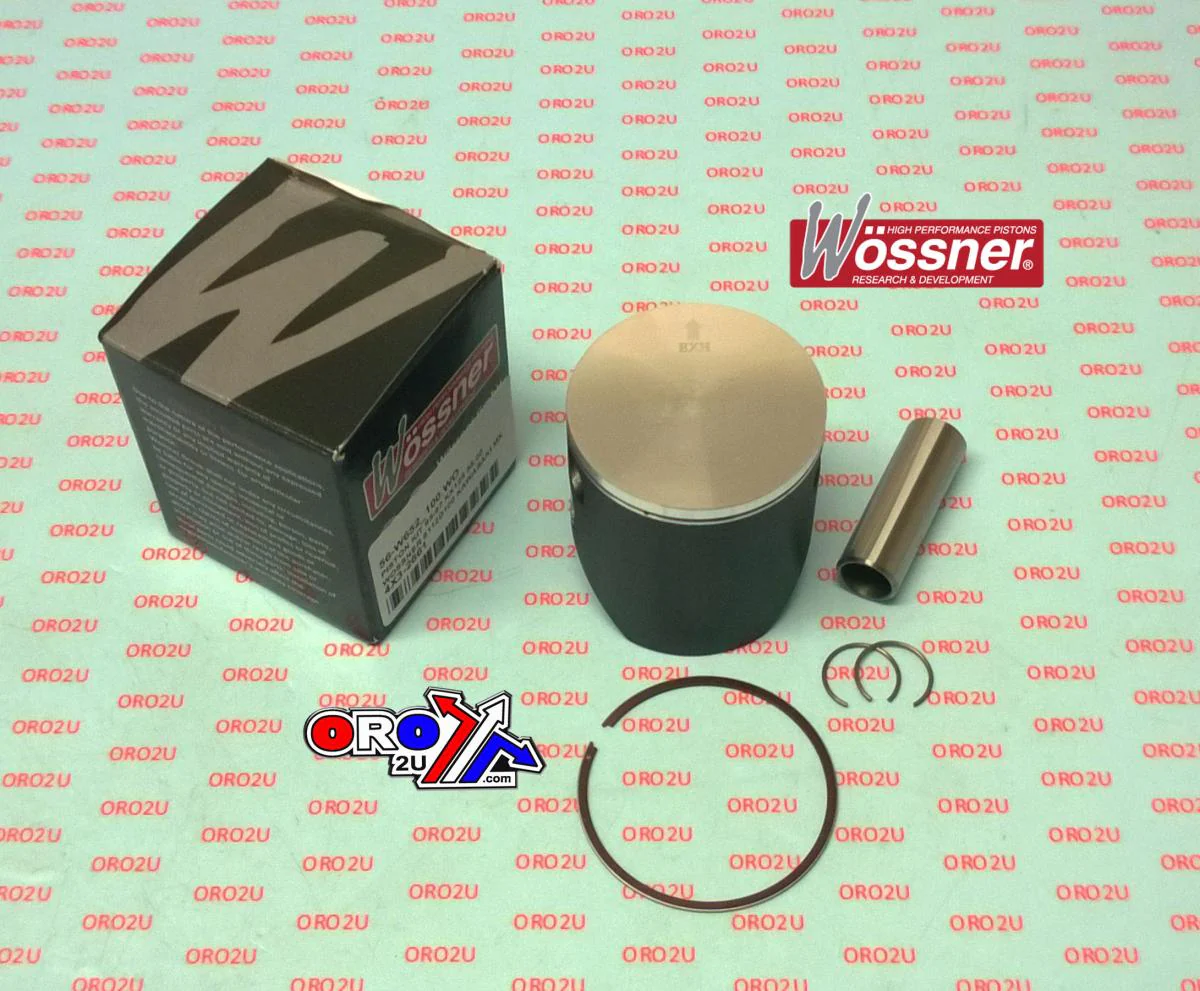

Wossner forged piston kit with a 56.00mm bore (55.94mm actual) is precisely engineered for the Kawasaki KX125 models from 1995 to 1997. Designed to optimise performance under high thermal loads, this German-made piston features an elliptical profile that distributes stress more uniformly during expansion, ensuring durability and preventing piston collapse during operation.
Features
-
Forged piston for high strength and thermal stability
-
Superior heat transfer from combustion chamber to cylinder walls
-
Elliptical design ensures even thrust load distribution
-
Minimises localised pressure and risk of piston failure
-
Precision manufactured in Germany
Specifications
-
Bore Size: 56.00mm (Actual: 55.94mm)
-
Compression Height: 29.50mm
-
Clearance: 0.06mm
-
Stroke: 54.50mm
-
Displacement: 125 cm³
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
Cross-Reference OEM Part Numbers
-
Piston Kit: 8112D200
-
Lock: CW15
-
Pin: WP032
-
Ring Set: RSB5600
-
Rod: 2038
Vehicle Fitments
-
Kawasaki KX125 (1995–1997)
