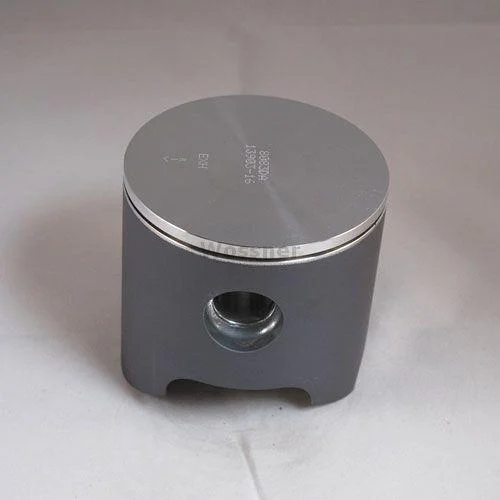

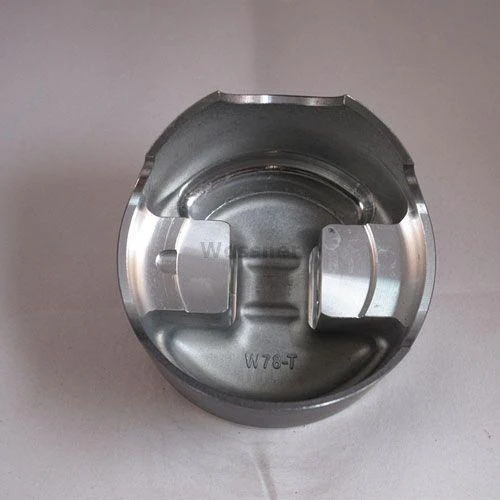

PISTON KIT 96-97 KTM360 78.50, WOSSNER 8083D050 FORGED

Product image 1
Product image 2
Product image 3
Product image 4

PISTON KIT 96-97 KTM360 78.50, WOSSNER 8083D050 FORGED

PISTON KIT 96-97 KTM360 78.50, WOSSNER 8083D050 FORGED

This Wossner piston kit with a 78.50mm bore (+0.50mm oversize, actual size 78.44mm) is designed for KTM 360 modelsā€”EGS, EXC, and SXā€”from 1996 to 1997. Precision-forged in Germany, it ensures high durability, efficient thermal performance, and consistent operation in high-output two-stroke engines.



Features





  • Forged piston provides superior strength and long service life




  • Engineered for optimal combustion heat transfer to the cylinder wall




  • Elliptical design distributes pressure evenly and prevents piston collapse under heat expansion




  • Manufactured in Germany for precision and consistent quality





Specifications





  • Bore size: 78.50 mm




  • Actual piston size: 78.44 mm




  • Display (cmĀ³): 353




  • Stroke (mm): 74.00




  • Clearance (mm): 0.06




  • Compression ratio: 2-stroke (Wossner and OEM)




  • Compression height (mm): 27.00





Vehicle Fitments





  • 1996 KTM EGS 360




  • 1996 KTM EXC 360




  • 1996 KTM SX 360




  • 1997 KTM EGS 360




  • 1997 KTM EXC 360




  • 1997 KTM SX 360

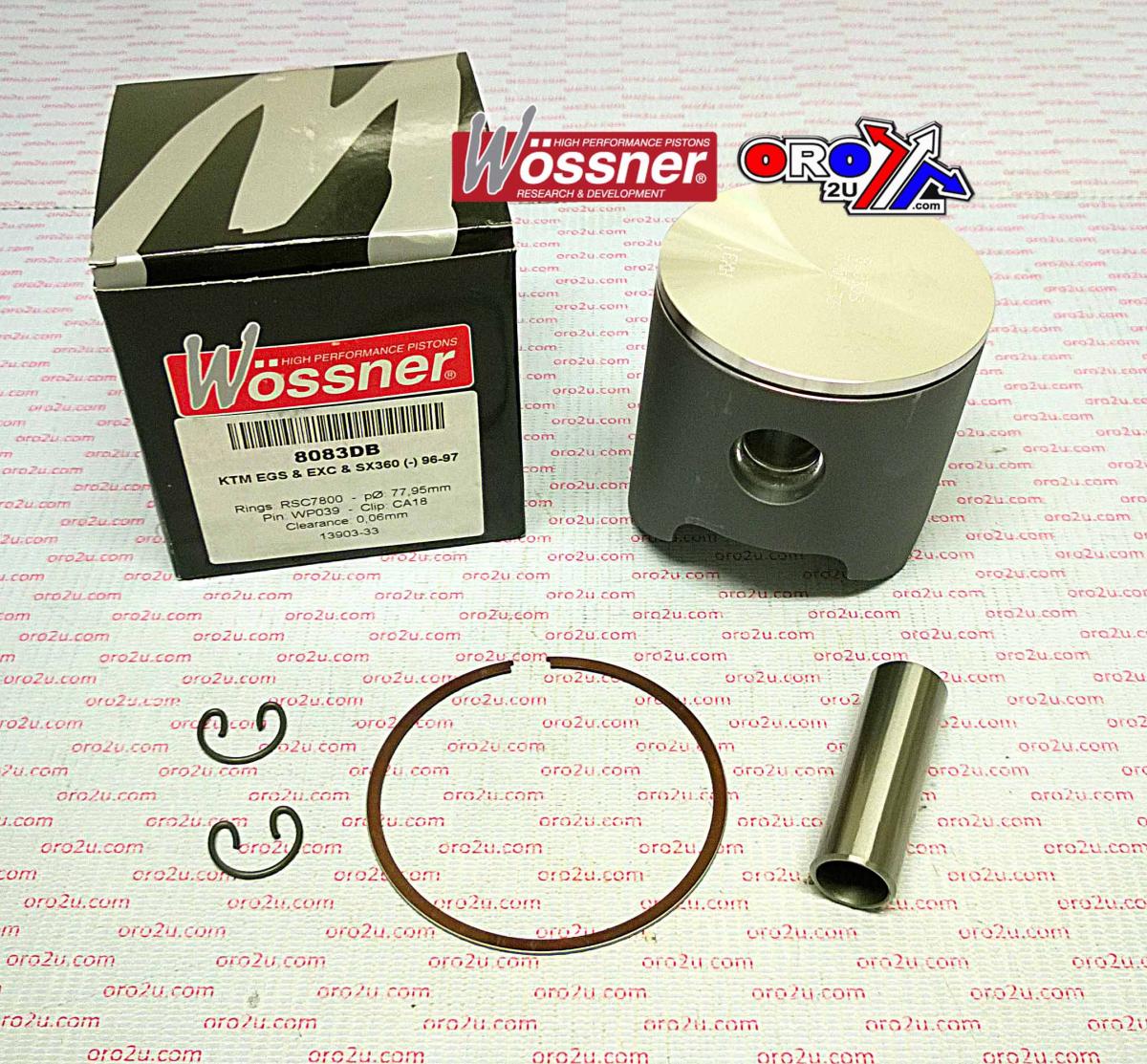

Included Components





  • Piston: Wossner PN# 8083D050




  • Lock: PN# CW18




  • Pin: PN# WP039




  • Ring Set: PN# RSC7850



$125.57

Original: $358.76

-65%
PISTON KIT 96-97 KTM360 78.50, WOSSNER 8083D050 FORGEDā€”

$358.76

$125.57
