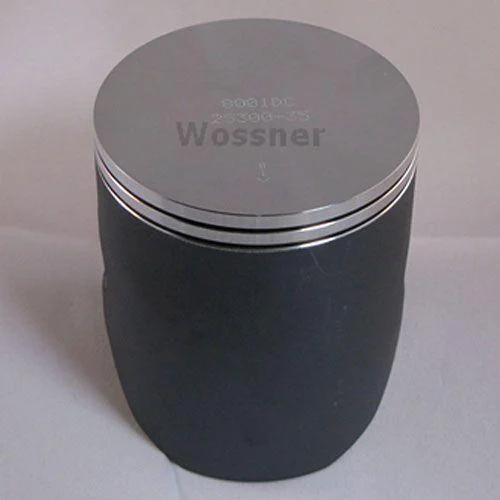

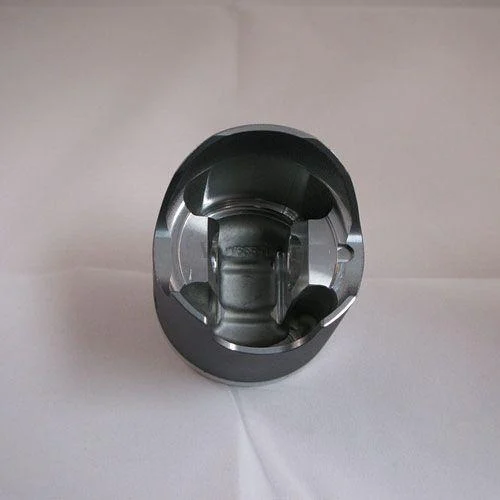

Wossner forged piston kit 8001DC is designed for Honda CR250R models from 1997 to 2001 and features a 67.42 mm bore size with a 66.36 mm actual piston diameter. Manufactured in Germany, it incorporates an elliptical design for optimised load distribution and superior thermal management, ensuring reliable operation in high-performance 2-stroke engines.

Features

•


  Forged piston for enhanced strength and durability





•


  Elliptical profile for uniform load distribution and reduced piston collapse





•


  Efficient heat transfer from combustion chamber to cylinder walls





•


  Precision engineered and made in Germany




Specifications

•


  Bore Size: 67.42 mm





•


  Actual Piston Diameter: 66.36 mm





•


  Display (Displacement): 249 cm³





•


  Stroke: 70.80 mm





•


  Clearance: 0.06 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Dome Volume: Not specified





•


  Compression Height: 35.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8001DC





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640 (x2)




Vehicle Fitments

•


  1997 Honda CR250R





•


  1998 Honda CR250R





•


  1999 Honda CR250R





•


  2000 Honda CR250R





•


  2001 Honda CR250R
