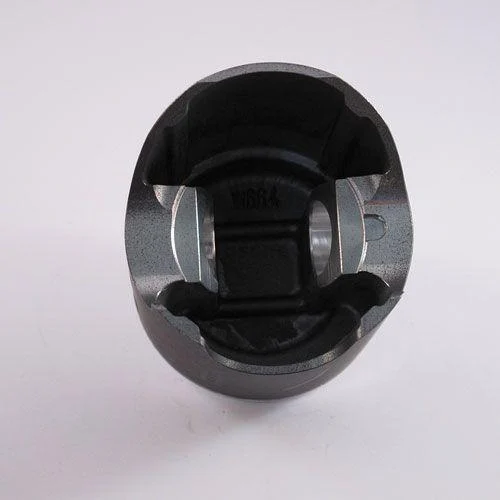

Wossner forged piston kit 8161D060 is a +0.60 oversize piston crafted for Honda CR250R models from 1997 to 2001 with a 1-ring setup. Featuring a 67.00 mm bore and 66.94 mm piston diameter, it combines German engineering and an elliptical design to deliver improved heat dissipation and mechanical load distribution in 2-stroke engines.

Features

•


  Forged piston for high strength and longevity





•


  Elliptical profile ensures even pressure distribution under heat expansion





•


  Improved heat transfer to cylinder walls





•


  Precision-manufactured in Germany




Specifications

•


  Bore Size: 67.00 mm





•


  Actual Piston Diameter: 66.94 mm





•


  Display (Displacement): 290 cm³





•


  Stroke: 72.00 mm





•


  Clearance: 0.06 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 38.00 mm

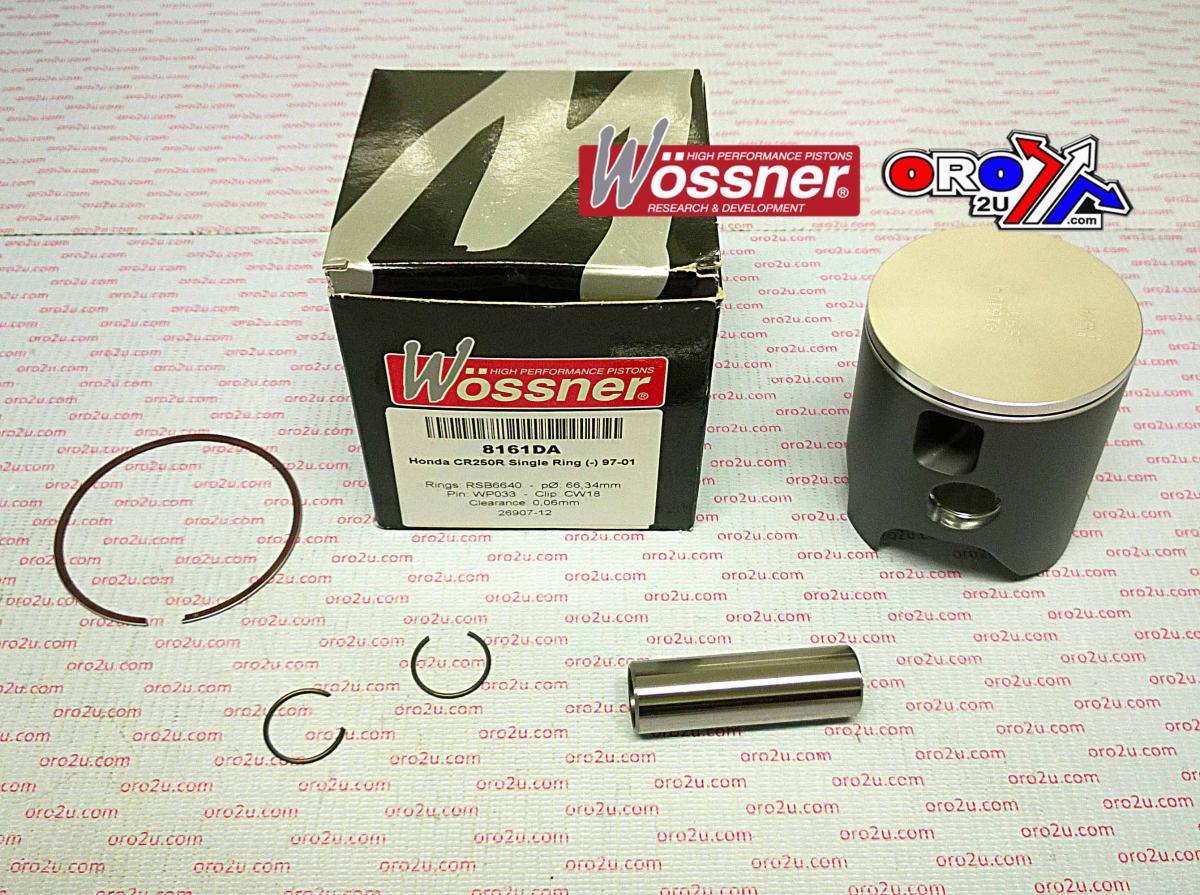

Cross-Reference Component Part Numbers

•


  Piston Kit: 8161D060





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6700





•


  Rod: P2021




Vehicle Fitments

•


  1997 Honda CR250R (1-ring)





•


  1998 Honda CR250R (1-ring)





•


  1999 Honda CR250R (1-ring)





•


  2000 Honda CR250R (1-ring)





•


  2001 Honda CR250R (1-ring)
