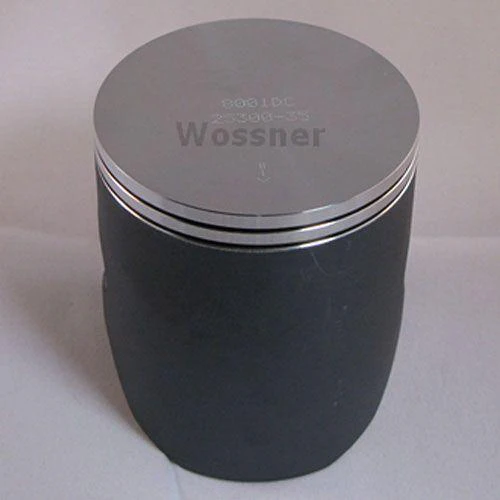

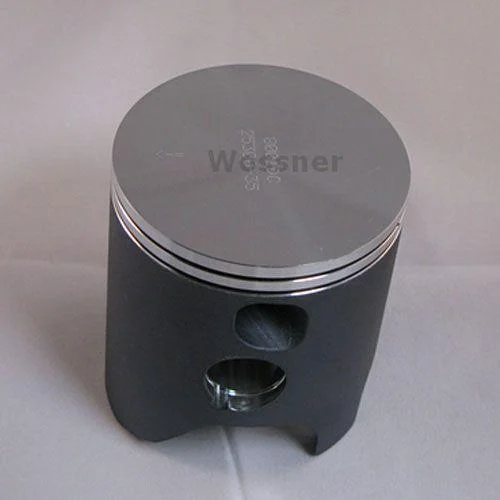

Wossner forged piston kit 8001D060 is built for Honda CR250R models from 1997 to 2001, offering a 67.00 mm bore and 66.64 mm piston diameter in a +0.60 oversize configuration. Precision-forged in Germany, it features an elliptical design to optimise load distribution and heat management for 2-stroke engines, ensuring durability and performance under demanding conditions.

Features

•


  High-strength forged construction for durability





•


  Elliptical shape enhances uniform load bearing under thermal expansion





•


  Improved combustion heat transfer to cylinder walls





•


  Manufactured in Germany for precision and reliability




Specifications

•


  Bore Size: 67.00 mm





•


  Actual Piston Diameter: 66.64 mm





•


  Display (Displacement): 249 cm³





•


  Stroke: 70.80 mm





•


  Clearance: 0.06 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 35.00 mm

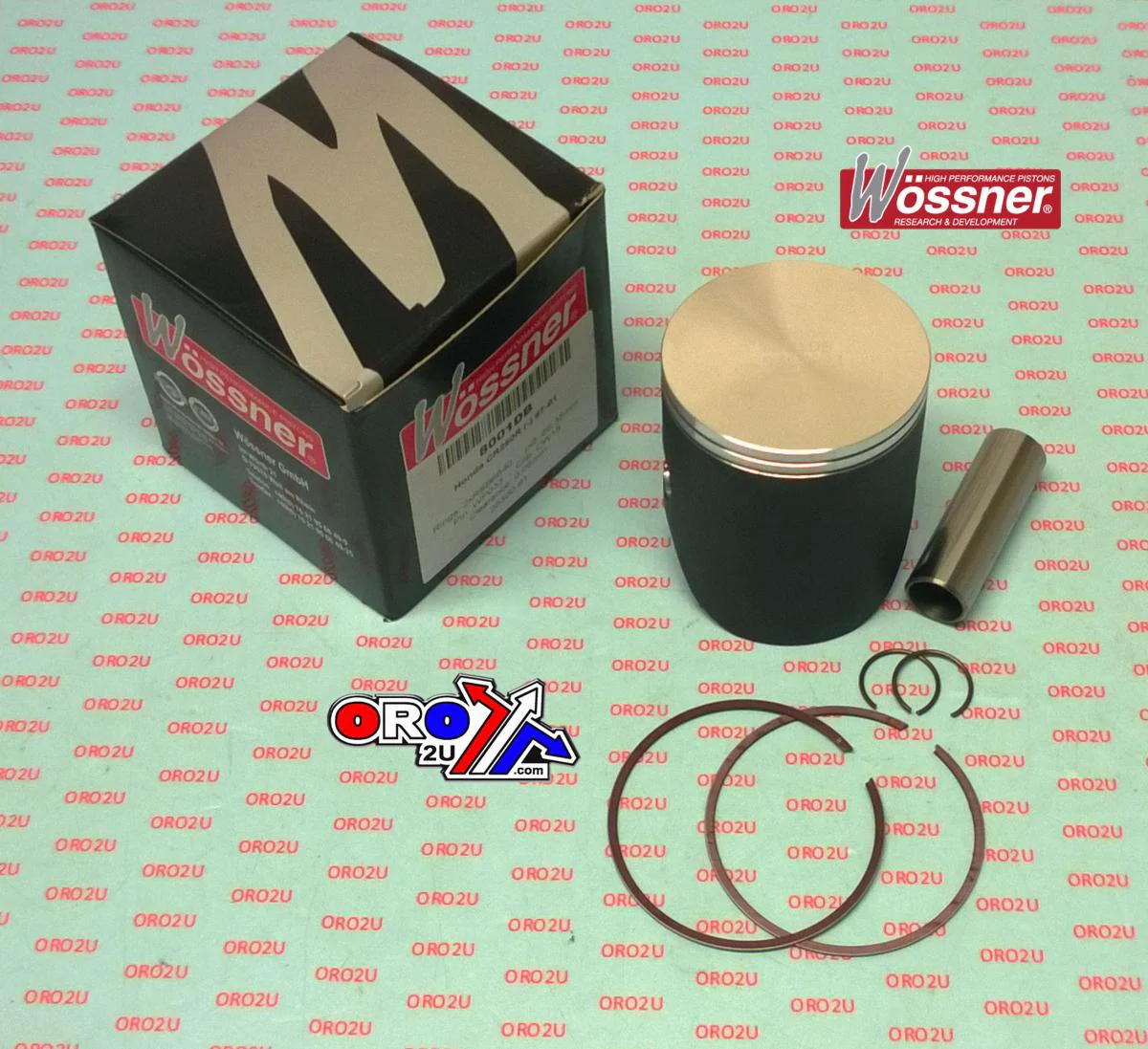

Cross-Reference OEM Part Numbers

•


  Piston Kit: 8001D060





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6700 (x2)





•


  Rod: P2021




Vehicle Fitments

•


  1997 Honda CR250R





•


  1998 Honda CR250R





•


  1999 Honda CR250R





•


  2000 Honda CR250R





•


  2001 Honda CR250R
