PISTON KIT 97-01 CR250 67.50, WOSSNER 8001D110 HONDA MX

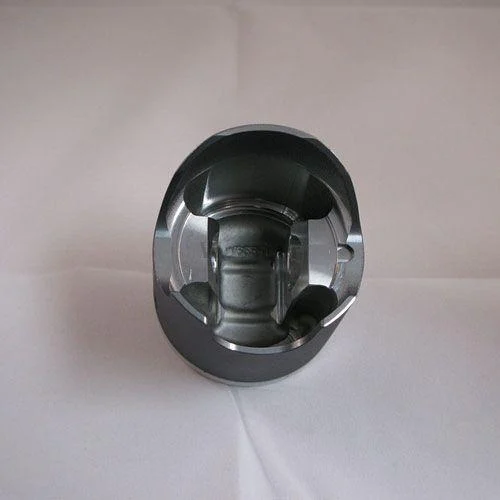

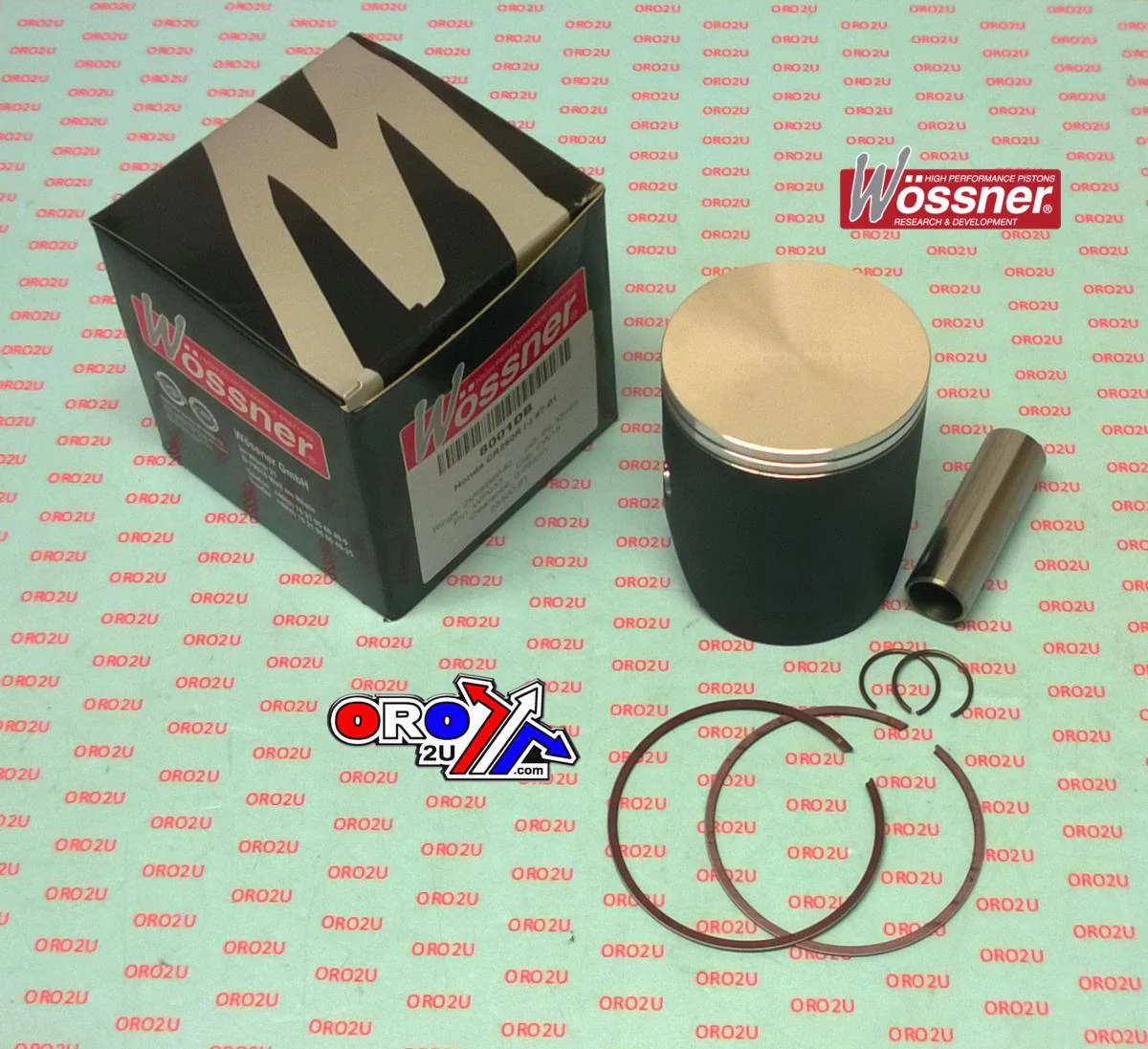

Wossner forged piston kit 8001D110 is a +1.10 oversize option for Honda CR250R models from 1997 to 2001, featuring a 67.50 mm bore and 67.44 mm actual piston diameter. Manufactured in Germany, it incorporates an elliptical piston design that enhances thermal efficiency and distributes mechanical loads evenly, minimising piston collapse risks in 2-stroke engines.
Features
-
Forged piston construction for high strength and performance
-
Elliptical design promotes uniform pressure distribution and thermal expansion handling
-
Enhanced heat transfer from combustion chamber to cylinder walls
-
German engineering ensures precision and quality
Specifications
-
Bore Size: 67.50 mm
-
Actual Piston Diameter: 67.44 mm
-
Display (Displacement): 249 cm³
-
Stroke: 70.80 mm
-
Clearance: 0.06 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
-
Compression Height: 35.00 mm
Cross-Reference OEM Part Numbers
-
Piston Kit: 8001D110
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RDB6750
-
Rod: P2021
Vehicle Fitments
-
1997 Honda CR250R
-
1998 Honda CR250R
-
1999 Honda CR250R
-
2000 Honda CR250R
-
2001 Honda CR250R
