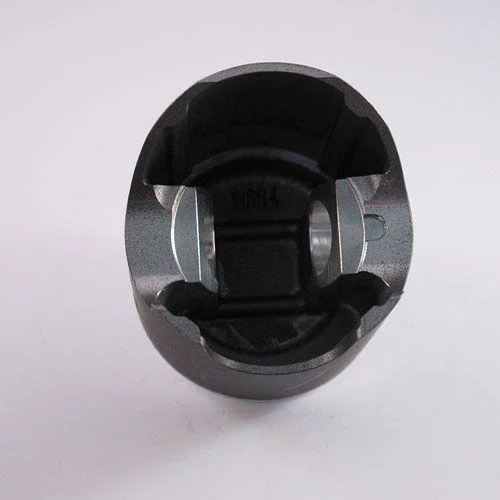

Wossner forged piston kit 8161D160 is a +1.60 oversize piston specifically designed for 1-ring Honda CR250R models from 1997 to 2001. With a 68.00 mm bore and 67.94 mm actual piston diameter, this German-manufactured piston incorporates a precision elliptical design for improved heat transfer and load distribution, enhancing durability and engine reliability in 2-stroke applications.

Features

•


  High-strength forged construction for extended performance





•


  Elliptical design optimises load distribution and prevents piston collapse





•


  Efficient combustion heat dissipation to cylinder walls





•


  Manufactured in Germany with strict tolerances




Specifications

•


  Bore Size: 68.00 mm





•


  Actual Piston Diameter: 67.94 mm





•


  Display (Displacement): 290 cm³





•


  Stroke: 72.00 mm





•


  Clearance: 0.06 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 38.00 mm




Cross-Reference Component Part Numbers

•


  Piston Kit: 8161D160





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6800





•


  Rod: P2021




Vehicle Fitments

•


  1997 Honda CR250R (1-ring)





•


  1998 Honda CR250R (1-ring)





•


  1999 Honda CR250R (1-ring)





•


  2000 Honda CR250R (1-ring)





•


  2001 Honda CR250R (1-ring)
