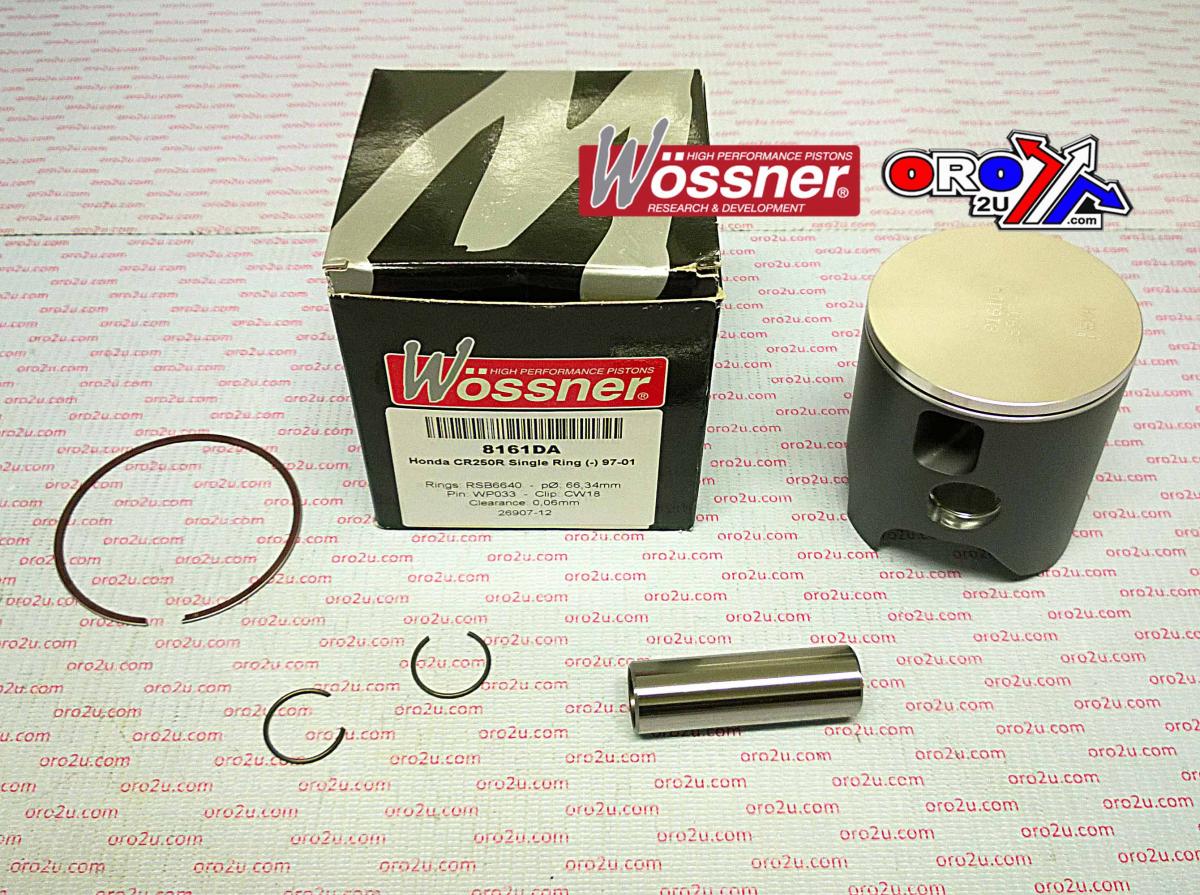

PISTON KIT 97-01 CR250 68.50, 1-RING WOSSNER 8161D210
Wossner forged piston kit 8161D210 is a +2.10 oversize option for Honda CR250R models from 1997 to 2001 with a 1-ring configuration. It features a 68.50 mm bore and 68.44 mm actual piston diameter. Designed and manufactured in Germany, it incorporates Wossnerās elliptical geometry to ensure even pressure distribution and efficient thermal management in high-performance 2-stroke engines.
Features
-
Forged piston for enhanced strength and wear resistance
-
Elliptical design promotes uniform load distribution and reduces localised stress
-
Superior heat transfer properties for efficient combustion chamber cooling
-
Made in Germany with high precision
Specifications
-
Bore Size: 68.50 mm
-
Actual Piston Diameter: 68.44 mm
-
Display (Displacement): 290 cmĀ³
-
Stroke: 72.00 mm
-
Clearance: 0.06 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
-
Compression Height: 38.00 mm
Cross-Reference Component Part Numbers
-
Piston Kit: 8161D210
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RSB6850
-
Rod: P2021
Vehicle Fitments
-
1997 Honda CR250R (1-ring)
-
1998 Honda CR250R (1-ring)
-
1999 Honda CR250R (1-ring)
-
2000 Honda CR250R (1-ring)
-
2001 Honda CR250R (1-ring)
